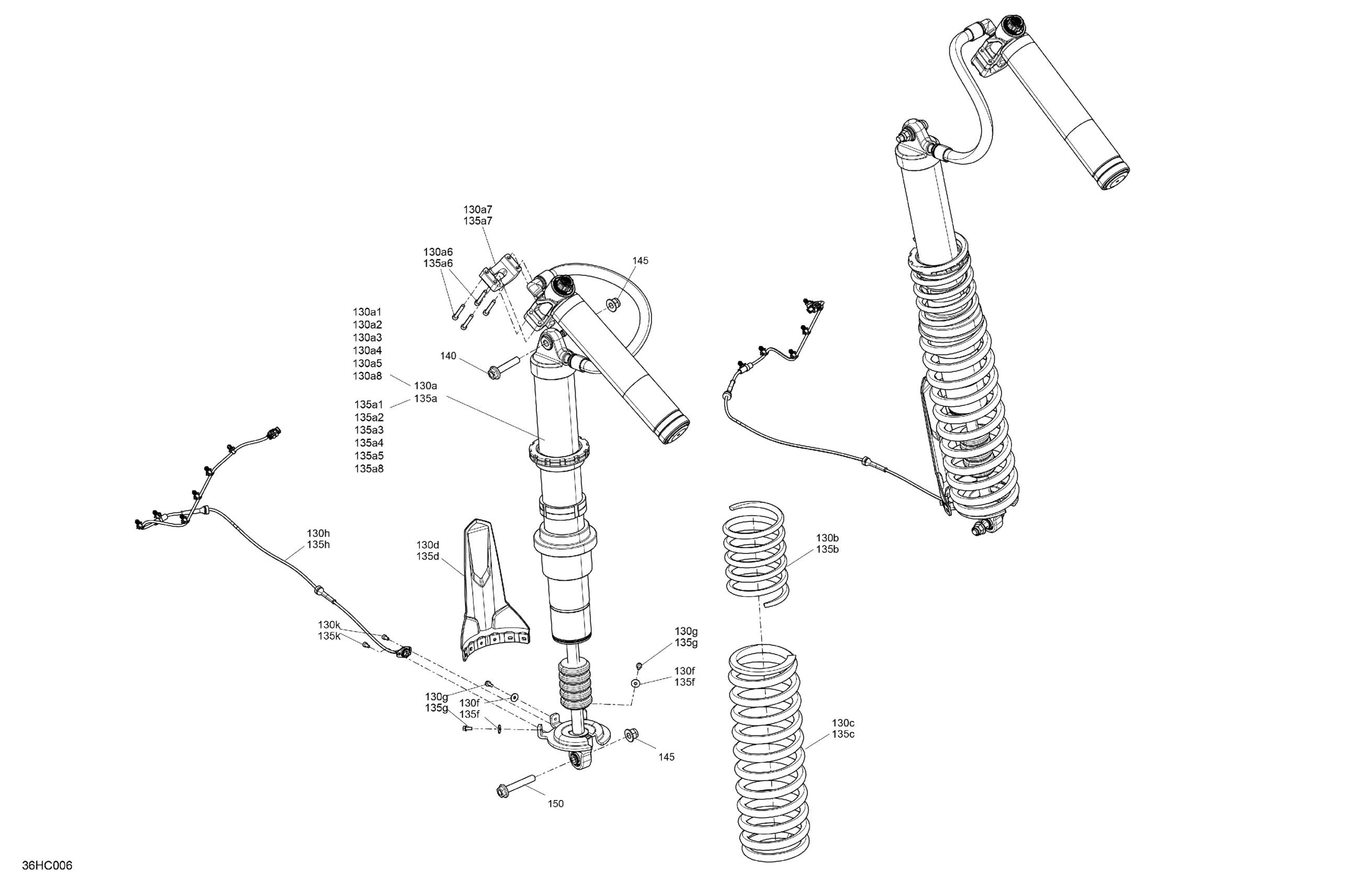

Can-Am Maverick Turbo RR - XRS Smart Shock - 2023 Suspension - Rear Shocks Diagram

#

Description
Price

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706004751

$1,779.99

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130a6

Screw M6 X 35

715900521

$4.72

130a7

Réservoir Clamp

715900522

$34.30

130a8

Connector Support

706203583

$11.84

130b

Deep Black, Compression Spring

706005120

$115.64

130b

Northern Lichen, Compression Spring

706005121

$115.64

130b

Chalk, Compression Spring

706005122

$110.42

130c

Deep Black, Compression Spring

706005129

$134.30

130c

Chalk, Compression Spring

706005130

$139.52

130c

Northern Lichen, Compression Spring

706005131

$139.52

130d

Protector

706202215

$8.66

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

130h

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

130k

Socket Head Screw M5 X 10

205551060

$1.30

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706004751

$1,779.99

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135a6

Screw M6 X 35

715900521

$4.72

135a7

Réservoir Clamp

715900522

$34.30

135a8

Connector Support

706203583

$11.84

135b

Deep Black, Compression Spring

706005120

$115.64

135b

Northern Lichen, Compression Spring

706005121

$115.64

135b

Chalk, Compression Spring

706005122

$110.42

135c

Deep Black, Compression Spring

706005129

$134.30

135c

Chalk, Compression Spring

706005130

$139.52

135c

Northern Lichen, Compression Spring

706005131

$139.52

135d

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

135h

Rear Suspension Wiring Harness Ass'y

710006389

$205.94

135k

Socket Head Screw M5 X 10

205551060

$1.30

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
