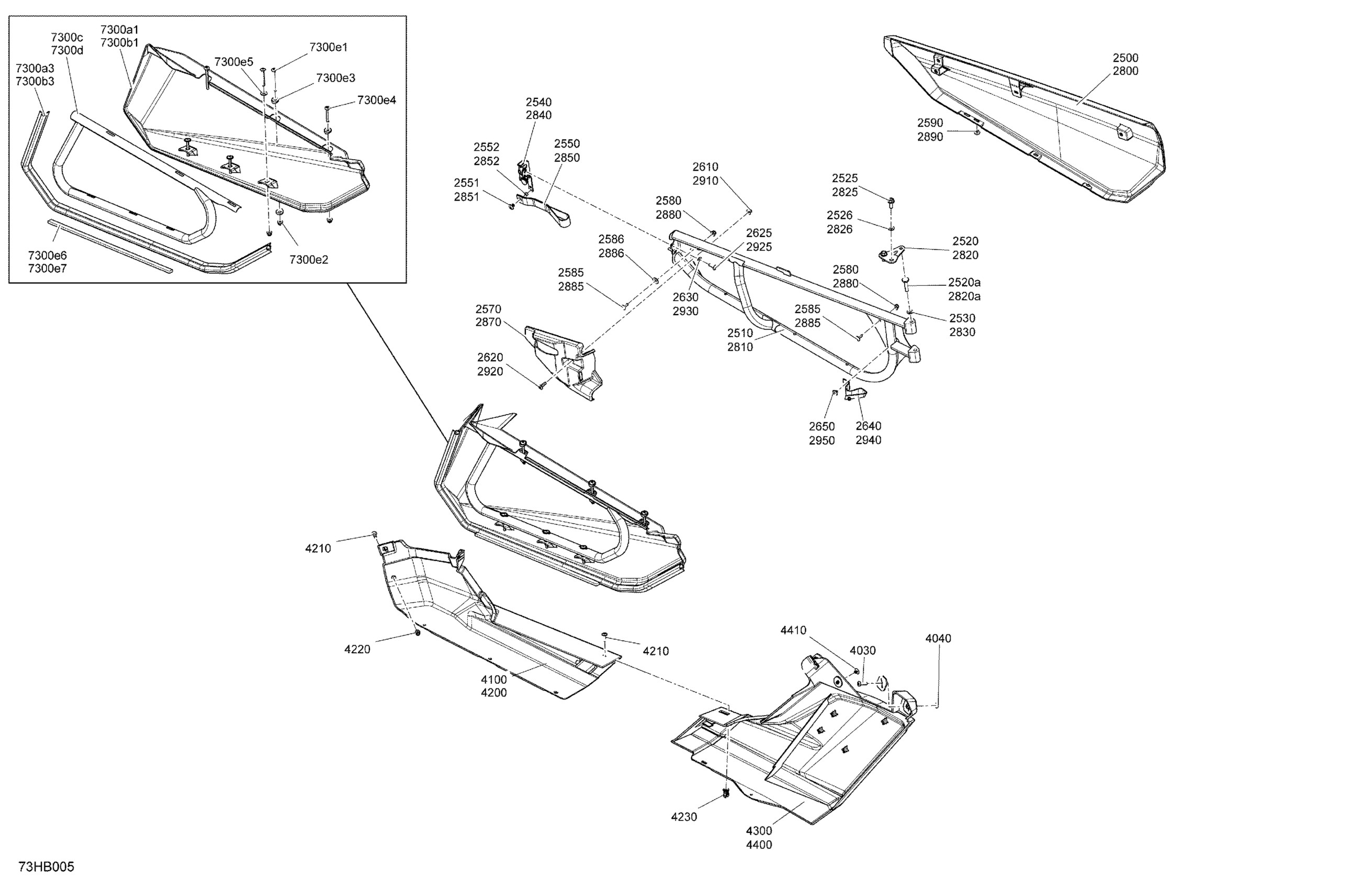

Can-Am Maverick Turbo RR - XMR - 2022 Body - Doors Diagram

#

Description
Price

2500

Liquid Titan, LH Front Door Panel

705016361

$214.99

2510

Deep Black, LH Front Door

705018468

$159.99

2510

Liquid Titan, LH Front Door

705018344

Unavailable

2520

Door Support

705011187

$12.99

2520a

Weld Pin 8mm X 40mm

250000913

$2.00

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Pop Rivet 3/16"

293150103

$0.55

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Pop Rivet 3/16"

293150103

$0.55

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Screw M6 X 20

250000722

$1.68

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Pop Rivet 3/16"

293150103

$0.55

2800

Liquid Titan, RH Front Door Panel

705016349

$214.99

2810

Deep Black, RH Front Door

705018470

$159.99

2810

Liquid Titan, RH Front Door

705018345

Unavailable

2820

Door Support

705011187

$12.99

2820a

Weld Pin 8mm X 40mm

250000913

$2.00

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Pop Rivet 3/16"

293150103

$0.55

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Pop Rivet 3/16"

293150103

$0.55

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Screw M6 X 20

250000722

$1.68

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Pop Rivet 3/16"

293150103

$0.55

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

LH Central Lateral Panel

705009513

$67.99

4200

Deep Black, RH Central Body Panel

705017555

$73.99

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

LH Rear Lateral Panel

705010676

$119.99

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7300a1

LH Door Panels

705010271

$110.99

7300a2

LH Lower Door Decal

704907650

$24.49

7300a3

Door Seal

705012018

$19.99

7300b1

RH Door Panels

705010272

$110.99

7300b2

RH Lower Door Decal

704907651

$24.49

7300b3

Door Seal

705012018

$19.99

7300c

Black, LH Door Frame

705012750

$129.99

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$129.99

7300e1

Torx-Truss M/S M6 X 80

250000902

$2.79

7300e2

Hex. Flange Elastic Nut M6

233261494

$1.58

7300e3

Offset Washer

705202223

$4.14

7300e4

Torx Truss Screw M6 X 50

250000749

$3.17

7300e5

Stainless Steel Flat Washer

234062670

$2.11

7300e6

Neoprene Seal (1PAC=3M)

219704364

$27.49

7300e7

Neoprene Seal (1PAC=3M)

219704364

$27.49
