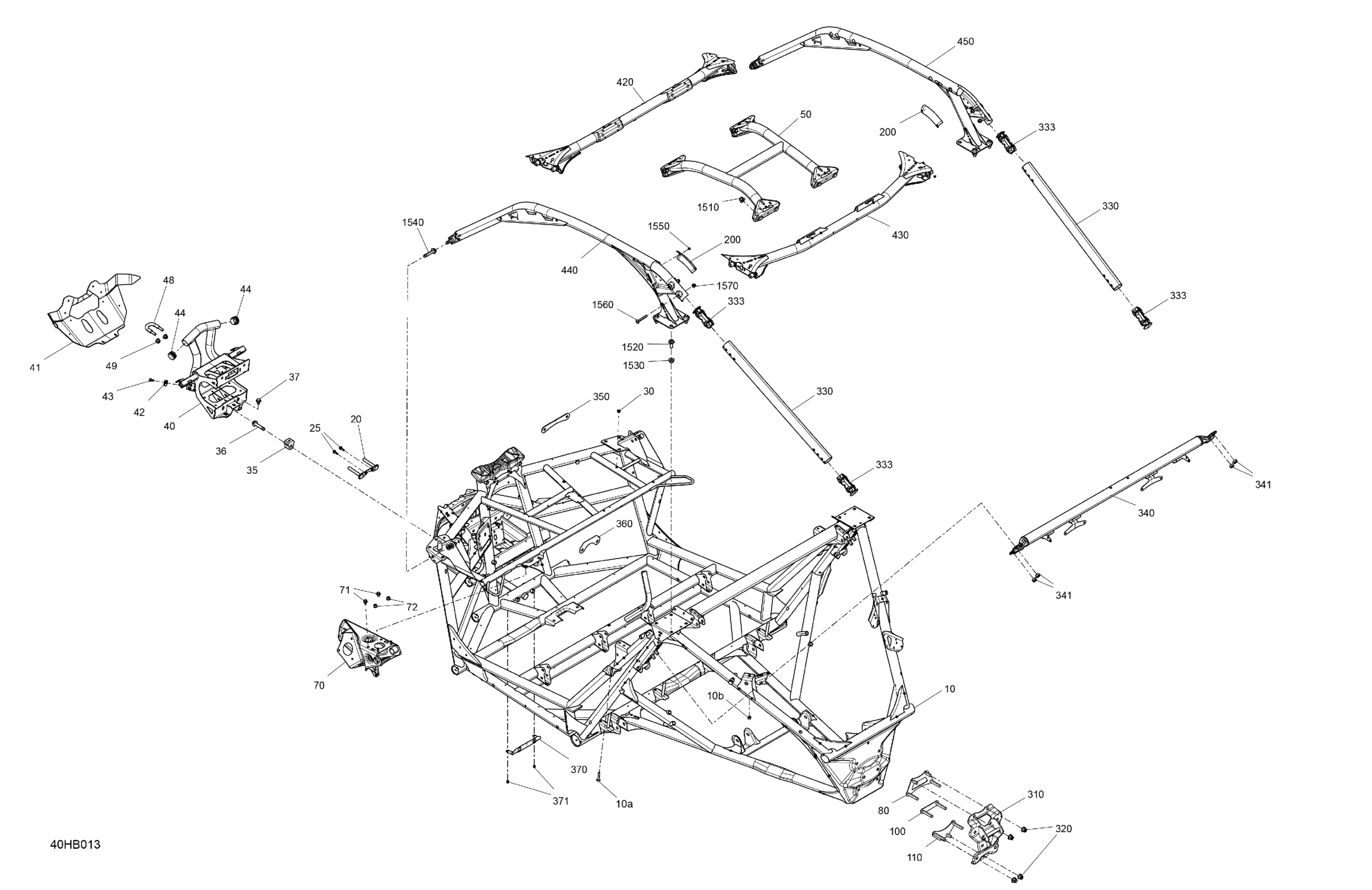

Can-Am Maverick Turbo RR - XMR - 2022 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit

715009098

$3,459.99

10

Liquid Titan, Frame Kit | Model 72po Width

715008477

$3,459.99

10a

Weld Pin 8mm X 40mm

250000913

$1.61

10b

Nut M6

250100059

$1.60

20

Front Plate

705207424

$18.43

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

35

Bumper Link

705206992

$15.22

36

Flange Screw M12 X 60

250000857

$6.08

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

40

Front Bumper Kit | Model Width 72 in.

715007603

$359.97

41

Front Master Plate

715006996

$198.43

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Torx Screw M6 X 20

250000722

$1.34

44

Cap

705202455

$4.62

48

U-Clamp

705206983

$36.89

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50

Liquid Titan, Reinforcement Cage | Includes 50 to 50a1j

705209864

$91.99

50

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

80

Rear Upper Plate

705211557

$17.66

100

Rear Central Plate

705211558

$17.66

110

Rear Lower Plate

705211556

$16.89

200

Black, LH Link Plate | Except Model Gold

705205926

$23.82

200

Liquid Titan, Connecting Plate

705209866

$25.35

310

Junction Plate Kit

715008492

$41.51

320

Elastic Flange Nut M12

250001195

$2.15

330

Liquid Titan, Rear Pillar

705209861

$24.99

330

Deep Black, Rear Pillar

705210066

$24.99

333

Sleeve

705210648

$9.29

340

Safety Belt Anchorage

705210001

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Connecting Plate

705211552

$4.95

360

Retaining Plate

705210249

$4.86

370

Support

706203122

$11.00

371

Pop Rivet 3/16"

390402200

$0.26

420

Liquid Titan, Front Cross Member | Includes 420 to 420a1j

705209868

$204.99

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

430

Liquid Titan, Rear Cross Member | Includes 430 to 430a1h

705209870

$204.99

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

440

Black, LH Cage Kit

715008442

$399.99

440

Liquid Titan, LH Cage Kit

715008446

$399.99

450

Black, RH Cage Kit

715008456

$399.99

450

Liquid Titan, RH Cage Kit

715008460

$399.99

1510

Elastic Flange Nut M12

250001195

$2.15

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

1530

Elastic Flange Nut M12

250001195

$2.15

1540

Flange Screw M12 X 60

250000857

$6.08

1550

Rivet 3/16"

293150102

$0.71

1560

Torx Truss M8 X 65

250000901

$1.56

1570

Elastic Flange Nut M8

250100025

$1.25
