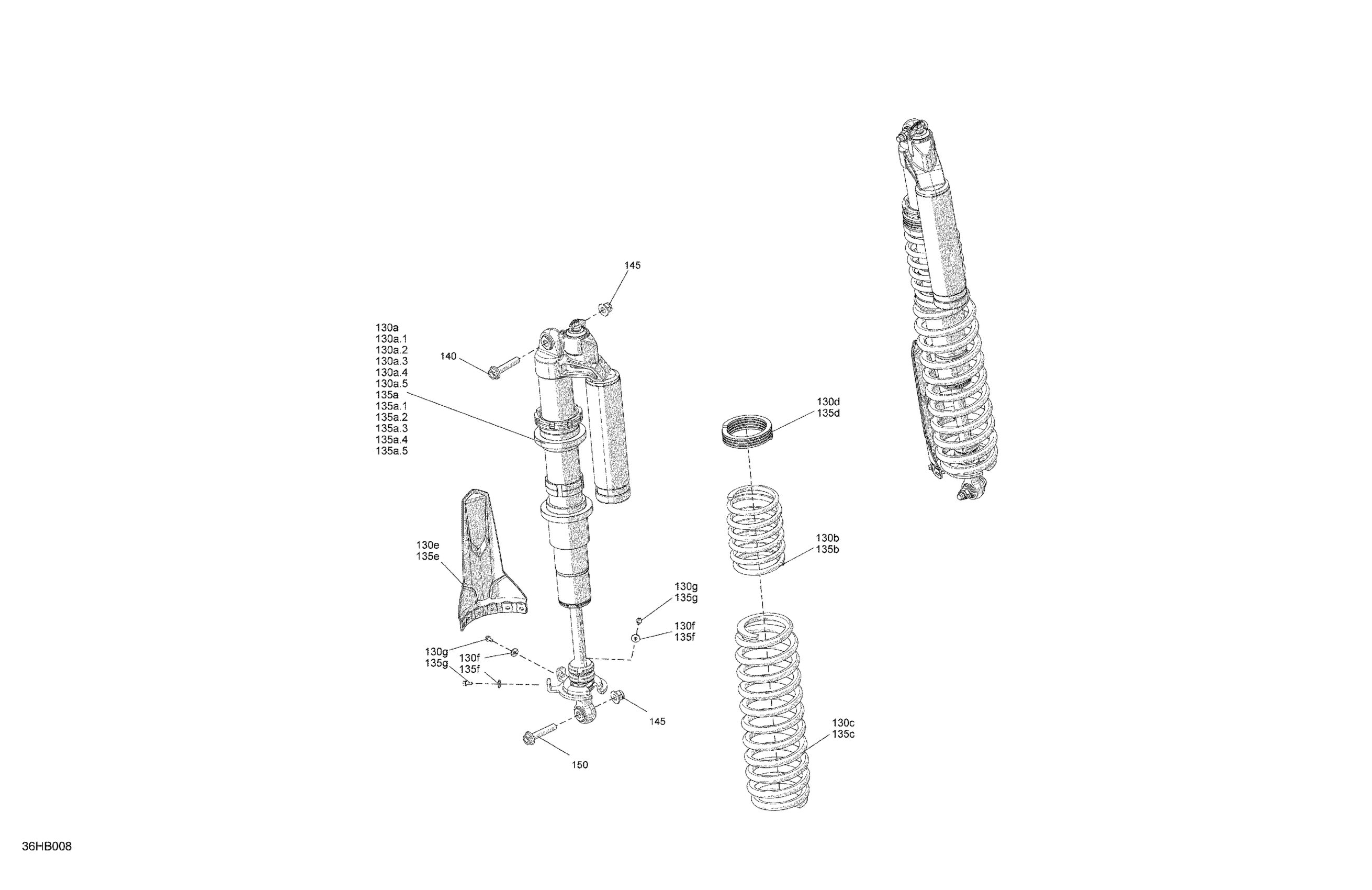

Can-Am Maverick Turbo RR - XMR - 2022 Suspension - Rear Shocks - 64 Inches Width Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$933.05

130a.1

Spherical Bearing

715900337

$80.74

130a.2

Ball Joint

706004078

$45.12

130a.3

O-Ring Bushing

715900338

$10.98

130a.4

Circlip

715900480

$11.06

130a.5

Reducer

715900481

$27.66

130b

Magma Red, Rear Compression Spring

706004484

$92.28

130c

Magma Red, Rear Compression Spring

706004485

$138.43

130d

Magma Red, Rear Compression Spring

706004486

$69.20

130e

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Adjustable Shock Absorber

706004809

$923.05

135a.1

Spherical Bearing

715900337

$80.74

135a.2

Ball Joint

706004078

$45.12

135a.3

O-Ring Bushing

715900338

$10.98

135a.4

Circlip

715900480

$11.06

135a.5

Reducer

715900481

$27.66

135b

Magma Red, Rear Compression Spring

706004484

$92.28

135c

Magma Red, Rear Compression Spring

706004485

$138.43

135d

Magma Red, Rear Compression Spring

706004486

$69.20

135e

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
