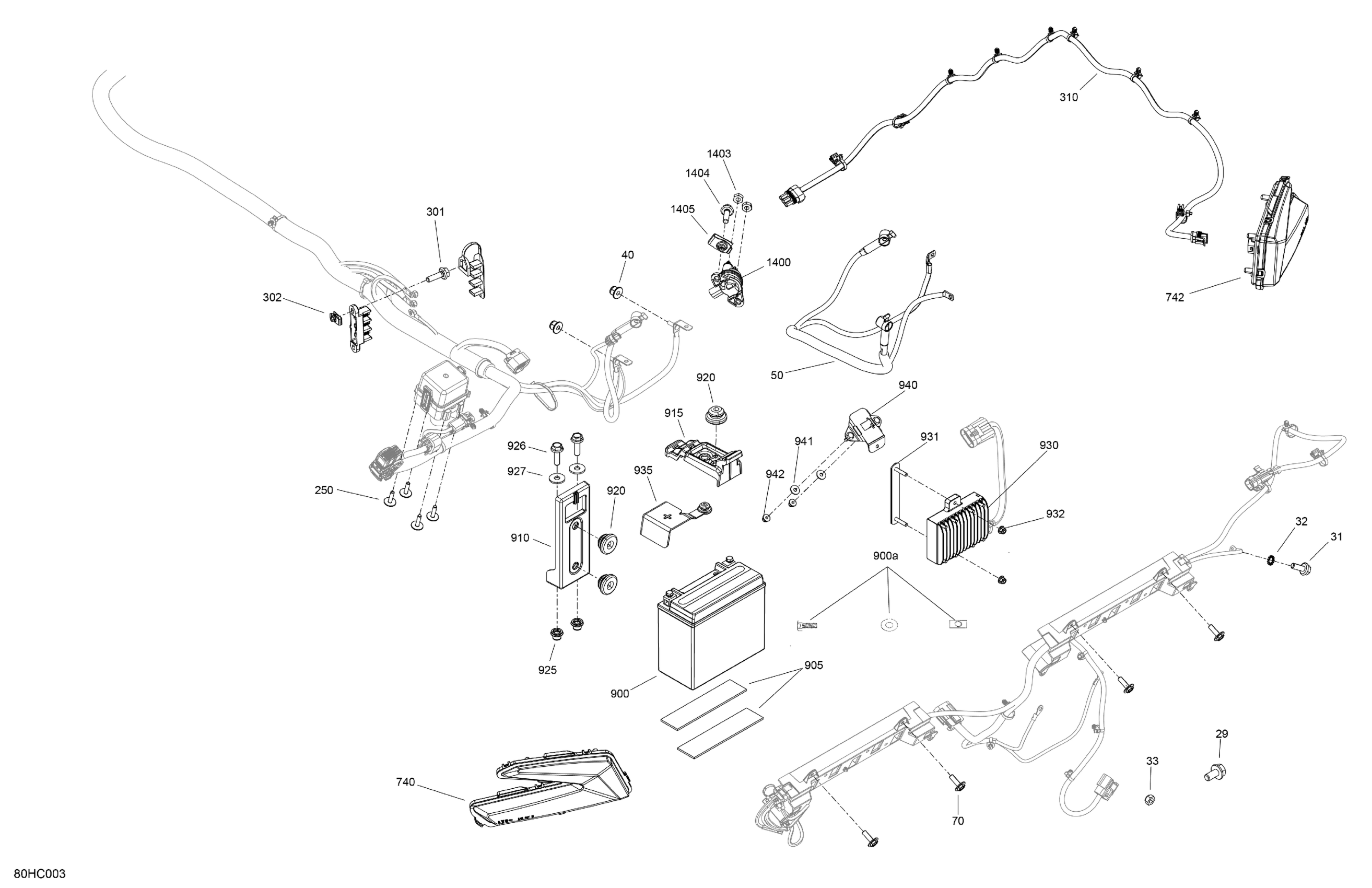

Can-Am Maverick Turbo RR - XRC - 2023 Electric - Rear Section Diagram

#

Description
Price

29

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

32

External Serrated Lock Washer 6 mm

234461608

$0.92

33

Elastic Stop Nut M6, Brass

232561200

$3.51

40

Elastic Stop Nut M6, Brass

232561200

$3.51

50

Starter Wiring Harness

710007440

$64.15

70

Screw PT Type K-50 X 16

250000959

$1.74

250

Screw M4 X 16

250000725

$2.87

301

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

302

Panel Nut M6 X 1.0

250100198

$1.73

310

Rear Wiring Harness

710006424

$24.60

740

LH Tail Light

710004743

$120.12

742

RH Tail Light

710004744

$120.12

900

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$126.07

900a

Battery Bolt Kit

250000282

$2.95

901

Washer | Not Shown

710009082

$0.99

903

Screw | Not Shown

710009084

$1.48

905

Rubber Pad

293830126

$11.01

910

Fixation Plate

710004788

$9.48

915

Fixation Plate

710004789

$6.72

920

Stopper Rubber

705014429

$6.09

925

Insert Half Hex Body M6 x 1.0

250100199

$2.54

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710006824

$569.99

931

Voltage Regulator Support

710009505

$10.33

932

Hex. Flange Elastic Nut M6

233261494

$1.26

935

Battery Cable Cap

710006471

$2.59

940

Cable Support

710009507

$8.84

941

Stainless Steel Flat Washer

234062670

$1.74

942

Hex. Flange Elastic Nut M6

233261494

$1.26

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1405

Panel Nut M6 X 1.0

250100198

$1.73
