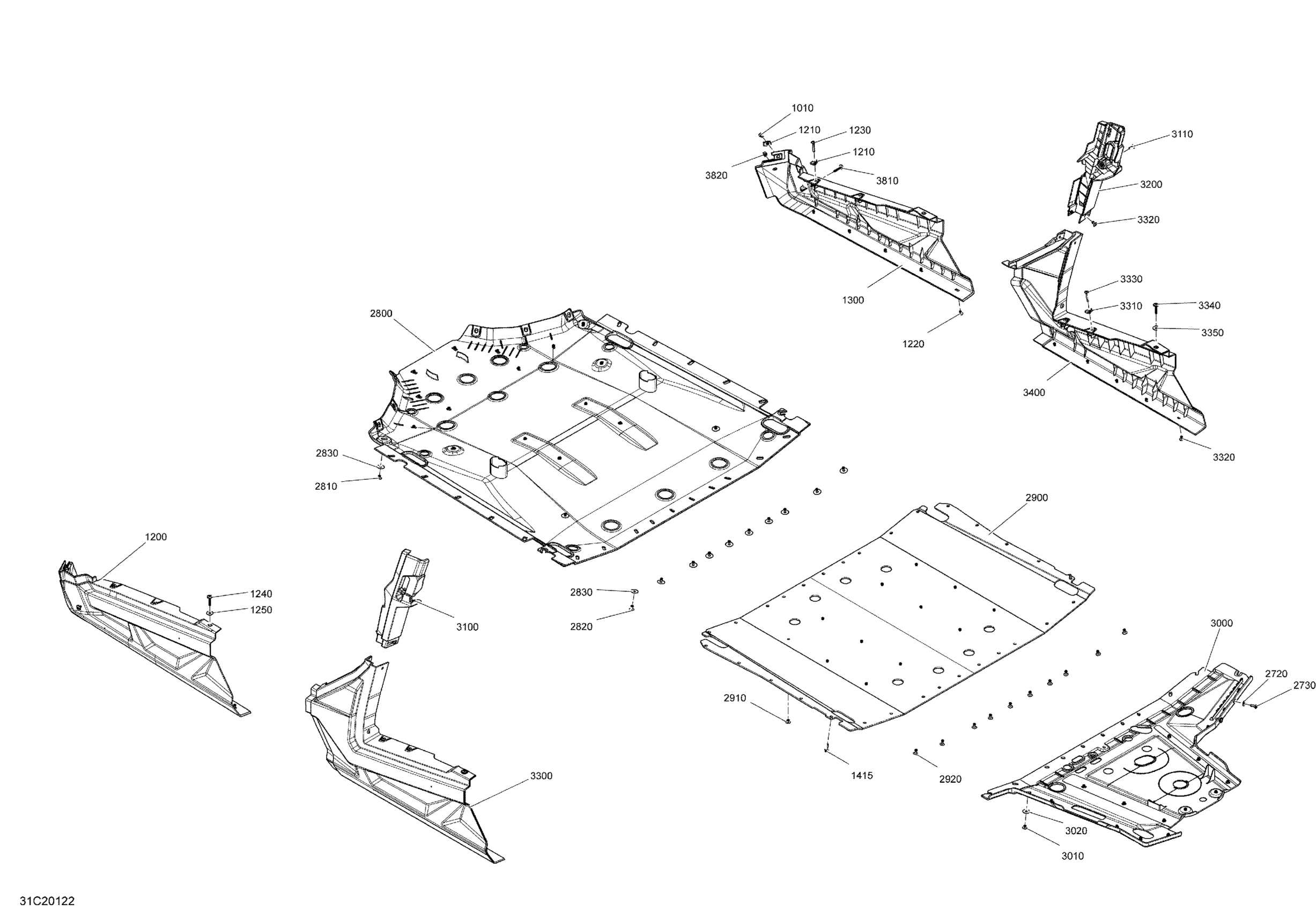

Can-Am Maverick Sport MAX 1000R - 2020 Body - Middle Section - Red Diagram

Description

Price

1010

Torx Screw M6 X 20

250000712

$1.74

1200

LH Rocker Panel

705011331

$78.43

1210

Panel Nut M6 X 1.0

250100198

$1.73

1220

Pop Rivet 3/16”

293150101

$2.06

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

1250

Flat Washer M6.6 X 22

250200162

$1.91

1300

RH Front Rocker Panel

705016939

$78.43

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2800

Front Skid Plate

705014696

$199.97

2810

Pop Rivet 3/16”

293150087

$0.92

2820

Pop Rivet 3/16”

293150087

$0.92

2830

Washer

250200191

$1.76

2900

Central Skid Plate

705011428

$290.74

2910

Pop Rivet 3/16”

293150087

$0.92

2920

Pop Rivet 3/16”

293150087

$0.92

3000

Rear Skid Plate

705014697

$96.89

3010

Pop Rivet 3/16”

293150087

$0.92

3020

Washer

250200191

$1.76

3100

LH Median Side Panel

705011430

$106.12

3110

Torx Screw M6 X 20

250000722

$1.34

3200

RH Median Side Panel

705011431

$106.12

3300

LH Rear Rocker Panel

705013190

$87.66

3310

Panel Nut M6 X 1.0

250100198

$1.73

3320

Pop Rivet 3/16”

293150108

$1.23

3330

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

3340

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

3350

Flat Washer M6.6 X 22

250200162

$1.91

3400

RH Rear Rocker Panel

705013191

$87.66

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

3820

Tuflok Plastic Rivet

293150230

$1.21
