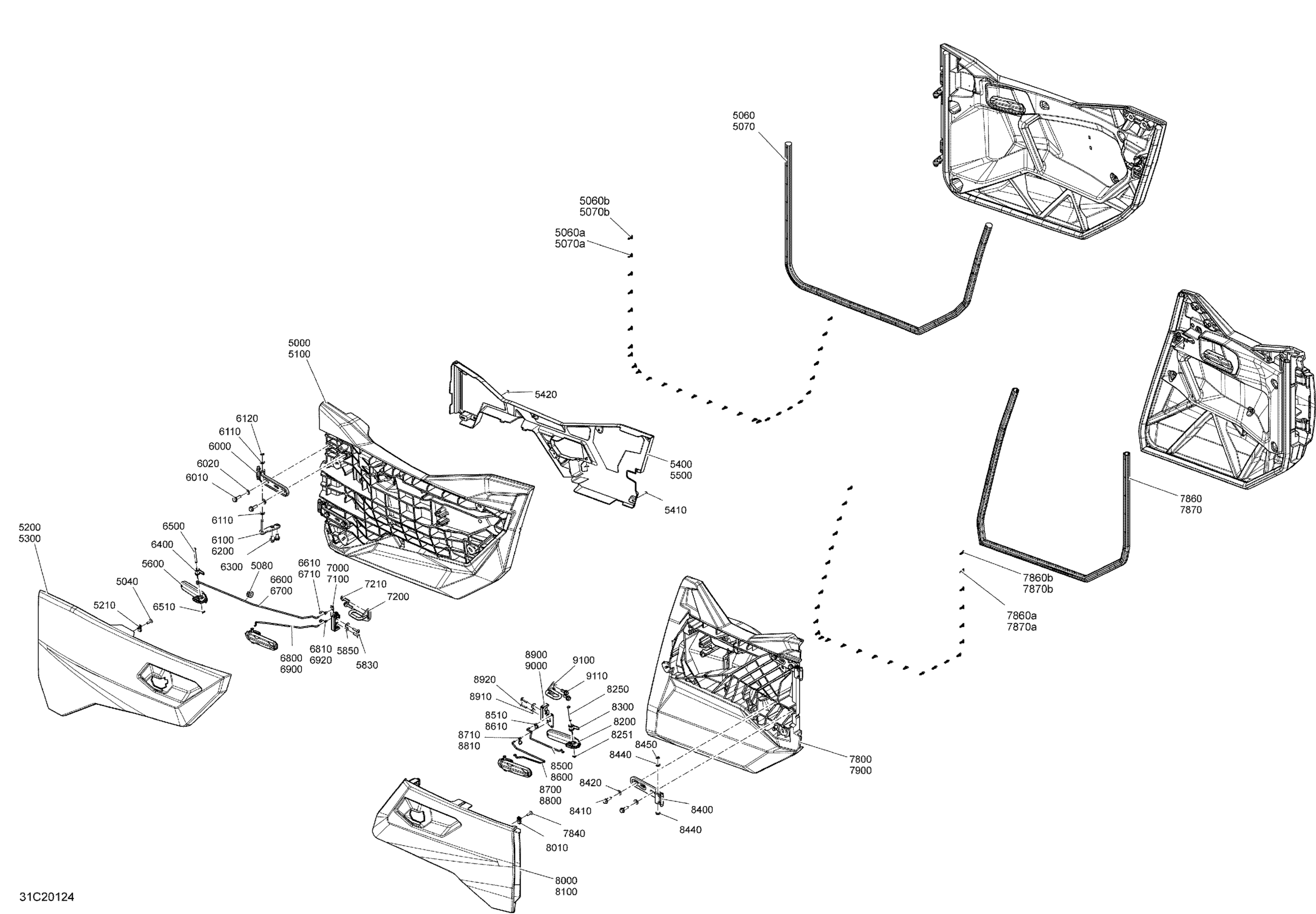

Can-Am Maverick Sport MAX 1000R - 2020 Body - Door Section - Red Diagram

#

Description
Price

5000

LH Front Door Panel

705012982

$302.28

5040

Torx Screw M6 X 20

250000722

$1.34

5060

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$41.51

5060a

Natural Color, Dart

293730081

$2.75

5060b

Red, Dart

293730082

$2.75

5070

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$41.51

5070a

Natural Color, Dart

293730081

$2.75

5070b

Red, Dart

293730082

$2.75

5080

Grommet

293720104

$4.15

5100

RH Front Door Panel

705012983

$302.28

5200

Can-Am Red, LH Door Trim Panel | Red

705013440

$232.28

5210

Panel Nut M6 X 1.0

250100198

$1.73

5300

Can-Am Red, RH Door Trim Panel | Red

705013441

$232.28

5400

LH Inner Door Panel Ass'y

715005003

$101.51

5410

Torx Screw K50 X 16

250000720

$1.39

5420

Torx Screw K50 X 16

250000720

$1.39

5500

RH Door Panel Ass'y

715006765

$101.51

5600

Door Handle

705017152

$13.52

5830

Torx Truss Screw M6 X 25

250000807

$1.74

5850

Stainless Steel Flat Washer

234062670

$1.74

6000

Hinge

705013228

$27.66

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

6020

Washer

503192494

$3.11

6100

Lower Hinge Ajustement

705011629

$12.31

6110

Flat Washer 8 mm, Nylon

234081100

$1.00

6120

Circlip | RS STD

705601030

$4.12

6200

Upper Hinge Ajustement

705012506

$12.31

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

6400

Handle Spring

705013062

$13.83

6500

Handle Axle

705207440

$11.54

6510

External Retaining Ring

705601875

$4.06

6600

LH Upper Locking Rod

705207146

$8.46

6610

RH Tie Rod Clip

708300202

$2.31

6700

RH Upper Locking Rod

705207147

$8.46

6710

LH Tie Rod Clip

708300182

$2.31

6800

LH Lower Locking Rod

705207150

$3.98

6810

RH Tie Rod Clip

708300202

$2.31

6900

RH Lower Locking Rod

705207151

$3.98

6920

LH Tie Rod Clip

708300182

$2.31

7000

LH Latch

705013095

$55.35

7100

RH Latch

705013096

Unavailable

7200

Stricker Support

705207246

$27.66

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

7800

LH Rear Door Panel | Includes 7800 to 7800

705013063

$302.28

7840

Torx Screw M6 X 20

250000722

$1.34

7860

LH Rear Door Gasket Ass'y | Includes 7860 to 7860c

293250505

$78.43

7860a

Natural Color, Dart

293730081

$2.75

7860b

Red, Dart

293730082

$2.75

7870

RH Rear Door Gasket Ass'y | Includes 7870 to 7870c

293250506

$78.43

7870a

Natural Color, Dart

293730081

$2.75

7870b

Red, Dart

293730082

$2.75

7900

RH Rear Door Panel | Includes 7900 to 7900

705013064

$302.28

8000

Can-Am Red, LH Rear Door Trim Panel

705013601

$232.28

8010

Panel Nut M6 X 1.0

250100198

$1.73

8100

Can-Am Red, RH Rear Door Trim Panel

705013602

$232.28

8200

Door Handle

705017152

$13.52

8250

Handle Axle

705207440

$11.54

8251

External Retaining Ring

705601875

$4.06

8300

Handle Spring

705013062

$13.83

8400

Hinge

705013228

$27.66

8410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

8420

Washer

503192494

$3.11

8440

Flat Washer 8 mm, Nylon

234081100

$1.00

8450

Circlip | RS STD

705601030

$4.12

8500

LH Rear Door Upper Locking Rod

705207152

$23.05

8510

RH Tie Rod Clip

708300202

$2.31

8600

RH Rear Door Upper Locking Rod

705207153

$23.05

8610

RH Tie Rod Clip

708300202

$2.31

8700

LH Rear Door Lower Locking Rod

705207154

$23.05

8710

RH Tie Rod Clip

708300202

$2.31

8800

RH Rear Door Lower Locking Rod

705207155

$23.05

8810

RH Tie Rod Clip

708300202

$2.31

8900

LH Latch

705013758

$55.35

8910

Stainless Steel Flat Washer

234062670

$1.74

8920

Torx Truss Screw M6 X 25

250000807

$1.74

9000

RH Latch

705013759

$55.35

9100

Stricker Support

705207246

$27.66

9110

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
