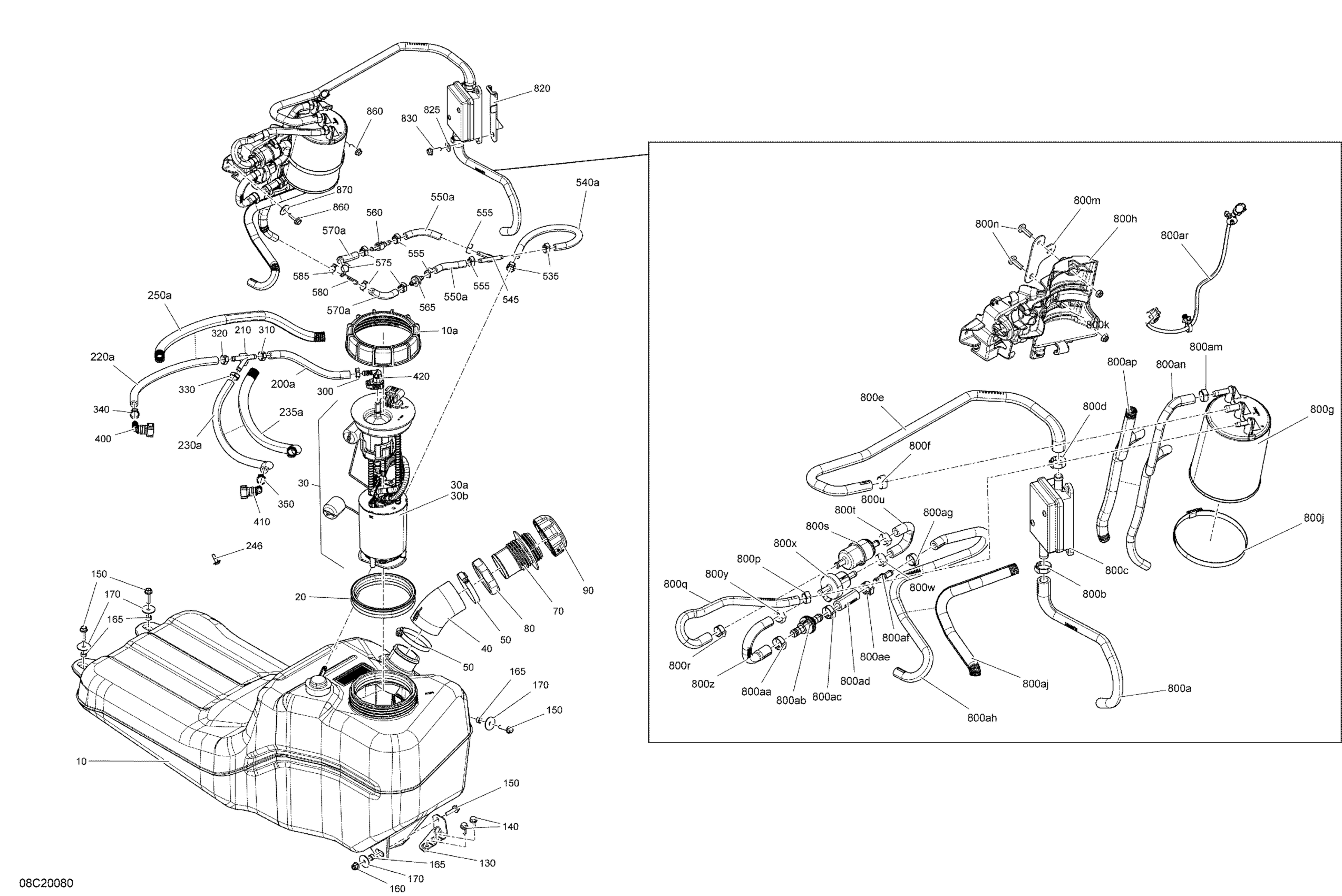

Can-Am Maverick Sport MAX 1000R - 2020 Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$379.07

10a

Special Nut M130

250100062

$20.12

20

Gasket

293250173

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Fil Neck Hose

709000828

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

130

Tank Bracket

709000997

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.70

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.91

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200a

Was 709000163 Fuel Line

219704440

$25.34

210

Y-Fitting, 5/16''

293710136

$5.76

220a

Was 709000163 Fuel Line

219704440

$25.34

230a

Was 709000163 Fuel Line

219704440

$25.34

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

246

Screw PT Type K-50 X 16

250000959

$2.00

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Attach 90°

275500700

$14.48

410

Quick Attach 90°

275500700

$14.48

420

Quick Disconnect

275500921

$14.48

535

Oetiker Clamp

293650042

$2.82

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$9.40

550a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$2.82

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

570a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$2.82

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$2.82

800a

Formed Hose

709000879

$15.64

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Oetiker Clamp

293650186

$3.82

800e

Formed Hose

709000957

$15.64

800f

Crimp Clamp

293650053

$2.78

800g

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800h

Canister Support | EVAP Models

709000851

$4.40

800j

Tridon Clamp

293650054

$8.63

800k

Hex. Elastic Stop Nut M6

232561600

$1.06

800m

Support

709000936

Unavailable

800n

Torx Screw M6 X 20

250000712

$2.00

800p

Oetiker Clamp

293650042

$2.82

800q

Formed Hose

709000853

$14.33

800r

Oetiker Clamp

293650046

$2.67

800s

Fuel Filter

513034047

$35.99

800t

Crimp Clamp, 15.3-706R

293650047

$3.03

800u

Formed Hose

709000857

$14.33

800w

Crimp Clamp, 15.3-706R

293650047

$3.03

800x

Bleed Valve

709000443

$65.64

800y

Crimp Clamp, 15.3-706R

293650047

$3.03

800z

Formed Hose

709000881

$15.64

800aa

Crimp Clamp

293650053

$2.78

800ab

Check Valve

275500941

$23.10

800ac

Crimp Clamp

293650053

$2.78

800ad

Hose

709000882

$14.33

800ae

Crimp Clamp

293650053

$2.78

800af

Flow Reducer

709000933

$3.79

800ag

Crimp Clamp, 15.3-706R

293650047

$3.03

800ah

Formed Hose

709001013

$26.09

800aj

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800am

Oetiker Clamp

293650046

$2.67

800an

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ap

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800ar

Extension Wiring Harness

710005866

$24.60

820

Filter Support

709000935

$3.18

825

Stainless Steel Flat Washer

234062670

$2.00

830

Hex. Flange Screw M6 X 20

207662054

$0.96

860

Hex. Flange Screw M6 X 20

207662054

$0.96

870

Flat Washer M6.6 X 22

250200162

$2.19
