Description

Price

100

Front Console Kit

715004068

$146.99

110

Insert

707900133

$2.89

120

Washer

503189273

$3.10

130

Tuflok Plastic Rivet

293150230

$1.39

140

Torx Screw M6 X 20

250000722

$1.54

150

Middle Console

707900492

$19.37

155

Torx Screw M6 X 20

250000722

$1.54

170

Rear Console

707900568

$19.37

175

Torx Screw M6 X 20

250000722

$1.54

180

Insert

705016606

$2.06

185

Stainless Steel Flat Washer

234062670

$2.00

200

Front Central Console Support

707900459

$58.93

205

Torx Screw K50 X 16

250000720

$1.60

210

Panel Nut M6 X 1.0

250100198

$1.99

220

Torx Screw M6 X 20

250000722

$1.54

250

Shifter Gate Support

707900488

$23.85

255

Torx Screw M6 X 45

250000748

$1.79

256

Hex. Flange Elastic Nut M6

233261466

$1.91

257

Stainless Steel Flat Washer

234062670

$2.00

300

Lever Indicator

707900644

$22.36

310

Torx Screw M6 X 20

250000722

$1.54

315

Stainless Steel Flat Washer

234062670

$2.00

400

LH Lateral Dash Panel

707900396

$66.39

410

Clip

705010721

$2.03

450

LH Middle Lateral Dash Panel

707900497

$66.39

460

Clip

705010721

$2.03

470

LH Rear Lateral Dash Panel

707900571

$66.39

480

Clip

705010721

$2.03

500

RH Lateral Dash Panel

707900397

$66.39

510

Clip

705010721

$2.03

550

RH Middle Lateral Dash Panel

707900498

$66.39

560

Clip

705010721

$2.03

570

RH Rear Lateral Dash Panel

707900572

$66.39

580

Clip

705010721

$2.03

600

Front Top Console

707900460

Unavailable

610

Torx Screw Truss Head K50X20 T20

250000760

$2.00

620

Torx Screw M6 X 20

250000722

$1.54

630

Panel Nut M6 X 1.0

250100198

$1.99

800

LH Console Panel

707901087

$64.90

810

Clip

705010721

$2.03

900

RH Console Panel

707901088

$66.39

910

Clip

705010721

$2.03

1000

Passenger Handle

707900011

$12.43

1010

Connector Tube

707900048

$5.52

1020

Torx Screw M6 X 20

250000722

$1.54

3000

LH Front Floor

707900339

$60.42

3100

RH Front Floor

707900340

$60.42

3110

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3120

Tuflok Plastic Rivet

293150230

$1.39

3200

Central Support Hose

707900710

$44.75

3210

Cable Support

707900478

$10.82

3220

Torx Screw K50 X 16

250000720

$1.60

3225

Washer M5

250200025

$0.70

3230

Panel Nut M6 X 1.0

250100198

$1.99

3240

Torx Screw M6 X 20

250000722

$1.54

3250

Stainless Steel Flat Washer

234062670

$2.00

3260

Torx Screw M6 X 20

250000722

$1.54

3261

Stainless Steel Flat Washer

234062670

$2.00

3620

Hose Support | Not Shown

707900651

$35.04

3630

Tuflok Plastic Rivet

293150230

$1.39

3660

Support Hose Rear

707900699

$5.21

3670

Support Hose Rear

707900729

$5.21

3700

LH Floor

707900495

$60.42

3710

Torx Screw M6 X 20

250000722

$1.54

3720

Stainless Steel Flat Washer

234062670

$2.00

3730

Panel Nut M6 X 1.0

250100198

$1.99

3740

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3800

Rear Right Floor

707900496

$60.42

3810

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3900

Footrest Support

707900595

$3.94

3910

Torx Truss Screw M6 X 25

250000807

$2.00

3920

Stainless Steel Flat Washer

234062670

$2.00

3930

Panel Nut M6 X 1.0

250100198

$1.99

4100

Central Console Support

707900501

$11.49

4110

Torx Truss Screw M6 X 25

250000807

$2.00

4120

Panel Nut M6 X 1.0

250100198

$1.99

4130

Stainless Steel Flat Washer

234062670

$2.00

4200

Rear Console Support

707900569

$17.13

4210

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

4220

Panel Nut M6 X 1.0

250100198

$1.99

4500

Console Support

707900573

$32.81

4510

Torx Screw M6 X 20

250000722

$1.54

4515

Torx Screw K50 X 16

250000720

$1.60

4520

Stainless Steel Flat Washer

234062670

$2.00

4530

Panel Nut M6 X 1.0

250100198

$1.99

4540

Torx Screw M6 X 20

250000722

$1.54

4550

Stainless Steel Flat Washer

234062670

$2.00

4560

Panel Nut M6 X 1.0

250100198

$1.99

4800

Support Hose Central

707900711

$44.75

5430

Torx Screw M6 X 20

250000722

$1.54

5800

Passenger Handle

707900575

$32.06

5810

Torx Screw M6 X 20

250000722

$1.54

5820

Connector Tube

707900048

$5.52

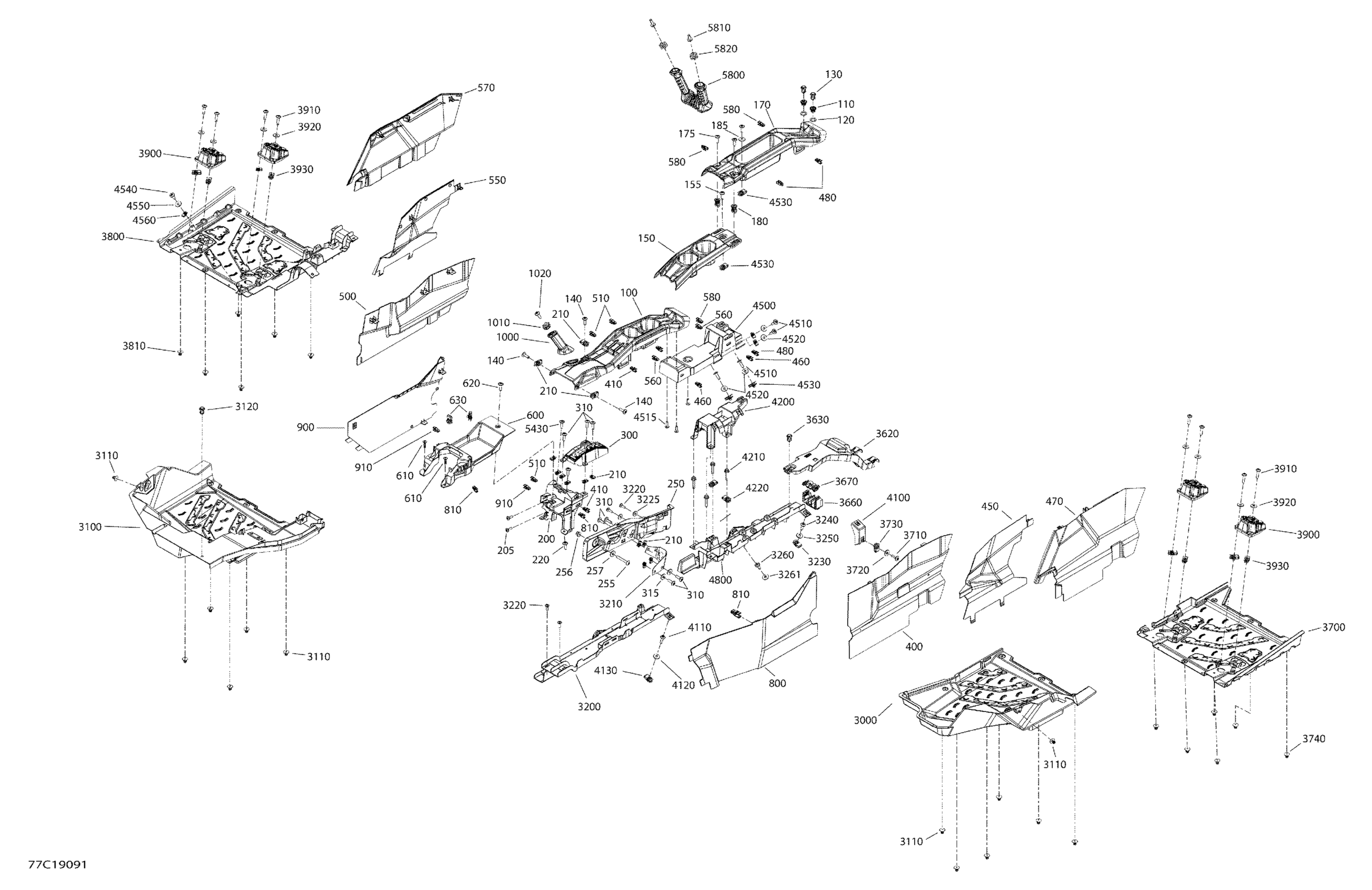

Can-Am Maverick MAX Turbo R - 2019 Cab Interior Maverick MAX - Lower Section Diagram

Front Console Kit

Insert

Washer

Tuflok Plastic Rivet

Torx Screw M6 X 20

Middle Console

Torx Screw M6 X 20

Rear Console

Torx Screw M6 X 20

Insert

Stainless Steel Flat Washer

Front Central Console Support

Torx Screw K50 X 16

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Shifter Gate Support

Torx Screw M6 X 45

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Lever Indicator

Torx Screw M6 X 20

Stainless Steel Flat Washer

LH Lateral Dash Panel

Clip

LH Middle Lateral Dash Panel

Clip

LH Rear Lateral Dash Panel

Clip

RH Lateral Dash Panel

Clip

RH Middle Lateral Dash Panel

Clip

RH Rear Lateral Dash Panel

Clip

Front Top Console

Torx Screw Truss Head K50X20 T20

Torx Screw M6 X 20

Panel Nut M6 X 1.0

LH Console Panel

Clip

RH Console Panel

Clip

Passenger Handle

Connector Tube

Torx Screw M6 X 20

LH Front Floor

RH Front Floor

Pop Rivet 3/16" | DS 650 X

Tuflok Plastic Rivet

Central Support Hose

Cable Support

Torx Screw K50 X 16

Washer M5

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw M6 X 20

Stainless Steel Flat Washer

Hose Support | Not Shown

Tuflok Plastic Rivet

Support Hose Rear

Support Hose Rear

LH Floor

Torx Screw M6 X 20

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Pop Rivet 3/16" | DS 650 X

Rear Right Floor

Pop Rivet 3/16" | DS 650 X

Footrest Support

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Central Console Support

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Rear Console Support

Hex. Flange Screw M6 X 1.0 X 30
