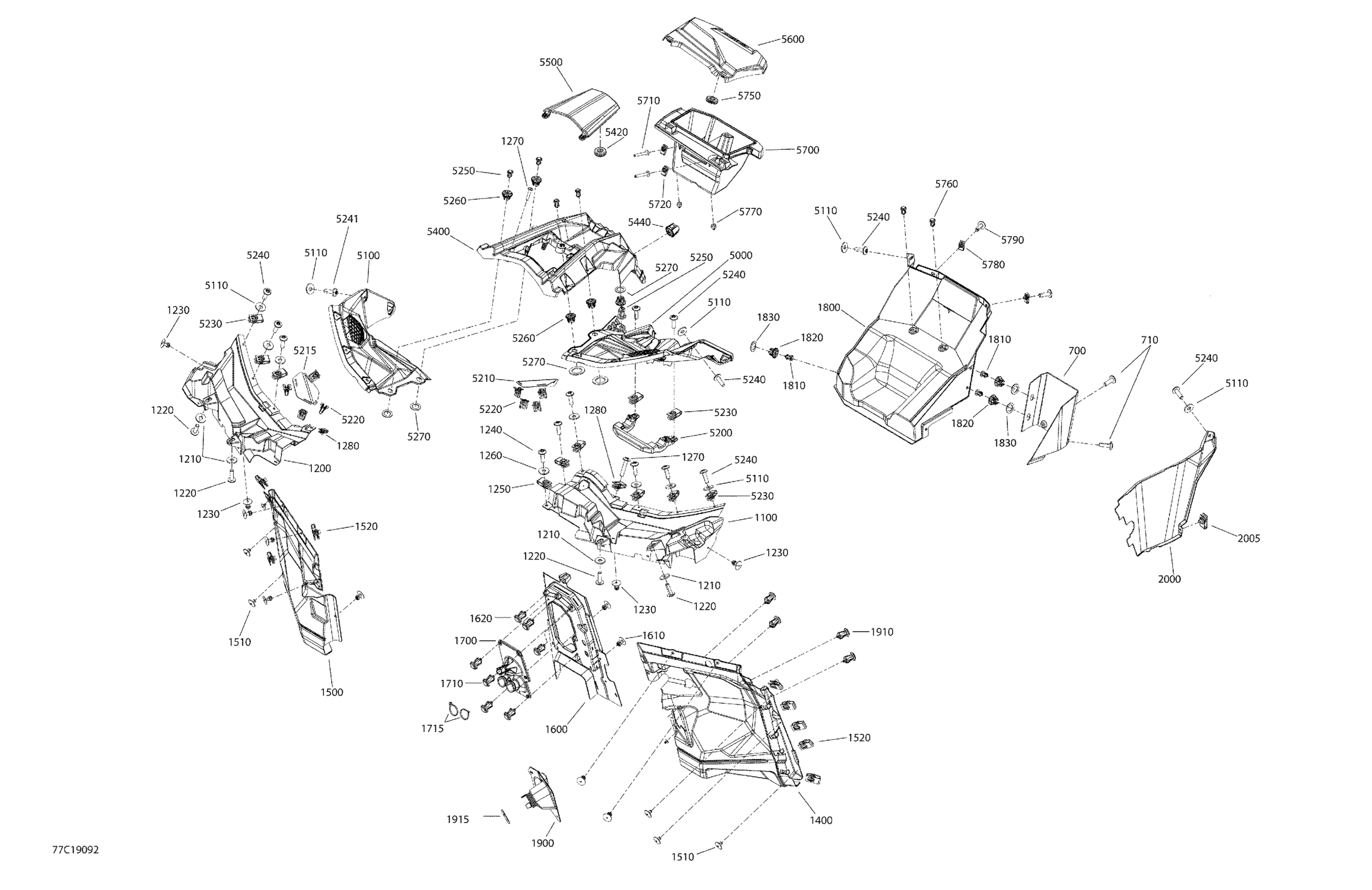

Can-Am Maverick MAX Turbo R - 2019 Cab Interior Maverick MAX - Front Upper Section Diagram

#

Description
Price

700

Cover Central Console

707900473

$23.85

710

Torx Screw M6 X 20

250000722

$1.54

1100

LH Front Upper Deflector

707900337

$128.33

1200

RH Front Upper Deflector

707900338

$167.13

1210

Stainless Steel Flat Washer

234062670

$2.00

1220

Torx Screw M6 X 20

250000722

$1.54

1230

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1240

Torx Screw M6 X 20

250000722

$1.54

1250

Panel Nut M6 X 1.0

250100198

$1.99

1260

Stainless Steel Flat Washer

234062670

$2.00

1270

Stainless, Torx Screw M6 X 30

250000842

$2.00

1280

Panel Nut M6 X 1.0

250100198

$1.99

1400

LH Front Bulkhead

707900930

$84.30

1500

RH Front Bulkhead

707900931

$46.99

1510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1520

Panel Nut M6 X 1.0

250100198

$1.99

1600

Front Bulkhead Panel

707900407

$47.73

1610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1620

Tuflok Plastic Rivet

293150230

$1.39

1700

Grommet

707900701

$15.64

1710

Tuflok Plastic Rivet

293150230

$1.39

1715

Tie-Rap 180 mm

414115200

$0.10

1800

RH Lower Dash Panel

707900410

$68.63

1810

Tuflok Plastic Rivet

293150230

$1.39

1820

Insert

707900133

$2.89

1830

Washer

503189273

$3.10

1900

Steering Column Cover

707900754

$11.51

1910

Tuflok Plastic Rivet

293150230

$1.39

1915

Tie Wrap 368 mm

293750008

$0.97

2000

Side Panel Cover

707900477

$54.45

2005

Panel Nut M6 X 1.0

250100198

$1.99

5000

LH Dashboard Kit

715006587

$102.21

5100

RH Dashboard

707900698

$36.54

5110

Stainless Steel Flat Washer

234062670

$2.00

5200

Dash Support

707900479

$13.52

5210

LH Speaker Cover

707900465

$26.09

5215

RH Speaker Cover

707900590

$26.09

5220

Edge Clip

517302785

$0.81

5230

Panel Nut M6 X 1.0

250100198

$1.99

5240

Torx Screw M6 X 20

250000722

$1.54

5241

Torx Screw M6 X 20

250000712

$2.00

5250

Tuflok Plastic Rivet

293150230

$1.39

5260

Insert

707900133

$2.89

5270

Washer

503189273

$3.10

5400

Dashboard Central

707900700

$57.43

5420

Grommet

517303756

$3.61

5440

Key Protector

707900598

$4.04

5500

Dash Cover

707900400

$23.85

5600

Glove Box Cover Kit

715004067

$49.97

5700

Glove Box

707900350

$85.04

5710

Torx Truss M6 X 50

250000868

$2.00

5720

Panel Nut M6 X 1.0

250100198

$1.99

5750

Grommet

517303756

$3.61

5760

Tuflok Plastic Rivet

293150230

$1.39

5770

Rubber Bumper

293830005

$6.12

5780

Panel Nut M6 X 1.0

250100198

$1.99

5790

Torx Screw M6 X 20

250000722

$1.54
