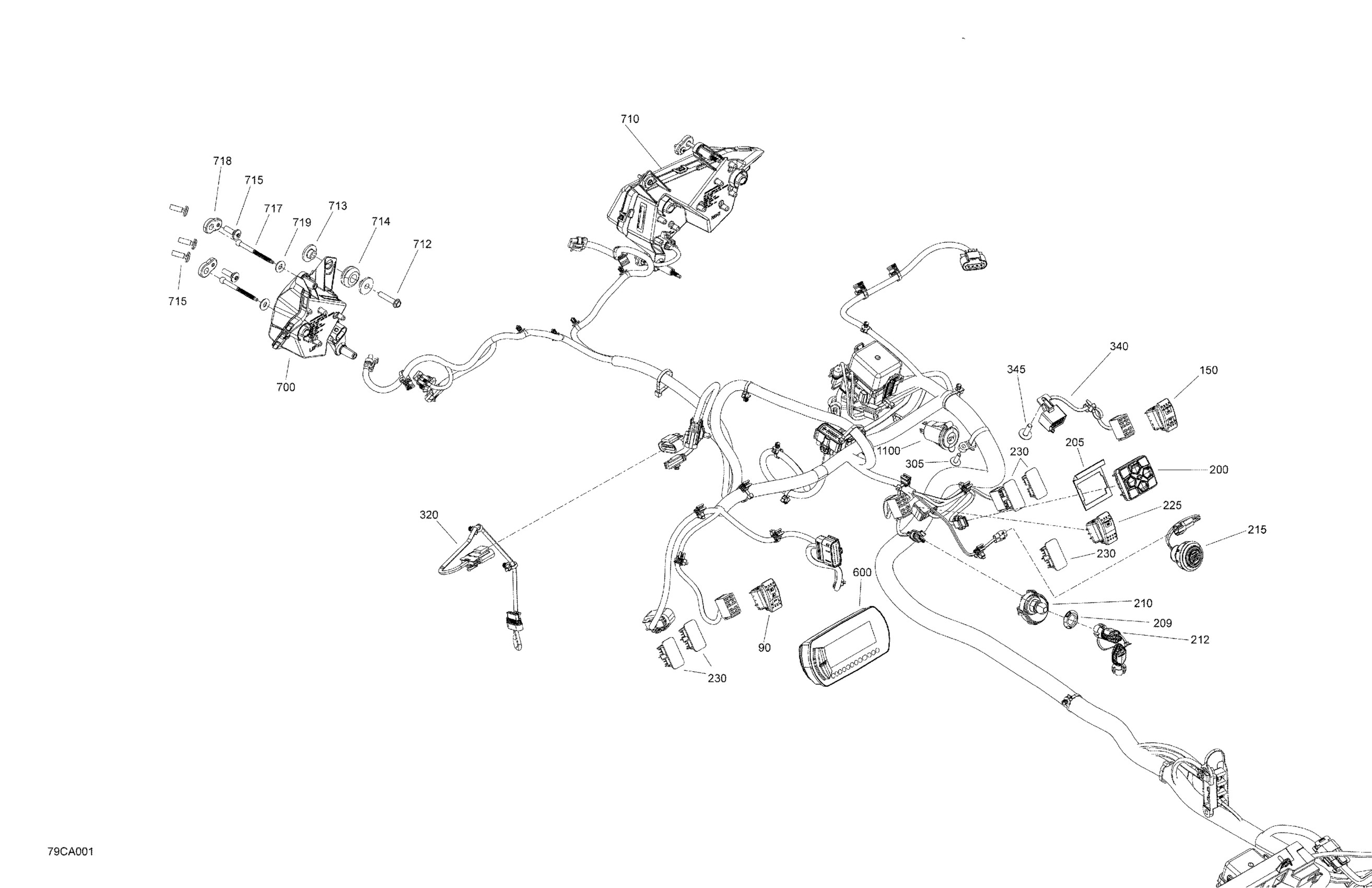

Can-Am Maverick Turbo - DS - 2021 Electric - Front System Diagram

Description

Price

60d

Elastic Stop Nut M5

232551414

$0.72

Headlights Switch

710007022

$69.20

150

Switch 2X4

710005489

$32.28

200

Switch Multifunction

710006059

$87.66

205

Rubber Stopper

707900778

$3.98

209

Safety Nut (DESS Switch)

278002963

$2.72

210

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

215

Start-Stop Button | Not Shown

710005213

$59.97

225

Switch, Over ride

710002053

$19.27

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

305

Screw PT Type K-50 X 16

250000959

$1.74

320

Cable Throttle Pedal

710005291

$226.12

340

Switch Wiring Harness

710006740

$27.66

345

Screw PT Type K-50 X 16

250000959

$1.74

600

Multifunction Compact Gauge

710007407

$355.35

700

LH Front Auxiliary LED Light

710008811

$441.74

710

RH Front Auxiliary LED Light

710008812

$432.24

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Screw PT Type K-50 X 16

250000959

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27
