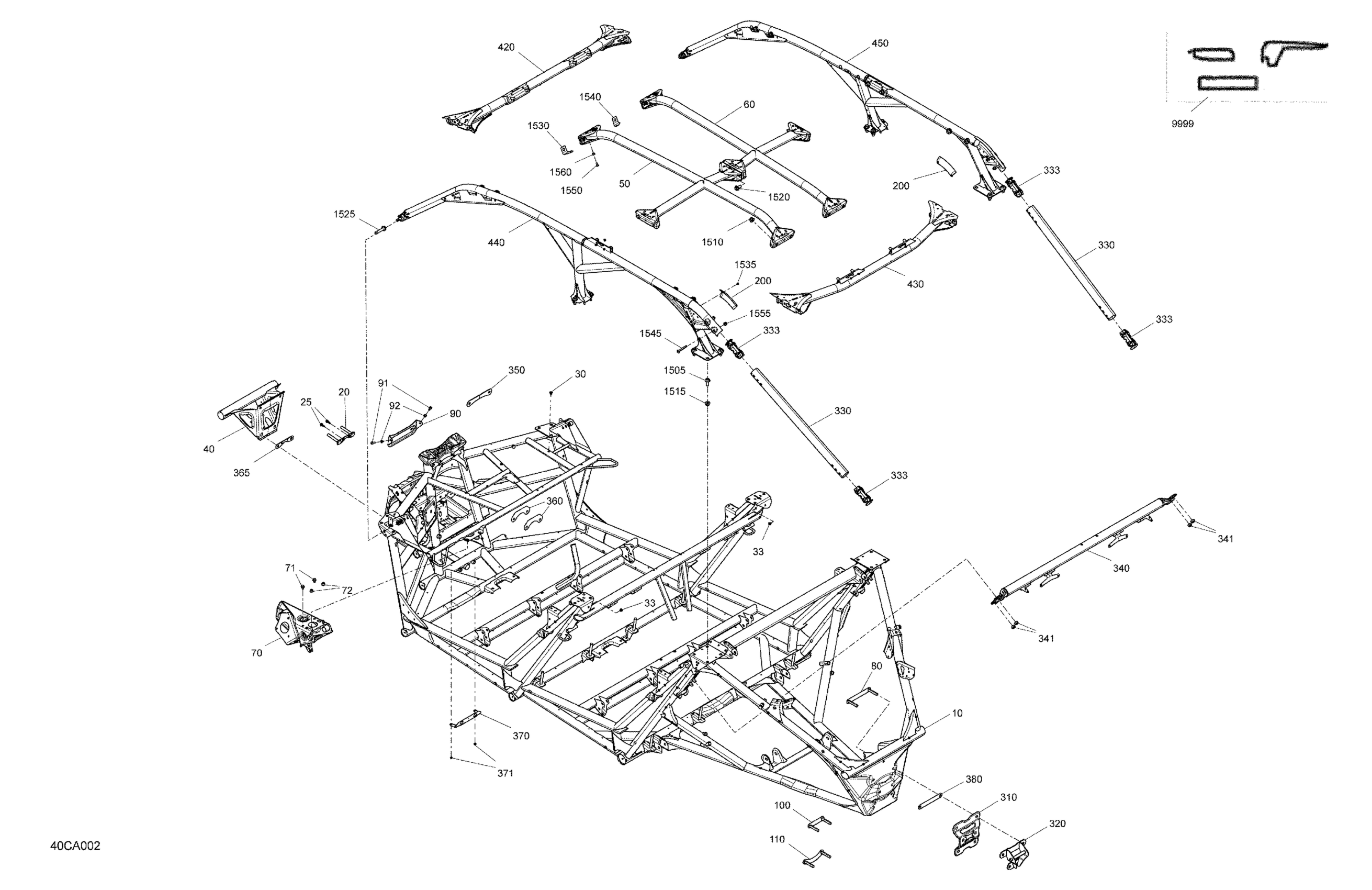

Can-Am Maverick MAX Turbo - DS - 2021 Frame - Components Diagram

#

Description
Price

10

Black, Frame Kit

715009106

$3,359.99

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

33

Insert Half Hex Body M6 x 1.0

250100199

$3.19

40

Deep Black, Front Bumper | Except Model Gold

705210400

$103.99

50

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

60

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Black, LH Link Plate | Except Model Gold

705205926

$25.99

310

Rear Plate

705205750

$25.99

320

Black, Rear Attachement Hook

715004450

$85.99

330

Deep Black, Rear Pillar

705210066

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

380

Front Upper Plate

705206069

$15.99

420

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

430

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

440

Black, LH Cage Kit

715008450

$629.99

450

Black, RH Cage Kit

715008464

$629.99

1505

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1510

Elastic Flange Nut M12

233221466

$2.89

1515

Hex Flange Nut m12

233121466

$0.82

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

1525

Flange Screw M12 X 60

250000857

$7.41

1530

Deep Black, LH Cage Reinforcement

705211746

$58.99

1535

Rivet 3/16"

293150102

$0.70

1540

Deep Black, RH Cage Reinforcement

705211747

$58.99

1545

Torx Truss M8 X 65

250000901

$1.90

1550

Torx Head Screw M6 X 16

250000717

$2.11

1555

Elastic Flange Nut M8

250100025

$1.48

1560

Hex. Flange Elastic Nut M6

233261466

$2.00

9999

Wear Plate Kit | Includes 15a to 15a4

703501157

$11.49
