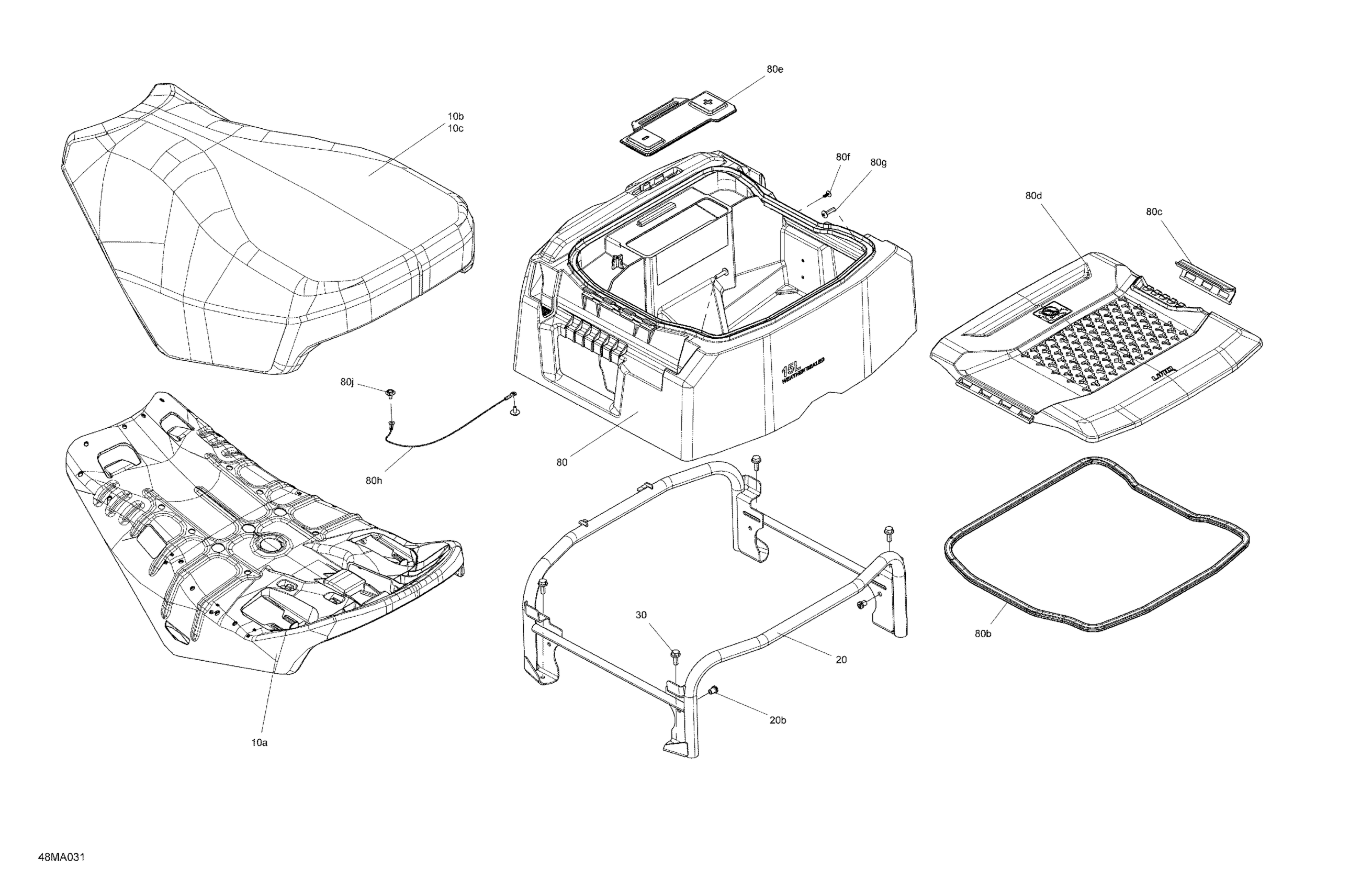

Ski-Doo 007 - EXPEDITION XTREME 850 E-TEC, Europe, 2021 07- Body - Seat Diagram

Description

Price

10a

Driver Seat Base

510007142

$72.99

10b

Driver Seat Foam

510006413

$329.99

10c

Seat Cover

510006843

$203.99

Seat Support Ass'y | Includes 20 to 20b

510007010

$86.99

20b

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Storage Box Ass'y | Includes 80 to 80k

510007166

$329.99

80b

Seal, 1PC = 3M

293830188

$39.99

80c

Latch

269502449

$4.39

80d

Box Cover

511001274

$39.99

80e

Access Cover

510006789

$8.74

80f

Torx-Truss Screw K40 X 10

250001034

$0.98

80g

Torx Screw M5 X 20

250000724

$1.69

80h

Retaining Cable

293750092

$12.99

80j

Plastite Screw M4 X 10

250000805

$2.11
