Description

Price

10

Black, Frame | Includes 10 to 10ay

518329721

$5.00

10p

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

10q

Socket Screw | Not Shown

205061244

$2.11

10s

LH Rear Side Support

518329702

Unavailable

10t

Rear Arm Bracket

518329083

$19.49

10u

RH Rear Side Support

518329703

Unavailable

10v

Rear Arm Bracket

518329083

$19.49

10w

Fastening rail

518326107

$18.49

10x

LH Footrest

518328852

$76.99

10y

RH Footrest

518328853

$94.99

10z

Fastening Bracket

518327884

$27.99

10aa

LH Drive Axle Cover

518328014

$209.99

10ab

RH Drive Axle Cover

518328015

$209.99

10ac

TUNNEL SUPPORT - Call your local BRP dealership

518327003

$28.99

10ad

Seat Box Bracket

518329164

$29.99

10aj

CLINCH NUT PLATE - Call your local BRP dealership

518328096

$44.59

10ap

LH Frame Corner

518325643

$52.99

10aq

RH Frame Corner

518325644

$52.99

10ar

Adhesive Patch

518325560

$4.69

10as

Rear Profile

518328749

$234.99

10at

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

10au

Rivet Hucklok

293150163

$2.99

10av

Avex Rivet

390909100

$0.30

10aw

Avex Rivet

390909200

$0.30

10ax

Hemlock Rivet, 6.5 mm

293150119

$4.29

10ay

Rivet

293150183

$2.11

20

Adhesive Patch

518325560

$4.69

30

Gearbox Front Plate

518326123

$17.49

40

Gearbox Rear Plate

518326124

$17.99

50

Pop Rivet 3/16"

390402200

$0.35

90

LH Footboard Support Tube

518327595

$88.99

94

Rivet Hucklok

293150163

$2.99

95

Avex Rivet

390909100

$0.30

100

RH Footboard Support Tube

518327596

$88.99

104

Rivet Hucklok

293150163

$2.99

105

Avex Rivet

390909100

$0.30

110

Hex. Flange Screw M6 x 20

207662056

$1.01

120

Black Rear Footrest

520001208

$19.99

125

Rivet 3/16"

293150102

$0.70

130

Black, LH Toe Hook

518328569

$56.99

132

Clinch Nut M6 Hexsert

605636003

$4.23

140

Black, RH Toe Hook

518328571

Unavailable

141

Avex Rivet

390909200

$0.30

142

Clinch Nut M6 Hexsert

605636003

$4.23

145

Hex. Flange Screw M6 x 20

207662056

$1.01

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

157

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

160

Spring Bracket

514054846

$4.69

170

Avex Rivet

390909200

$0.30

1240

Adhesive Patch

518325560

$4.69

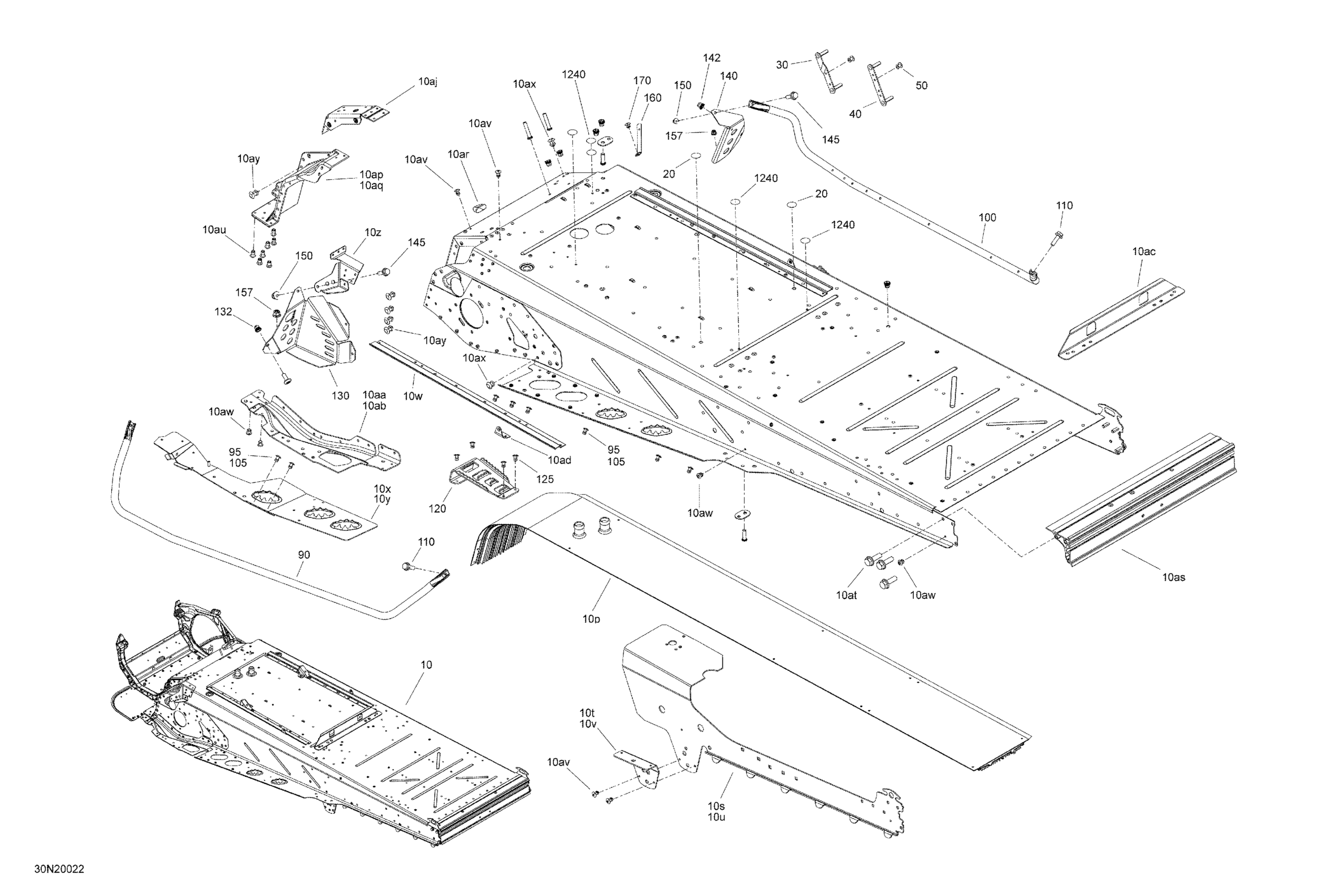

Ski-Doo 007 - EXPEDITION SWT 900 ACE - North America, 2020 09- Frame - System - Rear Section Diagram

Black, Frame | Includes 10 to 10ay

Tunnel Radiator | Includes 10p to 10q

Socket Screw | Not Shown

LH Rear Side Support

Rear Arm Bracket

RH Rear Side Support

Rear Arm Bracket

Fastening rail

LH Footrest

RH Footrest

Fastening Bracket

LH Drive Axle Cover

RH Drive Axle Cover

TUNNEL SUPPORT - Call your local BRP dealership

Seat Box Bracket

CLINCH NUT PLATE - Call your local BRP dealership

LH Frame Corner

RH Frame Corner

Adhesive Patch

Rear Profile

Hex Flange Screw M8 X 25 S.Grip

Rivet Hucklok

Avex Rivet

Avex Rivet

Hemlock Rivet, 6.5 mm

Rivet

Adhesive Patch

Gearbox Front Plate

Gearbox Rear Plate

Pop Rivet 3/16"

LH Footboard Support Tube

Rivet Hucklok

Avex Rivet

RH Footboard Support Tube

Rivet Hucklok

Avex Rivet

Hex. Flange Screw M6 x 20

Black Rear Footrest

Rivet 3/16"

Black, LH Toe Hook

Clinch Nut M6 Hexsert

Black, RH Toe Hook

Avex Rivet

Clinch Nut M6 Hexsert

Hex. Flange Screw M6 x 20

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M6 x 1.0

Spring Bracket

Avex Rivet

Adhesive Patch
