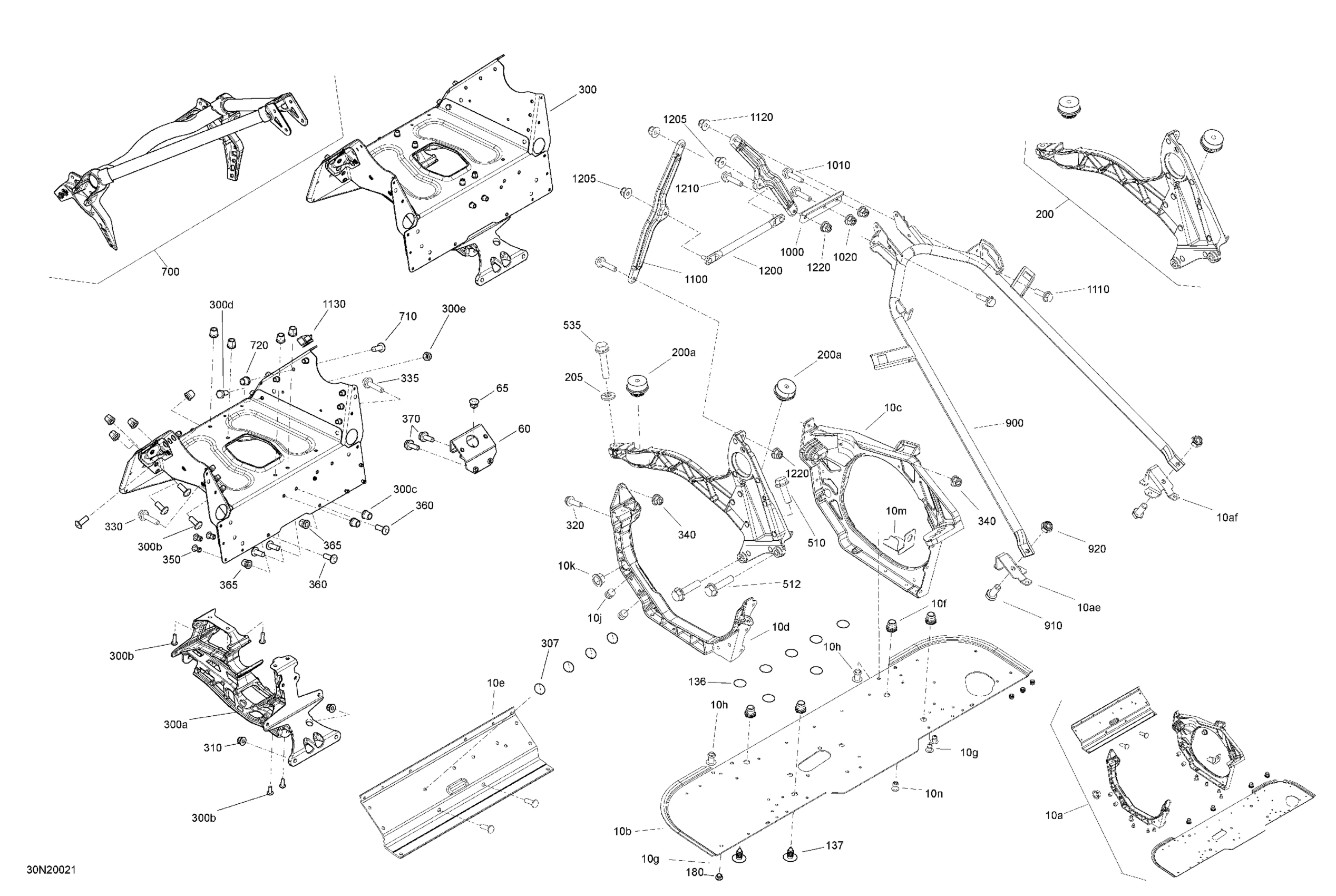

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Frame - System - Front Section Diagram

#

Description
Price

10a

Module E | Includes 10a to 10n

518329825

$855.94

10b

Bottom Plate

518329826

Unavailable

10c

RH Side Member

518326328

$252.21

10d

LH Side Member

518326330

$252.21

10e

Front Member

518326198

$58.18

10f

Clinch Nut Hexsert M8

605636002

$7.09

10g

Avex Rivet

390909100

$0.28

10h

Hemlock Rivet 6.5 mm

293150120

$7.01

10j

Hemlock Rivet, 6.5 mm

293150119

$3.88

10k

Leg Bushing

505072690

$5.75

10m

Muffler Support

518327983

$17.88

10n

Rivet Hucklok

293150163

$2.73

10ae

LH Support Tube Bracket

518329109

$43.25

10af

RH Support Tube Bracket

518329110

$43.25

60

Engine Support

518326178

$61.16

65

Hemlock Rivet, 6.4 mm

293150174

$6.24

136

Adhesive Patch

518325560

$4.21

137

Black, Dart

414644300

$0.90

180

Avex Rivet

390909200

$0.28

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

200a

Vibration Damper

512061516

$55.94

205

Conical Spring Washer M8

250200146

$0.96

300

Cross Member | Includes 300 to 300e

518328391

$729.99

300a

Front Suspension Support

518327487

$259.67

300b

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

300c

Collar Huck Magna-Grip 6.4

293150149

$0.36

300d

Hex. Screw M6 X 14

207161444

$0.55

300e

Hex. Elastic Stop Nut M6

232561600

$1.06

307

Black, Dart

414644300

$0.90

310

Hex. Flange Elastic Nut M8

233281414

$1.31

320

Hexagonal Head Screw

210262050

$2.00

330

Hex. Flange Screw M6 X 25

207662544

$0.61

335

Hex. Flange Screw M6 X 25

207662544

$0.61

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

350

Rivet Hucklok

293150163

$2.73

360

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

365

Collar Huck Magna-Grip 6.4

293150149

$0.36

370

Hex. Flange Screw M6 X 16

207661644

$0.70

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.22

512

Hex. Flange Screw M8 X 35

250000986

$2.00

535

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

700

Front Member

518326975

$344.75

710

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

720

Collar Huck Magna-Grip 6.4

293150149

$0.36

900

Upper Support Tube

518329105

$184.30

910

Hex. Screw M8 X 20

207182044

$0.70

920

Hex. Elastic Stop Nut M8

232581414

$0.54

1000

Extension Plate

518330343

$7.19

1010

Hex. Flange Screw M6 X 25

207662544

$0.61

1020

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1100

Upper Column Support

518326848

$12.67

1110

Hex. Flange Screw M6 x 20

207662056

$0.96

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1130

Clip

414227300

$1.40

1200

Center Column Support

518326355

$20.12

1205

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1210

Hex. Flange Screw M6 X 25

207662556

$4.15

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
