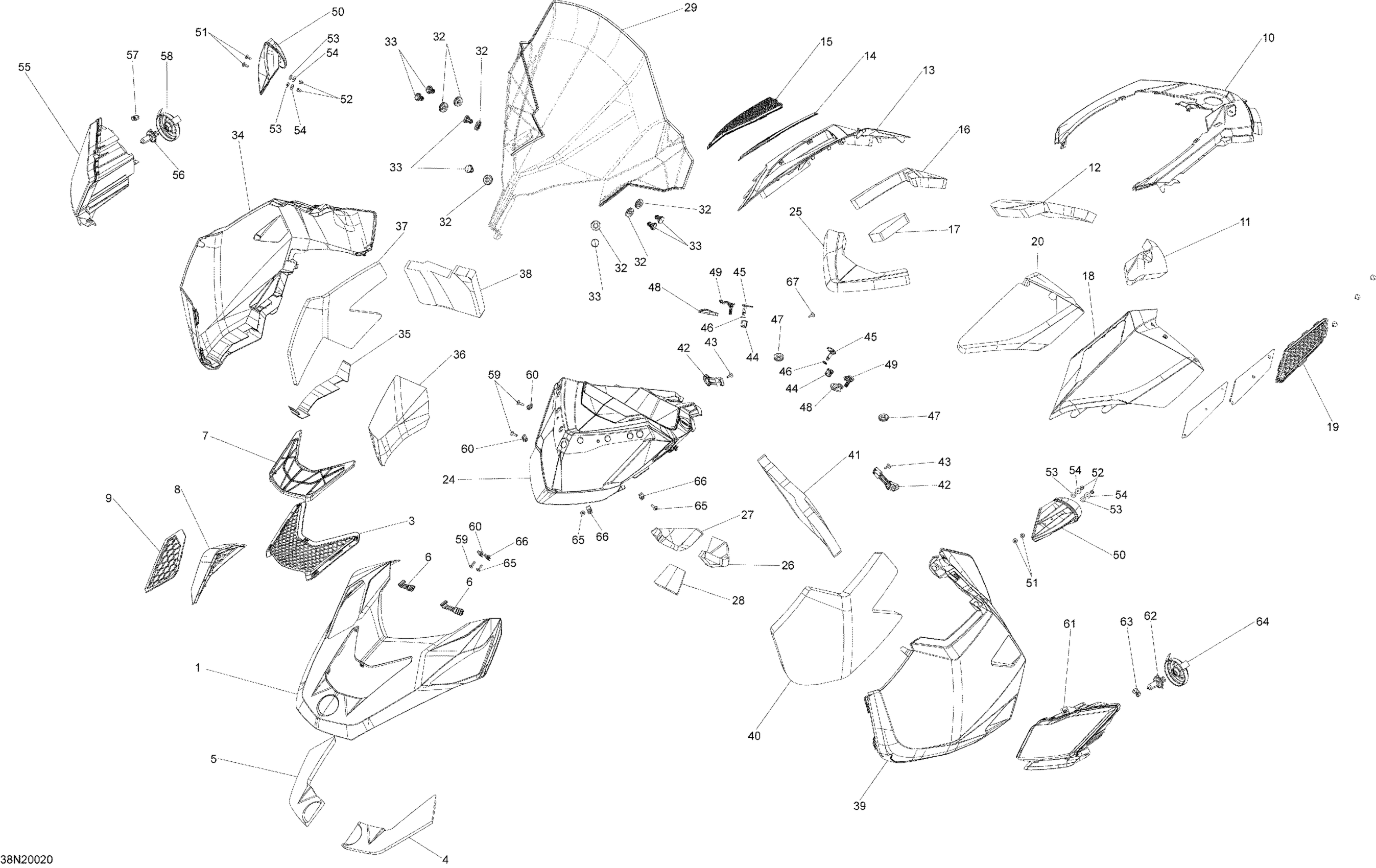

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Body - Hood Section - Expedition - 900 ACE Diagram

#

Description
Price

1

Hood | Viper Red

517304810

$264.99

1

Hood | Squadron Green

517305846

$309.99

1

Hood | Sunburst Yellow

517306789

$309.99

3

Hood Grille

517304843

$82.28

4

Insulator

517304330

$34.58

5

Insulator

517304214

$29.97

6

Latch Pannel

517304289

$9.91

8

Scoop Grille

517306980

$34.58

10

Console | Package SWT

517305609

$170.74

10

Console | Package LE

517305611

$138.43

10

Console | Package SE

517305612

$138.43

11

Insulator

517305644

$36.12

12

Insulator

517304318

$49.20

13

RH Side Access Panel | Viper Red

517304831

$295.35

13

RH Side Access Panel | Squadron Green

517305848

$239.97

13

RH Side Access Panel | Sunburst Yellow

517306791

$295.35

14

RH Access Panel Grille

517304015

$33.82

15

RH Lower Acces Grille

517304016

$29.20

16

Insulator

517304311

$63.05

17

Insulator

517305987

$29.97

18

LH Side Access Panel | Viper Red

517304841

$295.35

18

LH Side Access Panel | Squadron Green

517305850

$239.97

18

LH Side Access Panel | Sunburst Yellow

517306793

$239.97

19

LH Access Panel Grille

517303893

$33.82

20

Insulator

517304313

$63.05

24

Indicator Support

517304272

$169.20

25

Insulator

517304314

$63.82

26

Insulator

517304315

$29.97

27

Insulator

517304316

$29.97

28

Insulator

517304319

$29.97

29

Windshield Ass'y

860201000

$213.82

32

Grommet

517303756

$3.15

33

Button

517304744

$1.90

34

Black, RH Side Panel

517306970

$235.35

35

Aluminium Foil

517306504

$18.43

36

Aluminium Foil

517306505

$20.74

37

Aluminium Foil

517306506

$25.35

38

RH Rear Foam

517304310

$62.28

39

Black, LH Side Panel

517306973

$207.66

40

LH Foam

517303891

$53.05

41

LH Rear Foam

517304309

$62.28

42

Latch-Panel

517304572

$9.48

43

Pop Rivet 3/16”

293150108

$1.23

44

Handle Fastener Quarter-Turn

517304297

$14.62

45

Quarter-Turn Handle

517304296

$14.62

46

Locking Plate

517304538

$4.29

47

Grommet

517303756

$3.15

47

Side Panel Support | Except Package SWT

517304497

$18.43

48

End Piece Latch

517304075

$4.43

49

Latch-Panel

517306057

$19.47

50

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51

51

Torx Truss Screw M6 X 16

250000721

$1.39

52

Domed Nut M6

232361493

$1.77

53

Rubber Washer 5 mm

250200024

$1.77

54

Washer

20117

$5.22

55

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

56

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

57

Cap

515176498

$12.18

58

Rubber Cap Protector

219800280

$17.66

59

Torx Screw M6 X 20

250000722

$1.34

60

Panel Nut M6 X 1.0

250100198

$1.73

61

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

62

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

63

Cap

515176498

$12.18

64

Rubber Cap Protector

219800280

$17.66

65

Torx Screw M6 X 20

250000722

$1.34

66

Panel Nut M6 X 1.0

250100198

$1.73

67

Rivet | Except Package SWT

293150211

$2.05
