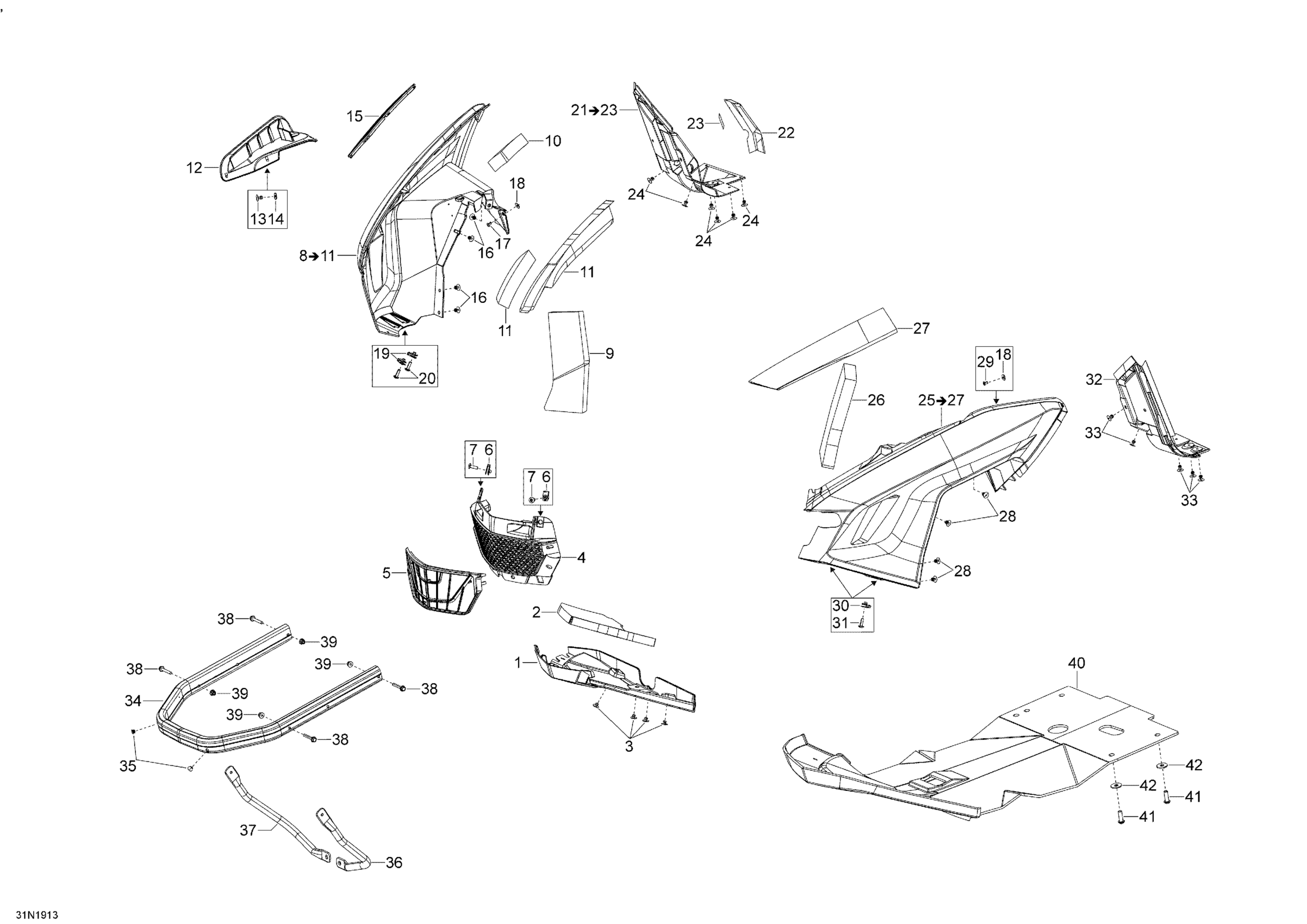

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Body - Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$149.99

2

Insulator

502007002

$28.99

3

Pop Rivet 3/16"

293150103

$0.55

4

Grille

502007145

$56.99

5

Front Grille With Mesh | Package EXTREME

502007393

$82.99

50

Push Nut

732610072

$2.19

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Torx Screw M6 X 20

250000722

$1.68

8

Black, RH Bottom Pan Ass'y | Package SE

502007991

Unavailable

8

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$149.99

8

Bottom Pan R.H. | Package EXTREME This part replaces 502007995.

502007996

$169.99

9

Insulator

502007526

$28.99

11

Insulator | Except Package EXTREME

502007009

$19.49

11

Insulator | Package EXTREME

517305977

$65.99

12

RH Bottom Pan Air Vent | Package EXTREME

517306982

$29.99

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Washer M5

250200025

$0.74

15

RH Bottom Pan Grille | Package EXTREME

517305976

$36.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Pop Rivet 3/16"

390402200

$0.35

18

Flat Washer

234052450

$2.11

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Torx Screw M6 X 20

250000722

$1.68

21

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$99.99

22

Aluminium Foil

502007038

$18.99

23

Aluminum foil

44110

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Black, LH Bottom Pan | Except Package SE

502008000

$119.99

25

Deep Black, LH Bottom Pan | Package SE

502008002

$194.99

26

Insulator

502007003

$28.99

27

Insulator

502007185

$28.99

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

29

Pop Rivet 3/16"

390402200

$0.35

30

Panel Nut M6 X 1.0

250100198

$2.11

31

Torx Screw M6 X 20

250000722

$1.68

32

LH Rear Bottom Pan

502008012

$114.99

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

34

Clear Anod. Bumper | Package SWT & LE

502007684

$121.99

34

Black Anod. Bumper | Package EXTREME & SE

502007685

$94.49

35

Full Moon Dart 8 mm

293730041

$2.21

35

Black, Dart 8 mm

293730047

$2.21

36

LH Bumper Support

502007014

$92.99

37

RH Bumper Support

502007015

$92.99

38

Hex. Flange Screw M6 X 40

207664044

$2.22

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

60

Oil Plate | Not Shown

518328317

$13.99

60a

Clinch Nut M6 Hexsert

605636003

$4.23

60

Torx Truss Screw M6 X 12

250000767

$2.00

60

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

60

Flat Washer 8 mm

234082410

$1.47
