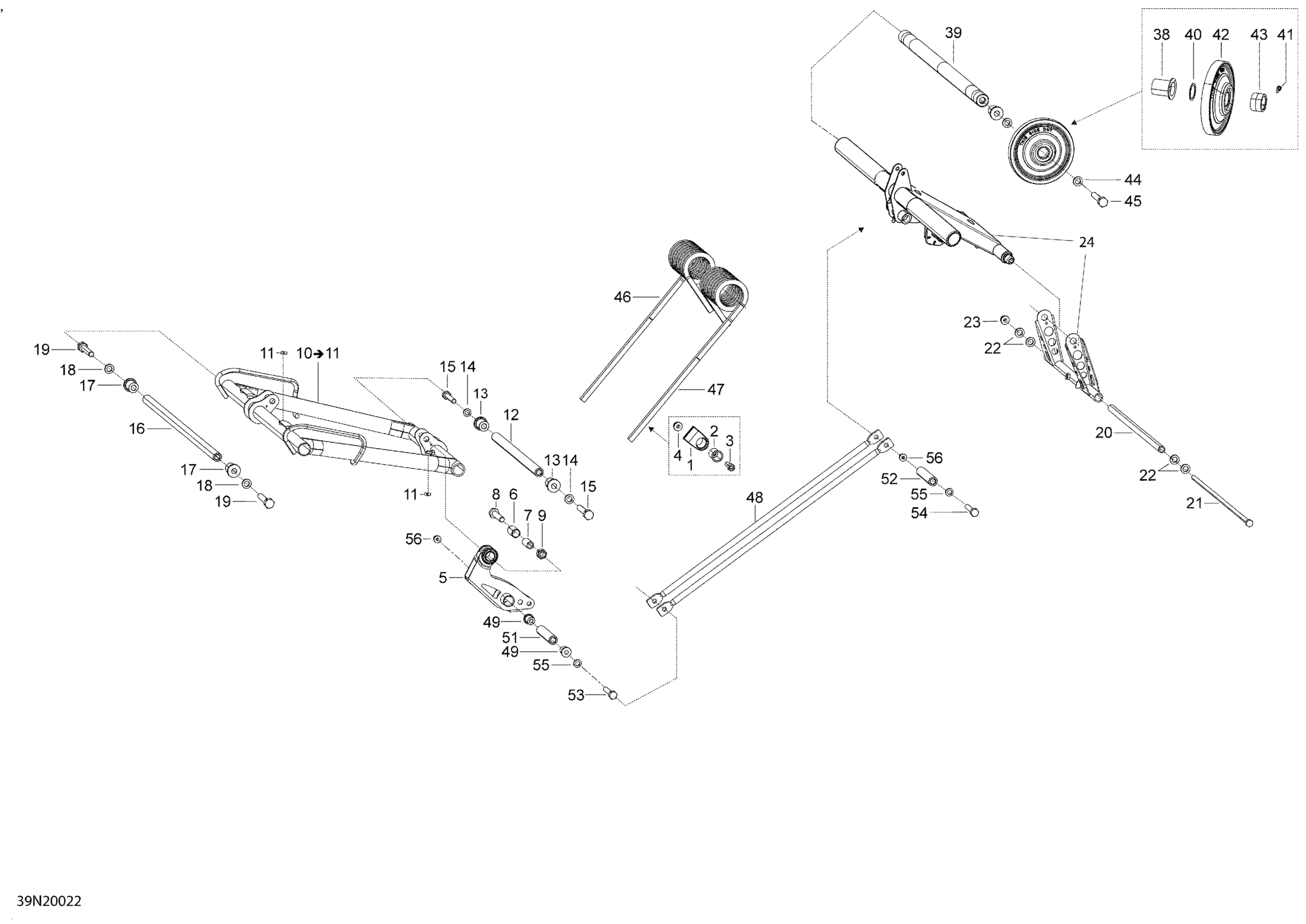

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Rocker

503192211

$78.43

6

Bushing

503193037

$15.35

7

Bushing | Includes 240d to 240d1

503189282

$4.18

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Front Arm Ass'y | Includes 1400 to 1400a

503193275

$276.89

11

Grease Fitting

408200700

$2.80

12

Lower Shaft

503191390

$27.66

13

Bushing

503189324

$11.17

14

Washer

503192496

$0.75

15

Hex. Screw S.Grip M10 X 55

250000605

$6.18

16

Upper Shaft

503191392

$46.12

17

Bushing

503189324

$11.17

18

Washer

503189564

$0.72

19

Hex. Screw S.Grip M10 X 55

250000605

$6.18

20

Axle Pivot

503191396

$78.43

21

Bolt 369MM

503195156

$25.35

22

Washer

503189157

$3.20

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Rear Arm Ass'y | Includes 3000 to 3000q

503195402

$258.43

38

Cushion

503191451

$11.17

39

Upper Shaft

503195202

$89.20

40

Washer

503190328

$11.34

41

Socket Set Screw M6 X 8

206260844

$1.25

42

Wheel 165 | Includes 3070 to 3070a

503190803

$49.97

43

Retaining Ring

503194674

$13.15

44

Washer

503192491

$4.38

45

Socket Screw M12 X 35

250000484

$6.18

46

Painted Square Spring, RH

503192910

$120.74

47

Painted Square Spring, LH

503192911

$120.74

48

Link Rod

503191765

$17.66

49

Swivel Bushing

503191555

$5.71

51

Axle Bar (Long)

503190643

$15.35

52

Axle Bar (Long)

503190643

$15.35

53

Hex. Screw M8 X 90

207089044

$2.82

54

Hex. Screw M8 X 90

207089044

$2.82

55

Washer

503189157

$3.20

56

Hex. Flange Elastic Nut M8

233281414

$1.14
