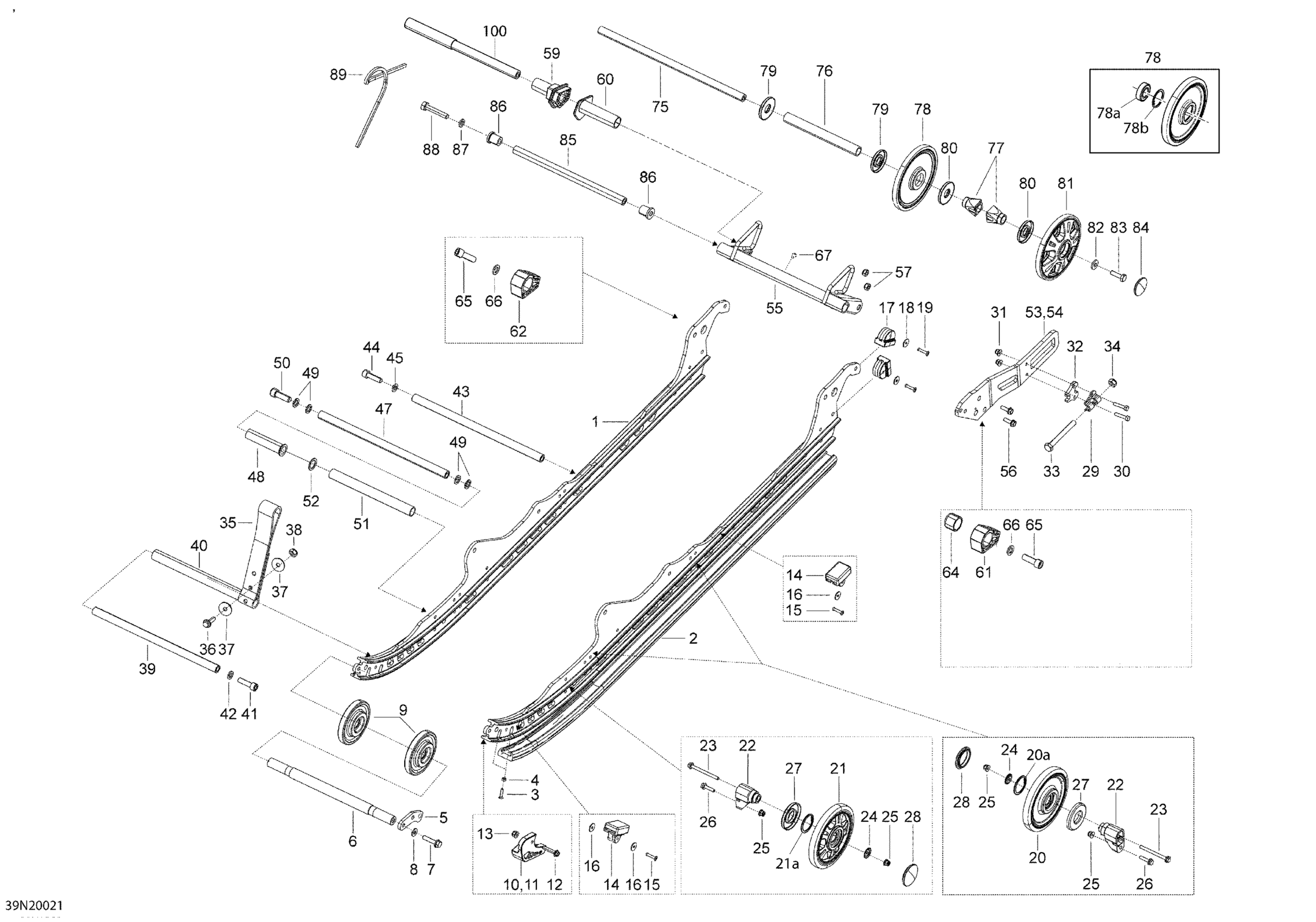

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Suspension, Rear - Lower Section Diagram

#

Description
Price

1

Runner

503194188

$217.13

2

Black Slider, 154"

503192618

$32.06

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561414

$1.78

5

Plate

503192612

$11.10

6

Front Wheel Shaft

503193053

$41.76

7

Hex. Flange Screw M8 X 35

250000986

$2.00

8

Washer

503189157

$3.10

9

Black, Wheel Ass'y, 100 mm

503192611

$31.31

10

RH Protector

503192610

$26.09

11

LH Protector

503192609

$26.09

12

Hex. Flange Screw M8 X 40

207684044

$1.43

13

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Rubber Stopper

503190576

$9.93

15

Pop Rivet 3/16

293150224

$0.96

16

Washer

503191273

$1.03

17

Rubber Stopper

503191291

$17.88

18

Pop Rivet 3/16

293150224

$0.96

19

Washer

503191273

$1.03

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

20a

Retaining Ring

415129371

$8.66

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

21

Retaining Ring

415129371

$8.66

21a

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

22

Casted Support

503193894

$12.37

23

Hex. Flange Screw M6 X 70

207667056

$4.15

24

Wheel Cup M6

503191820

$4.52

25

Hex. Flange Elastic Nut M6

233261466

$1.91

26

Hex. Flange Screw M6 X 25

207662556

$4.15

27

Labyrinth Seal

503190434

$4.16

28

Black, Wheel Cap

503192771

$2.21

29

Tensioner

503192583

$5.67

30

Hex. Cap Screw M6 X 30

207063054

$5.06

31

Hex. Flange Elastic Nut M6

233261466

$1.91

32

Spacer

503193250

$13.54

33

Hex Screw M10 x 100

230100054

$6.07

34

Elastic Locking Nut M10

233601466

$2.00

35

Stopper Strap

503192360

$19.37

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

37

Flat Washer

224081301

$0.84

38

Hex. Flange Elastic Nut M8

233281414

$1.31

39

Axle Strap

503192623

$59.67

40

Spacer

503192679

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

42

Washer

503189564

$0.70

43

Axle Strap

503191418

$53.70

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

45

Washer

503189564

$0.70

47

Shaft

503193967

$124.60

48

Center Bushing

503191259

$8.70

49

Washer

503189276

$3.10

50

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

51

Spacer

503191421

$44.75

52

Washer

503189273

$3.10

61

LH Block

503193084

$51.46

62

RH Block

503193085

$51.46

100

Cam Shaft

503193086

$33.55

59

RH Spring Cam

503191190

$13.37

60

LH Spring Cam

503191668

$9.88

64

Block Guide

503189488

$36.54

65

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

66

Washer | 7415/7416. 7417/7418.

503189148

$2.64

75

Rear Axle

503191408

$65.64

76

Spacer

503193051

$14.90

53

Runner Pivot RH

503192893

$212.66

54

Runner Pivot LH

503192892

$212.66

55

Welded Pivot | Includes 100c to 100c3

503191414

$93.25

56

Hex. Flange Screw M8 X 25

207682534

$1.03

57

Hex. Elastic Stop Nut M8

232581414

$0.54

67

Grease Fitting

408200700

$3.21

77

Rear Wheel Spacer

503190428

$5.88

78

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$48.48

78a

Ball Bearing | Package-STD

503190396

$8.18

78b

Retaining Ring

415129371

$8.66

79

Labyrinth Seal

503190682

$5.67

80

Labyrinth Seal

503190434

$4.16

81

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

82

Washer

503190439

$5.64

83

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

84

Black, Wheel Cap

503192771

$2.21

85

Lower Shaft

503191390

$26.84

86

Bushing

503189324

$10.84

87

Washer

503192496

$0.73

88

Hex. Screw S.Grip M10 X 55

250000605

$7.09

89

Spring

503194624

$29.07
