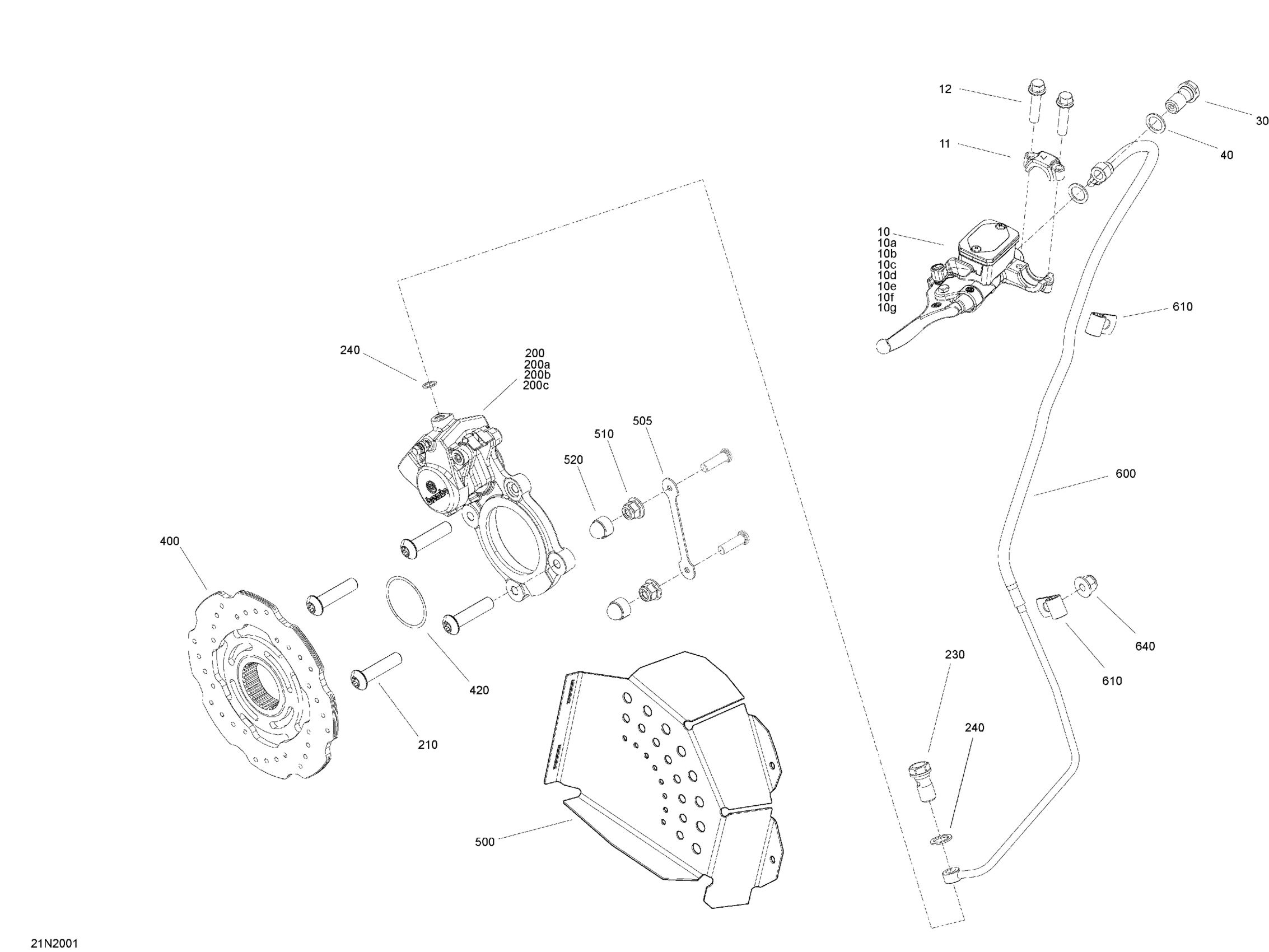

Ski-Doo 007 - EXPEDITION SWT 900 ACE - North America, 2020 06- Brakes - System Diagram

Description

Price

Master Cylinder Ass. | Includes 10 to 10g

507032596

$224.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10c

Hex. Flange Screw M6 X 25

250000447

$2.11

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10e

Screw M4 X 20

415129356

$2.22

10f

Pin Ass'y

415030000

$19.99

10g

Microswitch This part replaces 507032592.

507032597

$68.99

Clamps | Includes 75a to 75b

719000049

$14.83

Hex. Flange Screw M6 X 25

250000447

$2.11

Banjo Bolt

507032551

$5.61

Copper Washer

705601628

$4.44

200

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt

507032551

$5.61

240

Copper Washer

705601628

$4.44

400

Disk

507032513

$243.99

420

O-ring

293300209

$2.32

500

Disk Protector | WT

507032537

$60.99

505

Counter Plate | Includes 505 to 505a

518328661

$19.99

510

Hex. Flange Elastic Nut M6

233261494

$1.58

520

Hexagonal Cap

293900129

$2.11

600

Hose, Steel Braided | SWT

507032547

$47.49

600

Hose, Steel Braided | WT

507032548

$47.49

610

Open Clamp

414108400

$3.17

640

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
