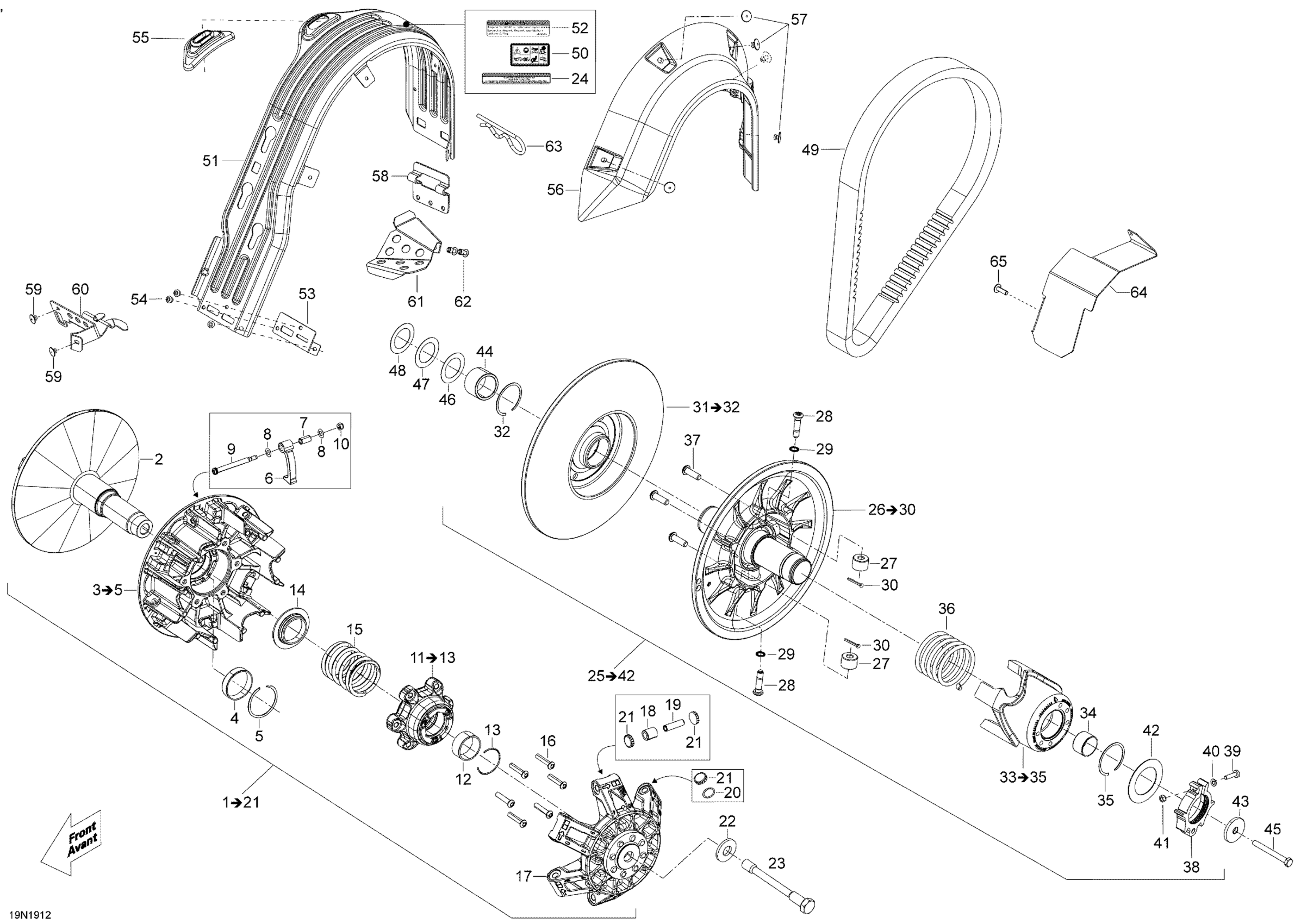

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Pulley - System Diagram

#

Description
Price

2

Fixed Flange Ass'y

417224091

$170.12

3

Flange Slide Ass'y

417224044

$188.03

4

Bushing

417222758

$20.12

5

Circlip

293370037

$2.93

6

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

417224228

Unavailable

6

Ramp 740 | North America

417223906

$35.04

8

Stopper Washer

417223660

$3.01

9

Ramp Axle

417223694

$4.46

10

Elastic Stop Nut M5

232551414

$0.82

11

Spring Cover Ass'y

417223650

$44.00

12

Not Available As Spare Parts

XXX

Unavailable

13

Circlip

293370065

$0.93

14

Seat Spring

417223752

$13.03

15

Clutch Spring

417223745

$14.90

15

Spring (Red/Orange) | Europe

417223749

$14.90

16

Torx Screw M6 X 30

250000580

$4.87

17

Governor Cup Ass'y

417223865

$170.12

18

Roller

417223767

$7.15

19

Roller Axle

417223257

$6.37

20

O-Ring

293300185

$0.93

21

Slider Shoe

417223919

$3.57

22

Conical Spring Washer M14

250200144

$4.16

23

Pulley Drive Bolt

417300432

$41.76

24

Decal English

516005503

Unavailable

26

Fixed Flange Ass'y

417127433

$563.40

27

Roller

417127189

$43.25

28

Pivot Stud

417127294

$13.18

29

Lock Washer 8 mm

250200009

$2.00

30

Spring Pin M3 X 30

250400063

$2.00

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

32

Circlip

293370049

$4.57

33

Cam Ass'y

417127411

$160.42

34

Not Available As Spare Parts

XXX

Unavailable

35

Circlip

293370049

$4.57

36

Release Spring

417127467

$43.25

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

38

Calibration Ass'y

415129604

$22.49

39

Socket Screw M5 X 25

205052544

$1.54

40

Flat Washer M5

234051410

$0.51

41

Elastic Stop Nut M5

232551414

$0.82

42

Washer

417127155

$7.79

43

Strength Washer

517302322

$10.76

45

Hex. Cap Screw M8 X 80

207588044

$2.91

46

Spacer

417300252

$5.01

46

Spacer

417300252

$5.01

47

Spacer

417300265

$2.06

48

Shim

504112000

$5.87

49

Drive Belt

417300551

$167.13

50

Warning Decal | Europe

516003919

$7.42

51

Belt Guard

417300382

$82.81

52

Security Label, Belt Guard

516006900

Unavailable

53

Reinforcement

417300380

$5.01

54

Avex Rivet

390909200

$0.28

55

Guide

417300381

$8.73

56

Side Protector

417300356

$12.85

57

Pop Rivet 3/16"

293150103

$0.52

58

Belt Guard Bracket | Except Package SWT

417300363

$11.84

58

Belt Guard Bracket | Package SWT

417300413

$6.90

59

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

60

Belt Guard Bracket

417300364

$27.58

61

Brake Hose Cover | Except Package SWT

518325626

$27.58

61

Brake Hose Cover | Package SWT

518327035

$10.69

62

Rivet Hucklok

293150163

$2.73

63

Hair Pin

114045200

$10.37

64

Air Duct | North America

417300468

$45.49

64,1

Clinch Nut M6 Hexsert

605636003

$4.00

65

Torx Screw M6 X 20

250000722

$1.54

65

Hemlock Rivet, 6.5 mm

293150096

$3.07
