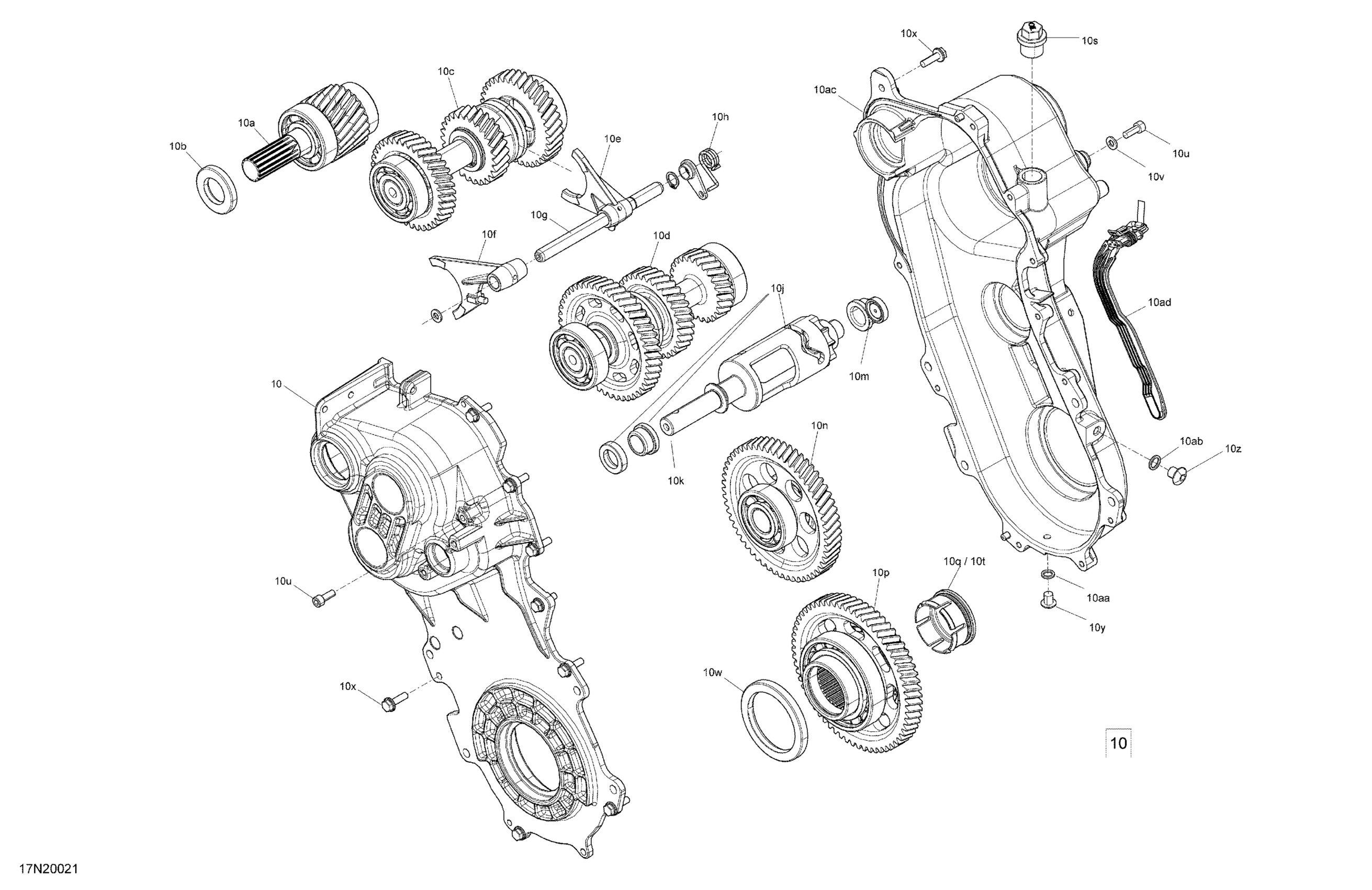

Ski-Doo 007 - EXPEDITION SWT 900 ACE - North America, 2020 05- Drive - System - Transmission Fast Ratio Diagram

Description

Price

Transmission Ass'y (Fast Ratio)

619230078

$2.00

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

10a

Countershaft Ass'y | Gear Box 1.98

619230009

$635.99

10a

Counter Shaft Ass'y | Gear Box 2.30

619230044

$614.49

10b

Oil seal

619230010

$18.49

10c

Main Shaft Ass'y | Gear Box 1.98

619230053

$519.49

10c

Main Shaft Ass'y | Gear Box 2.30

619230054

$582.49

10d

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$603.99

10d

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$614.49

10e

Fork, Forwards

619230055

$149.99

10f

Fork, reverse

619230015

$209.99

10g

Shaft

619230016

$30.49

10h

Spring

619230017

$16.99

10j

Shifting Drum

619230056

$209.99

10k

O-Ring

619230079

$25.49

10m

Locking lever

619230021

$56.99

10n

Middle gear

619230022

$239.99

10p

Lower gear

619230023

$439.99

10q

Magnetic Plug

619230070

$24.99

10s

Oil Plug

619230027

$41.49

10t

O-Ring

619230069

$8.96

10u

Screw

619230029

$5.40

10v

Washer

619230030

$8.04

10w

Oil seal

619230031

$20.49

10x

FLANGED SCREW 10.9 DTM M6X20 GRIP - Call your local BRP dealership

619230076

Unavailable

10y

Allen Screw M8 x 10

619230037

$6.03

10z

Allen Screw M10 x 16

619230038

$4.02

10aa

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

10ab

Seal Ring

619230047

$4.02

10ac

Outside Cover

619230060

Unavailable

10ad

Rotation Sensor

504152896

$37.99
