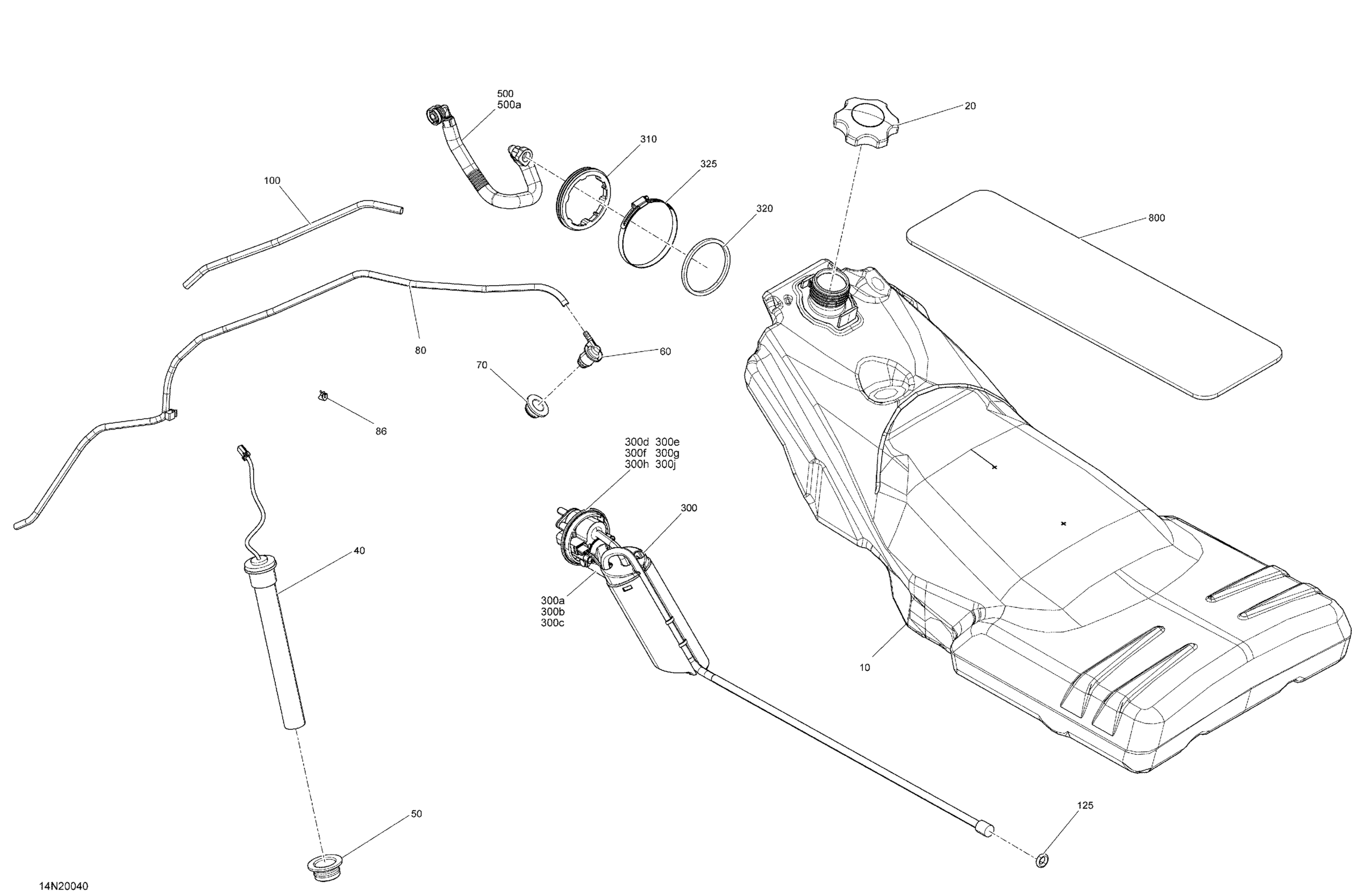

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513033757

$535.04

20

Fuel Tank Cap

513033943

$24.60

40

Fuel Sensor

513033902

$75.34

50

Grommet

293720113

$10.67

60

Check Valve

513033842

$32.81

70

Grommet

513033596

$17.88

80

Polyurethane Hose 10000Mm Long

219704410

$52.96

86

Spring Clamp

414554800

$0.81

100

Protector Tube

504153468

Unavailable

125

O Ring

293300184

$3.19

300

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$249.97

300a

O-Ring

415129509

$17.88

300b

Fuel Filter

415129510

$23.10

300c

O-Ring

415129511

$16.39

300d

Wave Washer

415129512

$17.88

300e

Screw

415129513

$8.73

300f

Cover

415129685

$29.07

300g

Fuel Pump Ring

415129569

Unavailable

300h

Fuel Filter

415129451

$23.10

300j

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

310

Ring

513033180

$17.13

320

Gasket

513033334

$22.36

325

Clamp

513033628

$20.12

500

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

500a

Locking Clip

513033135

$4.96

800

Insulate Foam

513033788

$8.48
