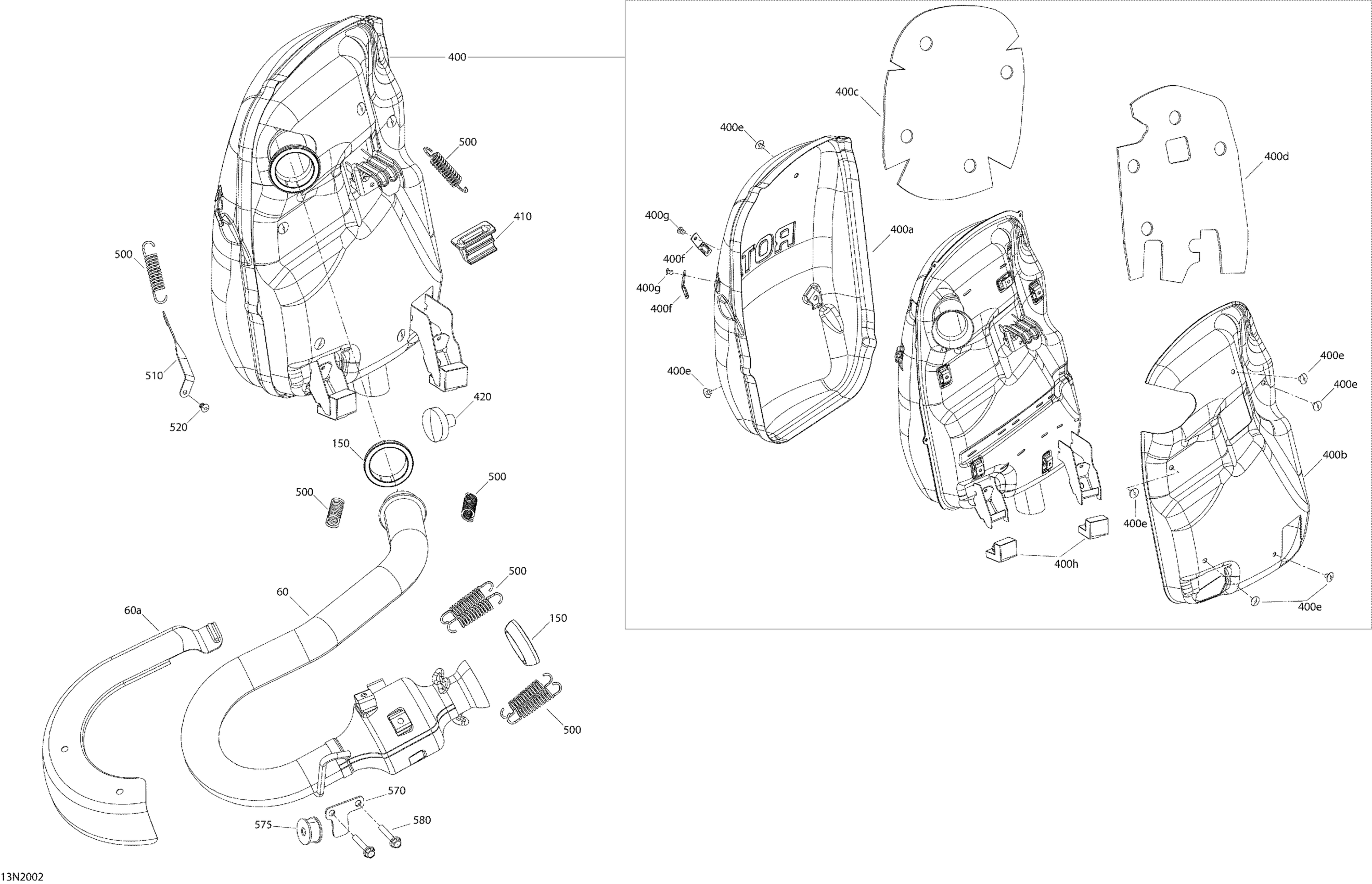

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Engine - Exhaust Diagram

Description

Price

Tube | Includes 60 to 60c

514055424

$431.51

60a

Exhaust Deflector

514054397

$43.82

60b

Rivet 6,4 mm

293150173

$3.38

60c

Tridon Clamp

293650036

$5.86

150

Exhaust Gasket

707601033

$13.29

400

Muffler Ass'y | Includes 400 to 400h

514055326

$738.43

400a

RH Heat Shield

514055325

$54.58

400b

LH HEAT SHIELD - Call your local BRP dealership

514055128

Unavailable

400c

RH Insulating Wool

514054769

$11.63

400d

LH Insulating Wool

514054881

$13.77

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Spring Bracket

514054522

$6.28

400g

Avex Rivet

390909200

$0.29

400h

Lower Stopper

514054529

$17.66

410

Stopper

514054346

$18.43

420

Rubber Bumper

514053654

$49.20

500

Spring

415107100

$6.20

510

Spring Bracket

514055317

Unavailable

520

Avex Rivet

390909100

$0.29

570

Support

514054939

$27.66

575

Anti-Vibration Rubber

707600702

$8.34

580

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74
