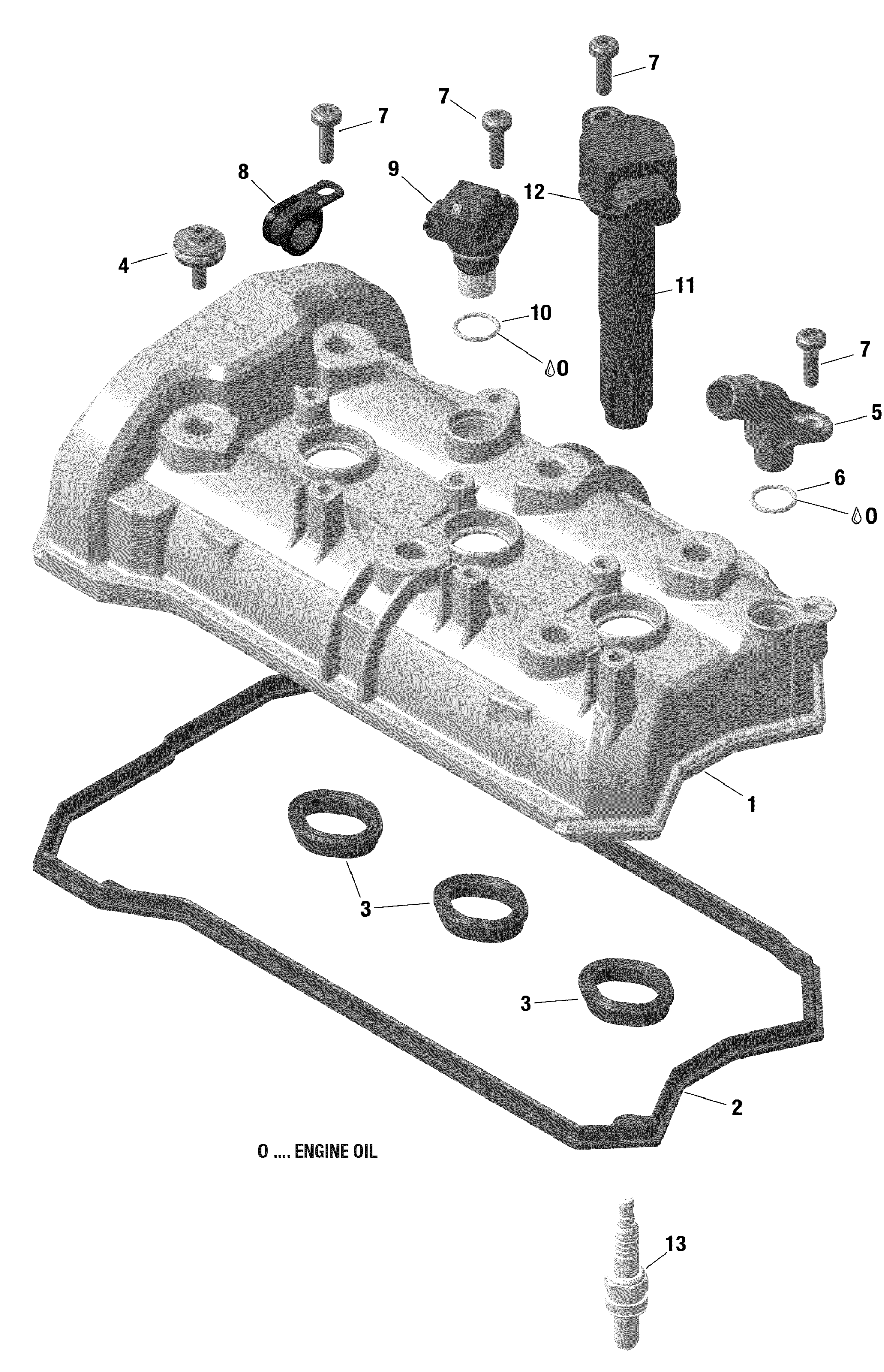

Ski-Doo 007 - EXPEDITION SWT 900 ACE - North America, 2020 01- Engine - Valve Cover - 900 ACE Diagram

#

Description

Price

1

Valve Cover

420911492

$74.49

2

Valve Cover Gasket

420431801

$20.49

3

Valve Cover Gasket

420431751

$3.17

4

Torx Distance Screw M6

420440495

$8.11

5

Blow By Connector

420611242

$13.16

6

O-Ring

420631240

$2.11

7

Torx Flange Screw M6 X 20

420441386

$2.11

8

Cable Clamp

420851492

$14.28

9>10

Camshaft Position Sensor Ass'y

420664046

$88.99

10

O-Ring

420631890

$5.18

11>12

Stick Coil | Includes 5 to 6

420666142

$59.99

12

Protection Cap

420201430

$7.51

13

Spark Plug NGK MR8BI-8 This part replaces 420897093.

415129944

$21.99
