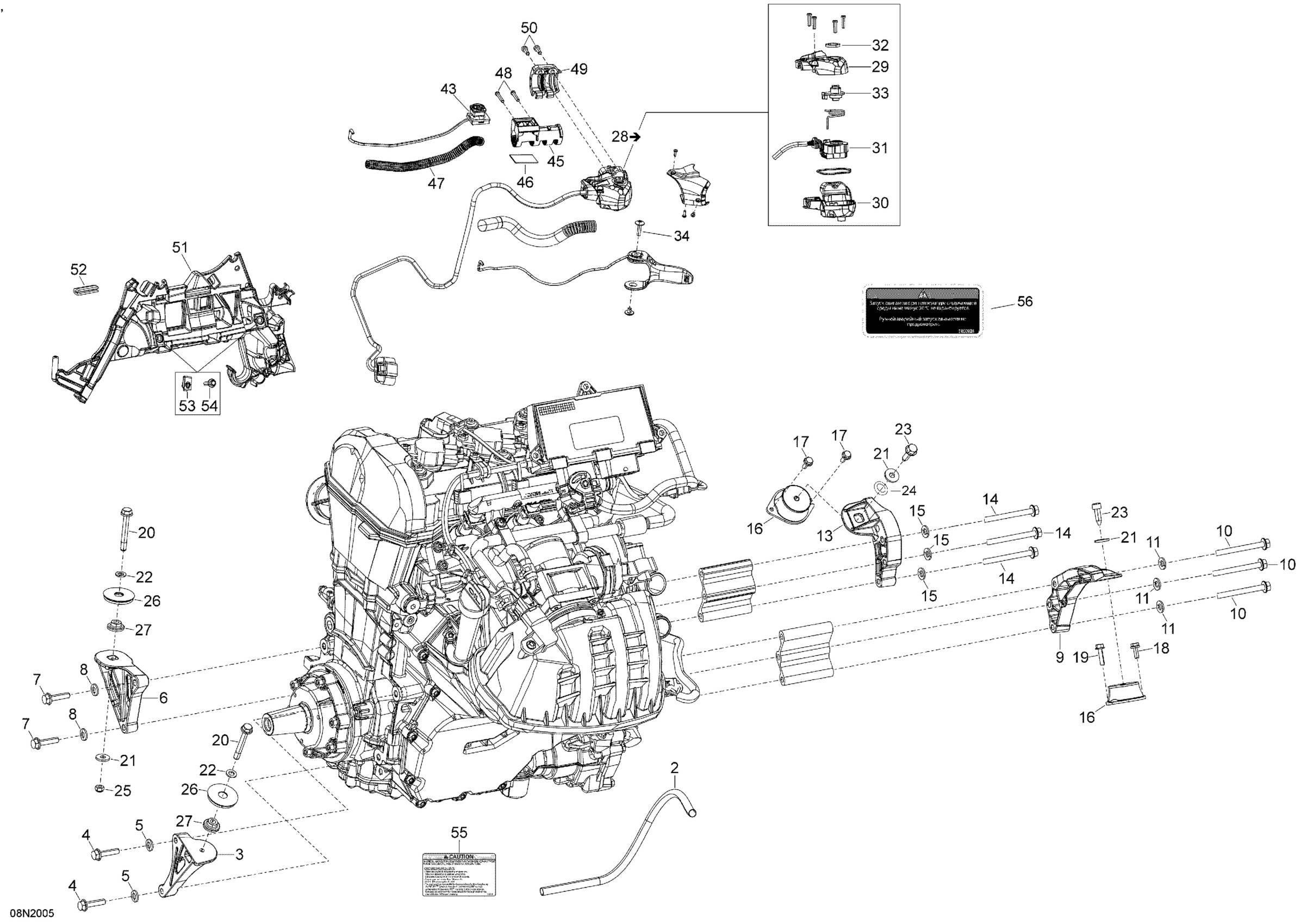

Ski-Doo EXPEDITION SWT 900 ACE - 2020 Engine - System Diagram

Protector Tube

512061067

$22.36

Rear Support PTO

512061139

$23.10

Hex. Flange Screw M8 X 35

250000986

$2.00

Conical Spring Washer M8

250200146

$0.96

Front Support PTO

512061140

$17.13

Hex. Flange Screw M8 X 35

250000986

$2.00

Conical Spring Washer M8

250200146

$0.96

Rear Support MAG

512061142

$26.84

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

Conical Spring Washer M8

250200157

$2.00

Front Support MAG

512061141

$17.88

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

Conical Spring Washer M8

250200157

$2.00

Rubber Mount

512060729

$67.88

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Screw M6 X 25

207562544

$1.60

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

Yellow, Washer

503183200

$2.91

Flat Washer With Teflon 8 mm

250200008

$3.58

Cone Screw, M8 X 30

250000257

$1.67

Cone Screw, M8 X 25

250000639

Unavailable

O-Ring

293300123

$0.97

Hex. Elastic Stop Nut M8

232581414

$0.54

Engine Stopper

512061536

$17.88

Spacer

512060285

$17.13

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

Handle Ass'y kit

415130047

$94.00

Cap

512060862

$11.22

Torx Screw M2.9 x 9.5

250000623

$3.01

Torx Screw

250000671

$0.96

Screw

512060961

$10.21

Torx Screw M5 X 20

250000528

$2.00

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

Switch Support

512061453

$8.13

Friction Tape

294000973

$8.70

Protector Tube

515177946

$4.09

Torx Screw #8-18

250000263

$0.99

Front Housing

512060987

$8.09

Torx Screw M5 X 14

250000632

$7.09

Module Support

512060994

$14.10

Trim 1000Mm Long

219704354

$14.30

Panel Nut M5 X 0.8

250000958

$4.00

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

Caution Decal, Oil Level

516005521

Unavailable

Warning Decal

516009934

Unavailable
