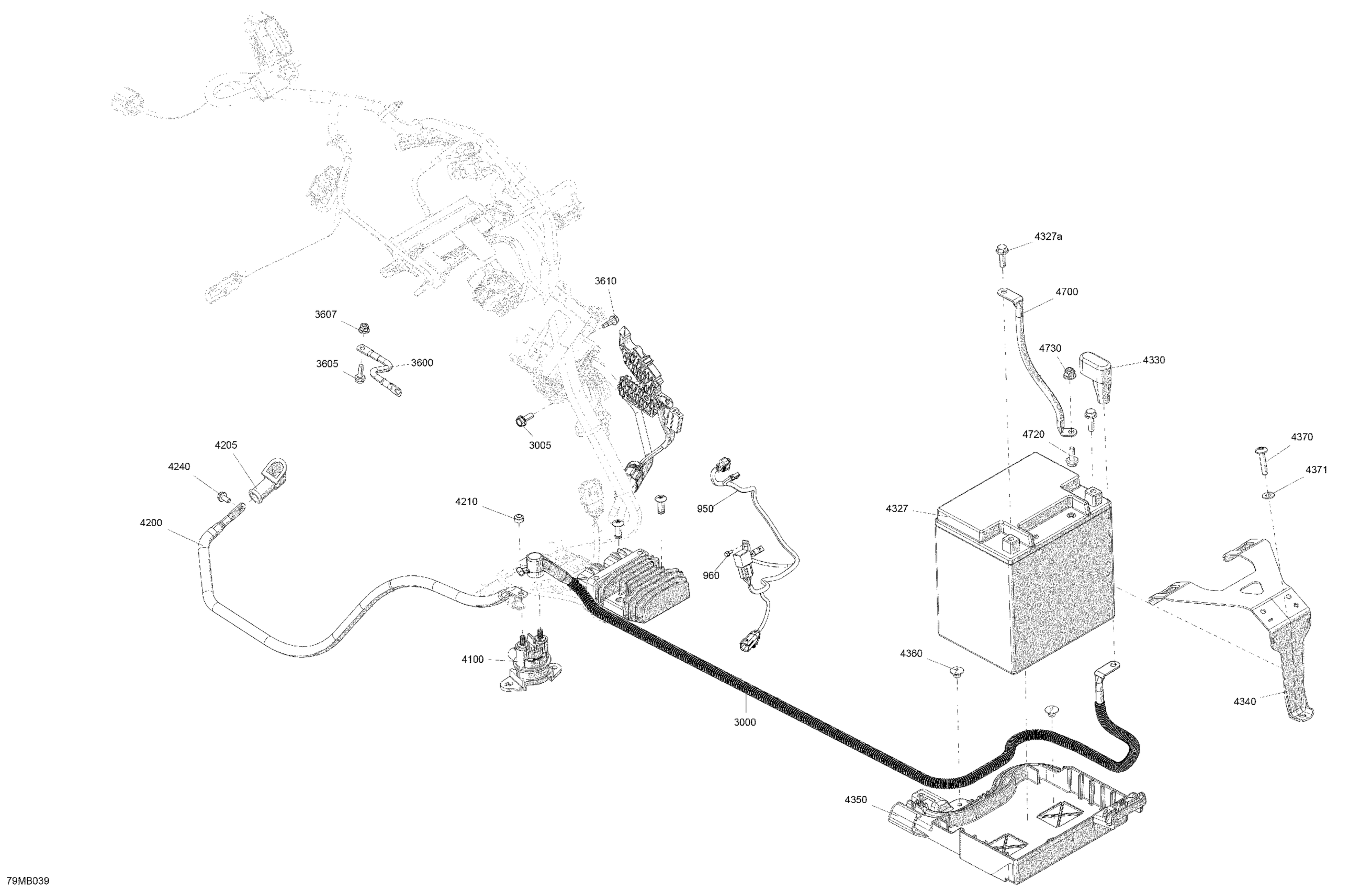

Ski-Doo EXPEDITION SE 600R E-TEC - 2022 Electric - Lower Section Diagram

Description

Price

950

Wiring Harness Compressor

515178524

$42.28

960

Hex Flange Screw M5 X 11

210251150

$1.74

3000

Chassis Wiring Harness

515178956

$306.12

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3600

Ground Wire

515178248

$23.82

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4100

Starter Relay

278003012

$35.07

4200

Positive Cable

515178919

$28.43

4205

Protector Cap

710000495

$10.14

4210

Elastic Stop Nut M6

232561434

$1.55

4240

Hex. Flange Screw M5 X 10

207551044

$3.38

4327

Battery | Includes 900 to 900a

515176151

$174.17

4327a

Battery Bolt Kit

515176081

$5.10

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip

515178658

$29.97

4350

Battery Support Under

515178659

$13.85

4360

Pop Rivet 3/16"

293150103

$0.54

4370

Torx Truss Screw M6 X 30

250000843

$1.74

4371

Flat Washer

224061121

$0.44

4700

Cable

515178564

$19.20

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74
