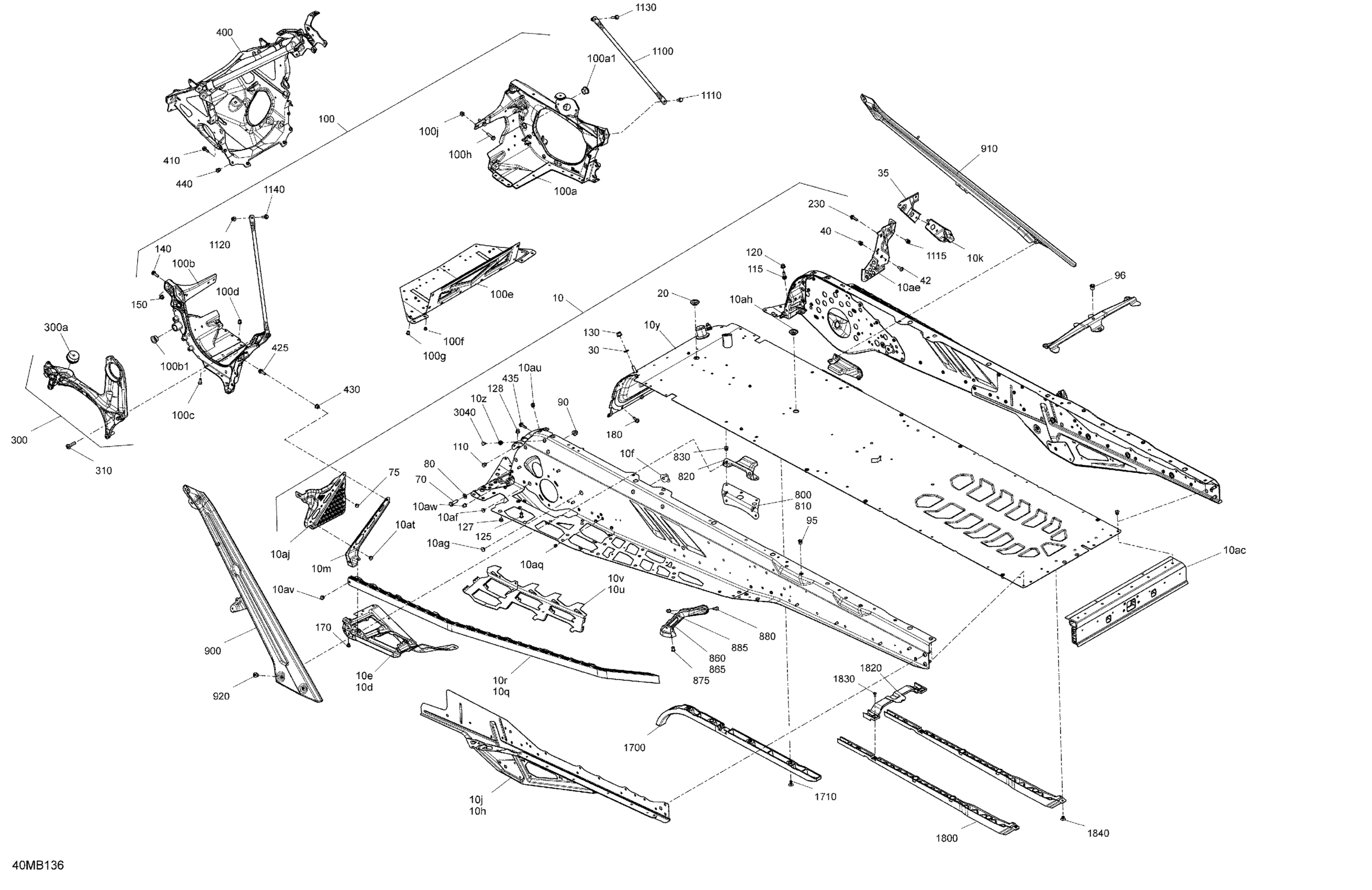

Ski-Doo EXPEDITION SE 600R E-TEC - 2022 Frame - System Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3,299.97

Liquid Titan, Chassis Tunnel Module 154" | Includes 10 to 10aw

415130493

$3,507.66

Deep Black, RH Footrest Reinforcement

518332803

$79.97

Deep Black, LH Footrest Reinforcement

518332802

$16.89

Front Suspension Arm Reinforcement

518335959

$3.85

RH Rear Suspension Support

518332254

$102.28

LH Rear Suspension Support

518332253

$102.28

RH Footrest Reinforcement

518329789

$18.43

Deep Black, LH Chassis Reinforcement

518332924

$18.43

RH Roller

518329648

$180.74

LH Roller

518328452

$180.74

RH Tunnel Liner

518329646

$33.05

LH Tunnel Liner

518329647

$33.05

Radiator Tunnel Ass'y 154

518332622

$693.05

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Cap

518332315

$66.89

RH Footrest

518331822

$23.05

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Dart

293730079

$1.92

Black, Plug

293730052

$6.37

LH Footrest

518332978

$40.74

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Collar Huck Magna-Grip 6.4

293150149

$0.37

Black, Plug

293730052

$6.37

Flat Washer 8 mm

234081410

$0.69

RH Stirrup Reinforcement

518331727

$18.43

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

Hex Screw M8 X 30

250000942

$0.92

Hemlock Rivet, 6.5 mm

293150096

$3.17

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Insert

293450275

$9.89

Insert

293450275

$9.89

Engine Chassis Module Ass'y | Includes 100 to 100j

518332685

$569.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hemlock Rivet 6.5 mm

293150120

$7.23

Rivet 6,4 mm

293150173

$3.38

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 20

207562056

$1.74

Ornit Rivet 6,5 X 14.5

293150266

$1.94

LH Under Chassis Reinforcement

518331729

$11.12

RH Under Chassis Reinforcement

518331731

$18.43

Cross Member Support

518331733

$30.74

Hemlock Rivet, 6.5 mm

293150119

$4.00

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

Rivet

293150183

$2.06

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$108.43

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Insert

293450275

$9.89

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Rear Protector

518329979

$7.55

Central Protective Structure

518333936

$3.40

Torx Truss PT K40 x 12

250001131

$1.74

Pop Rivet 3/16”

293150108

$1.23

Dart

293730079

$1.92
