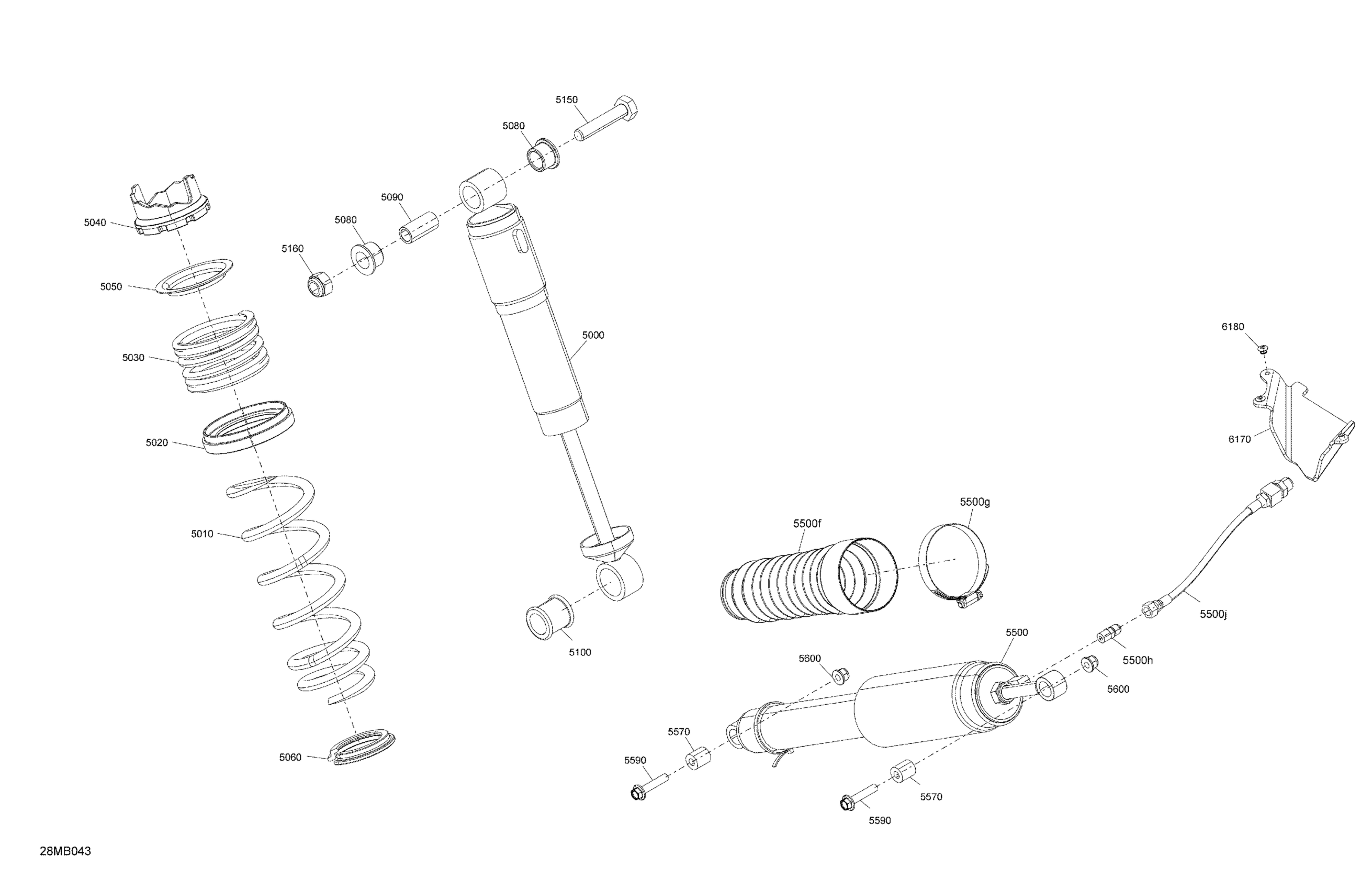

Ski-Doo EXPEDITION SE 600R E-TEC - 2022 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock

503192991

$231.31

5010

Deep Black, Spring (189mm) Long

503193160

$85.79

5020

Spring Spacer

503191281

$7.43

5030

Black, Spring (51mm) Short

503193837

$64.90

5040

Adjustment Cam

505073625

$11.82

5050

Spring Guide

503191872

$2.12

5060

Spring Stopper

503194270

$16.39

5080

Urethane Bushing

503189117

$6.67

5090

Bushing | Includes 240d to 240d1

503189282

$4.06

5100

Bushing

503189271

$10.15

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5160

Elastic Locking Nut M10

233601466

$2.00

5500

Rear Shock Ass'y | Includes 5500 to 5500k

503195082

$716.99

5500f

Protection Boot

570278300

$58.18

5500g

Tridon Clamp

293650064

$7.57

5500h

Male Pneumatic Connector

503191939

$44.75

5500j

Pneumatic Hose Ass'y

503195148

$117.13

5570

Bushing

414936000

$11.21

5590

Hex. Flange Screw M8 X 40

207684044

$1.43

5600

Elastic Flange Nut M8

233281466

$0.96

6170

Suspension Bracket

503195440

$17.88

6180

Black, 3/16 Pop Rivet

293150232

$0.93
