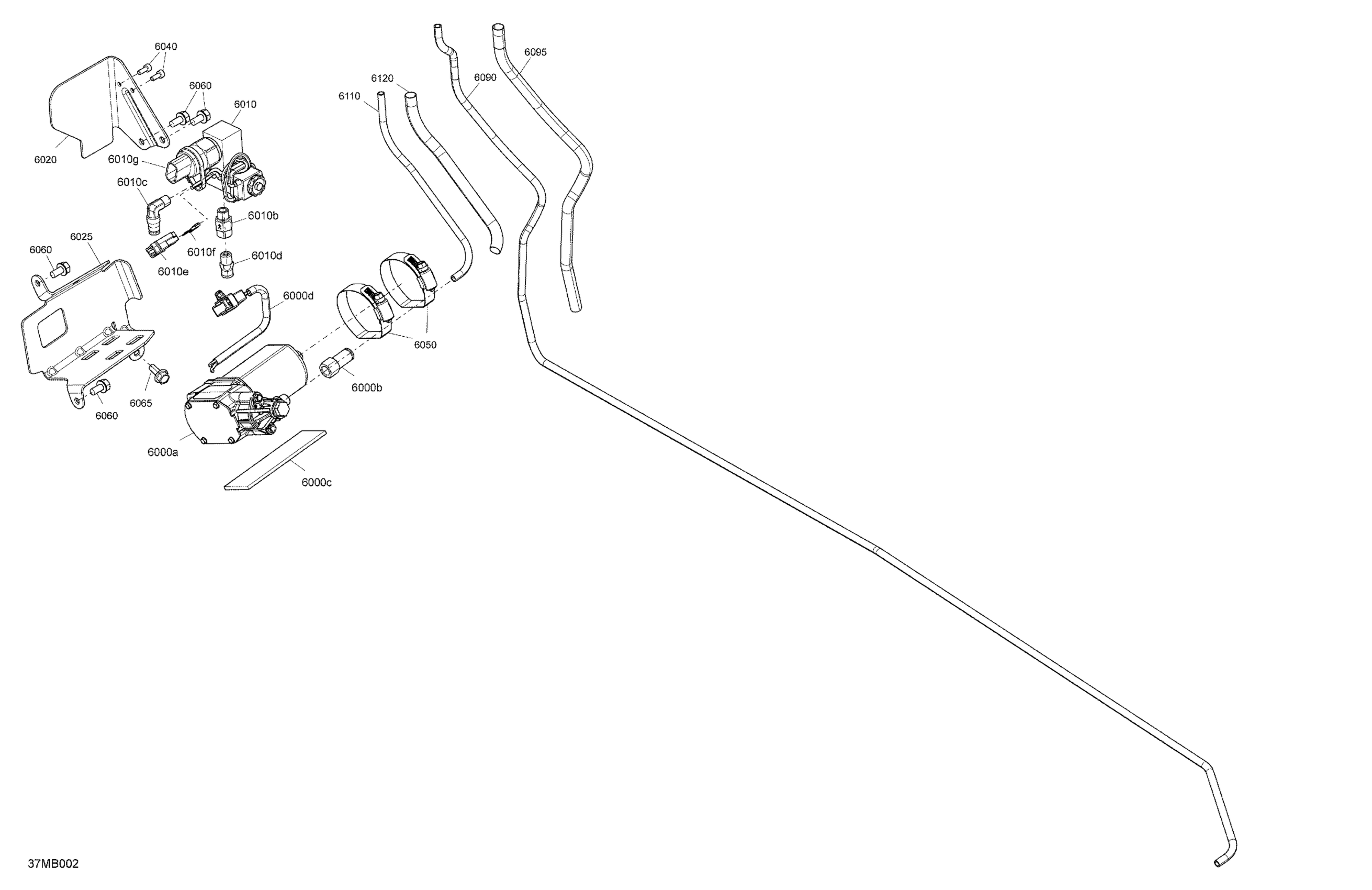

Ski-Doo EXPEDITION SE 600R E-TEC - 2022 Suspension - Air Compressor Diagram

Description

Price

6000a

Compressor

503194941

$422.36

6000b

Female Connector

706201253

$26.09

6000c

Rubber Damper

503191940

$8.46

6000d

Tubing 6 Mm 3000Mm Long

219704425

$12.75

6010

Air Manifold Ass'y | Includes 6010 to 6010h

503196324

$1,165.64

6010b

Check Valve

706000860

$38.78

6010c

Elbow 90°

706000872

$26.09

6010d

Connector

706000869

$32.06

6010e

Male Terminal Housing, 2 Circuits

515175654

$7.25

6010f

Male Terminal

515175232

$1.45

6010g

Air Suspension Sensor

515179088

$157.43

6020

Support

503194920

$38.78

6025

Support

503194921

$38.78

6040

Hexalob Screw M4 X 10

250000565

$2.00

6050

Norma Gear Clamp

293650090

$4.25

6060

Hex. Flange Screw M6 X 12

210261250

$1.79

6065

Hex. Flange Screw M6 X 16

207661654

$2.00

6090

Hose 4.32Mm 3000Mm Long

219704415

$50.72

6095

Protector Tube | Not shown

503195447

$12.21

6110

Hose

706000891

$8.40

6120

Protector Tube | Not shown

503195447

$12.21
