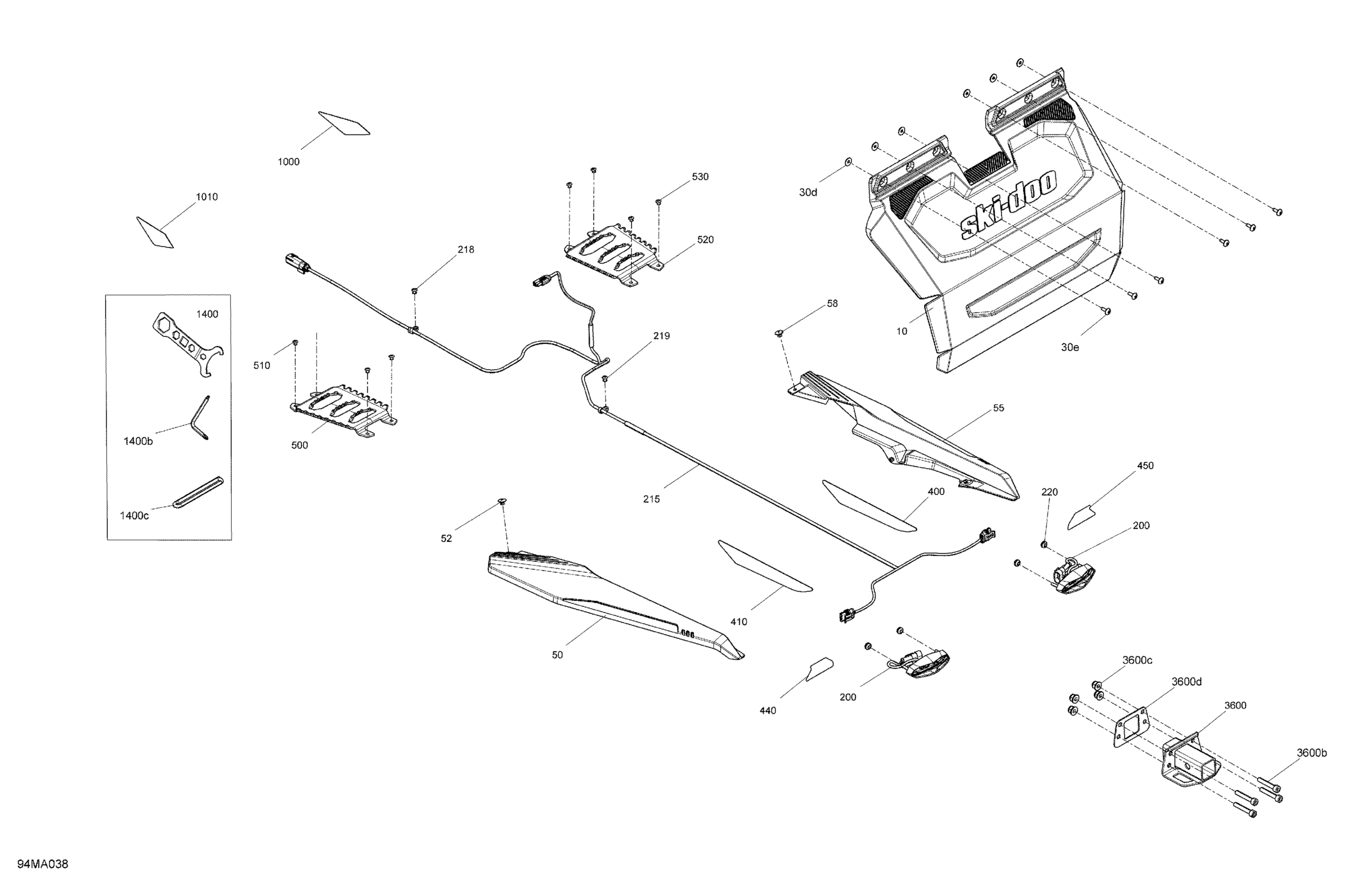

Ski-Doo EXPEDITION SE 600R E-TEC - 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520001712

$109.99

30d

Washer M5

250200025

$0.70

30e

Forming Screw M5 x 16

250000676

$0.96

LH Rear Guard

520001941

$13.36

Pop Rivet 3/16"

293150103

$0.52

RH Rear Guard

520001942

$13.36

Pop Rivet 3/16"

293150103

$0.52

200

Tail Light

520002636

$100.72

215

Taillight Wiring Harness

515178633

$57.43

218

Pop Rivet 3/16"

390402200

$0.30

219

Pop Rivet 3/16"

390402200

$0.30

220

Grommet

293720101

$0.70

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

440

LH Rear Red Reflector

520001740

$4.51

450

RH Rear Red Reflector

520002016

$4.51

500

Deep Black, Passenger Footrest

520002896

$44.75

510

Rivet 3/16"

293150102

$0.69

520

Deep Black, Passenger Footrest

520002896

$44.75

530

Rivet 3/16"

293150102

$0.69

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19

3600

Trailer Hitch Kit | Includes 3600 to 3600d

860202062

$49.97

3600b

Socket Head Screw M8 x 45

250001086

$11.18

3600c

Elastic Flange Nut M8

233281466

$0.96

3600d

Rear Chassis Reinforcement

511001377

$4.09
