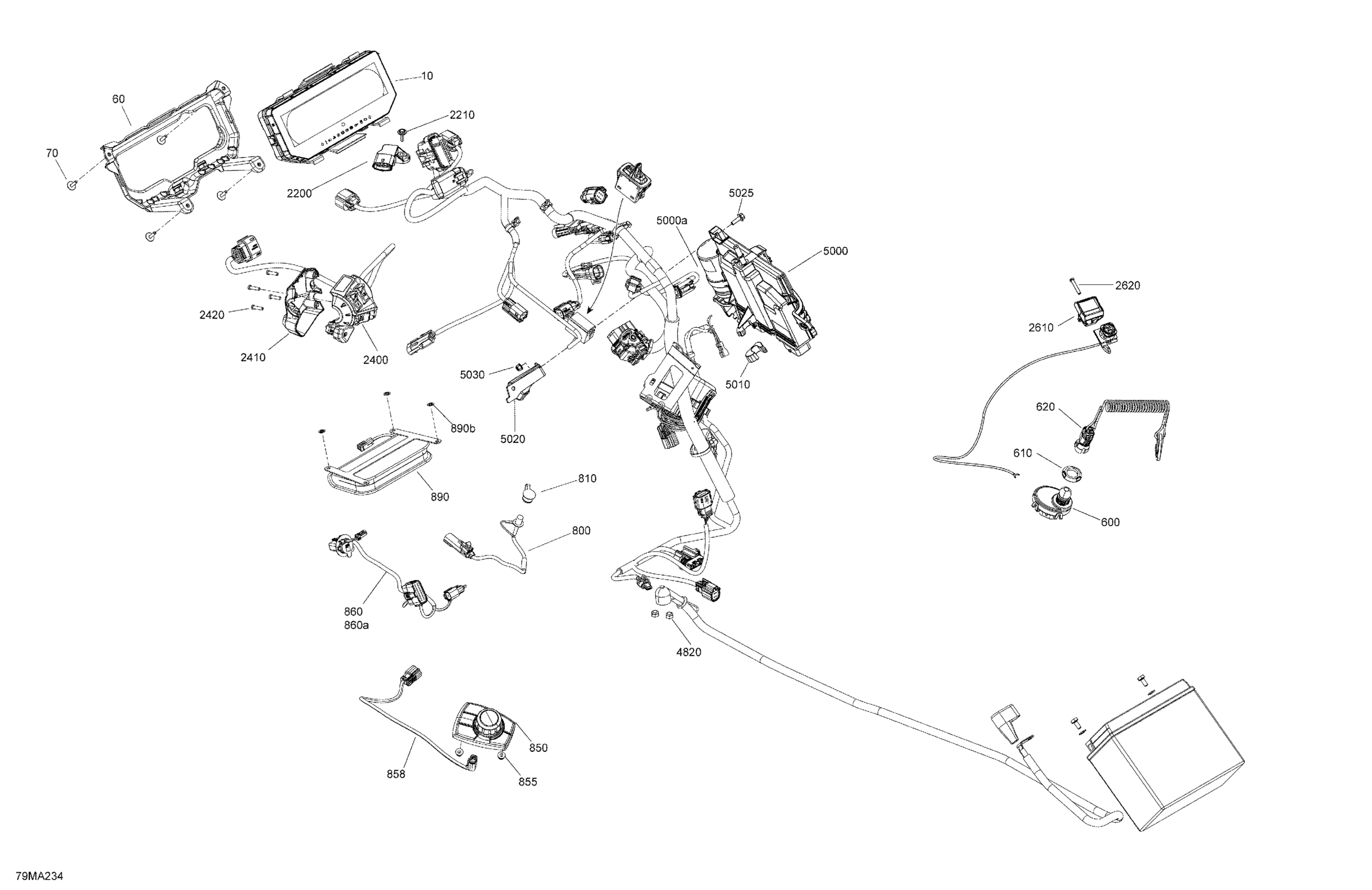

Ski-Doo 007 - EXPEDITION SE 600R E-TEC - North America, 2021 08- Electric - Upper Section Diagram

Full Size Color Multifunction Gauge

515179262

$1.00

Multifunction Gauge Full Size Mono

515178227

$559.99

Gauge Support

515178965

$6.69

Screw M4 X 16

250000725

$3.49

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

Heated Visor Wiring Harness

515178645

$38.99

Cap

572103300

$10.49

Switch

515178325

$509.99

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Adaptor Wiring Harness

515178958

$26.99

USB Wiring Harness | Includes 860 to 860a

515178758

$93.99

USB Connector

710006405

$41.49

Protective Bag | Includes 890 to 890a

515179153

$119.99

Push Nut

732610072

$2.19

Pressure And Temperature Sensor

707000995

$88.99

Screw M4 X 16

250000725

$3.49

LH Switch Housing

515178196

$284.99

LH Switch Housing

515178851

$284.99

Housing Plate

515177147

$20.99

Torx Screw

250000671

$1.01

Emergency Stop Switch Support

515177310

$9.19

Torx Screw #8-18

250000263

$1.04

Elastic Stop Nut M6

232561434

$1.99

Engine Control Module | Includes 5000 to 5000a

512061392

$589.99

Capacitor

515177272

$90.99

Rubber Stopper

515178430

$2.11

Support

515178930

$19.49

Hex. Flange Screw, Scotch Grip

207551634

$2.00

Flange Elastic Nut M5

233251434

$2.00
