Description

Price

10

Indicator | Except Package SWT

515177913

$569.99

10a

Speedometer Button | XTP

415129355

$15.80

10b

Gauge Ring

415129348

$13.99

10c

Lens | XTP

415129349

$24.49

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

1000

DC Outlet

710001248

$37.99

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2400

LH Switch Housing

515178197

$264.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

3000

WIRING HARNESS MAIN - Call your local BRP dealership

515178124

$589.99

3005

Eco Switch Wiring Harness This part replaces 515177568.

515179615

$104.99

3006

ECO Rocker Switch

515177569

$19.49

3010

Fusebox Support

515178394

$13.10

3011

Clip

270000141

$11.49

3012

Avdel Rivet 3/16"

293150037

$0.56

3013

Pop Rivet 3/16"

390402200

$0.35

3030

Velcro

293740059

Unavailable

3050

Connector Plug

710004904

$8.79

3201

Pan Screw Forming, 7500C

250000690

$2.11

3210

Male Terminal Housing, 6 Circuits

515175662

$8.79

3220

Male Terminal Housing, 4 Circuits

515175846

$8.79

3500

Compressor Module | With Air Suspension

515177125

$539.99

3510

Clip

710000992

$4.29

3515

Clip

414227300

$1.67

3525

Tubing 6 Mm 3000Mm Long

219704425

$13.75

3600

Ground Wire

515176883

$28.99

4200

Start cable 1000 mm.

515176779

$61.99

4205

Black, Dart

414644300

$0.98

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320a

Battery Bolt Kit

250000282

$7.29

4320

Battery | Includes 900 to 900a

515176151

$219.99

4320a

Battery Bolt Kit

515176081

$6.99

4350

Starter Relay

278003012

$42.49

4360

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4365

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4366

Lock Washer Serrated M6

250200041

$1.15

4700

Ground Wire

515176777

$62.99

4705

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4710

Lock Washer Serrated M6

250200041

$1.15

4800

Battery Wire

515176778

$58.99

4820

Elastic Stop Nut M6

232561414

$0.55

4830

Protector Cap

710000495

$10.99

7010

Aluminium Coated Fiberglass Tube

605355344

Unavailable

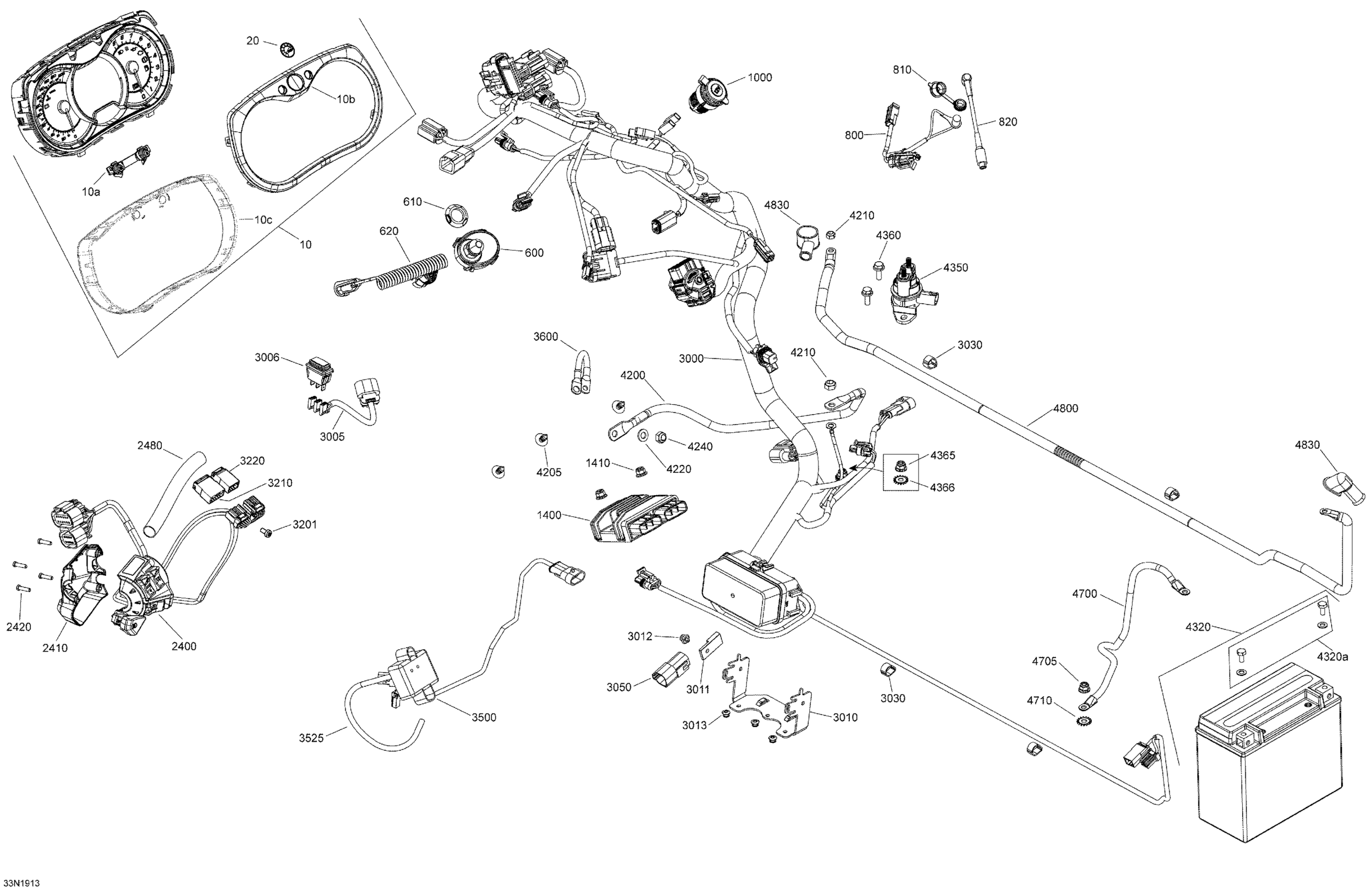

Ski-Doo 007 - EXPEDITION LE-SE 1200 4-TEC, 2019 10- Electrical - 1200 4-TEC Diagram

Indicator | Except Package SWT

Speedometer Button | XTP

Gauge Ring

Lens | XTP

BRP Logo 20MM x 2MM | XTP

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Grey, RF Key Ass'y | Includes 620 to 620d

DC Outlet

Voltage Regulator | Package-DPS, Model-Europe

Hex. Flange Elastic Nut M6 x 1.0

LH Switch Housing

Housing Plate

Torx Screw

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

WIRING HARNESS MAIN - Call your local BRP dealership

Eco Switch Wiring Harness This part replaces 515177568.

ECO Rocker Switch

Fusebox Support

Clip

Avdel Rivet 3/16"

Pop Rivet 3/16"

Velcro

Connector Plug

Pan Screw Forming, 7500C

Male Terminal Housing, 6 Circuits

Male Terminal Housing, 4 Circuits

Compressor Module | With Air Suspension

Clip

Clip

Tubing 6 Mm 3000Mm Long

Ground Wire

Start cable 1000 mm.

Black, Dart

Elastic Stop Nut M6

Flat Washer 6 mm

Elastic Stop Nut M6

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Battery | Includes 900 to 900a

Battery Bolt Kit

Starter Relay

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Lock Washer Serrated M6

Ground Wire

Hex. Flange Elastic Nut M6 x 1.0

Lock Washer Serrated M6

Battery Wire

Elastic Stop Nut M6

Protector Cap

Aluminium Coated Fiberglass Tube
