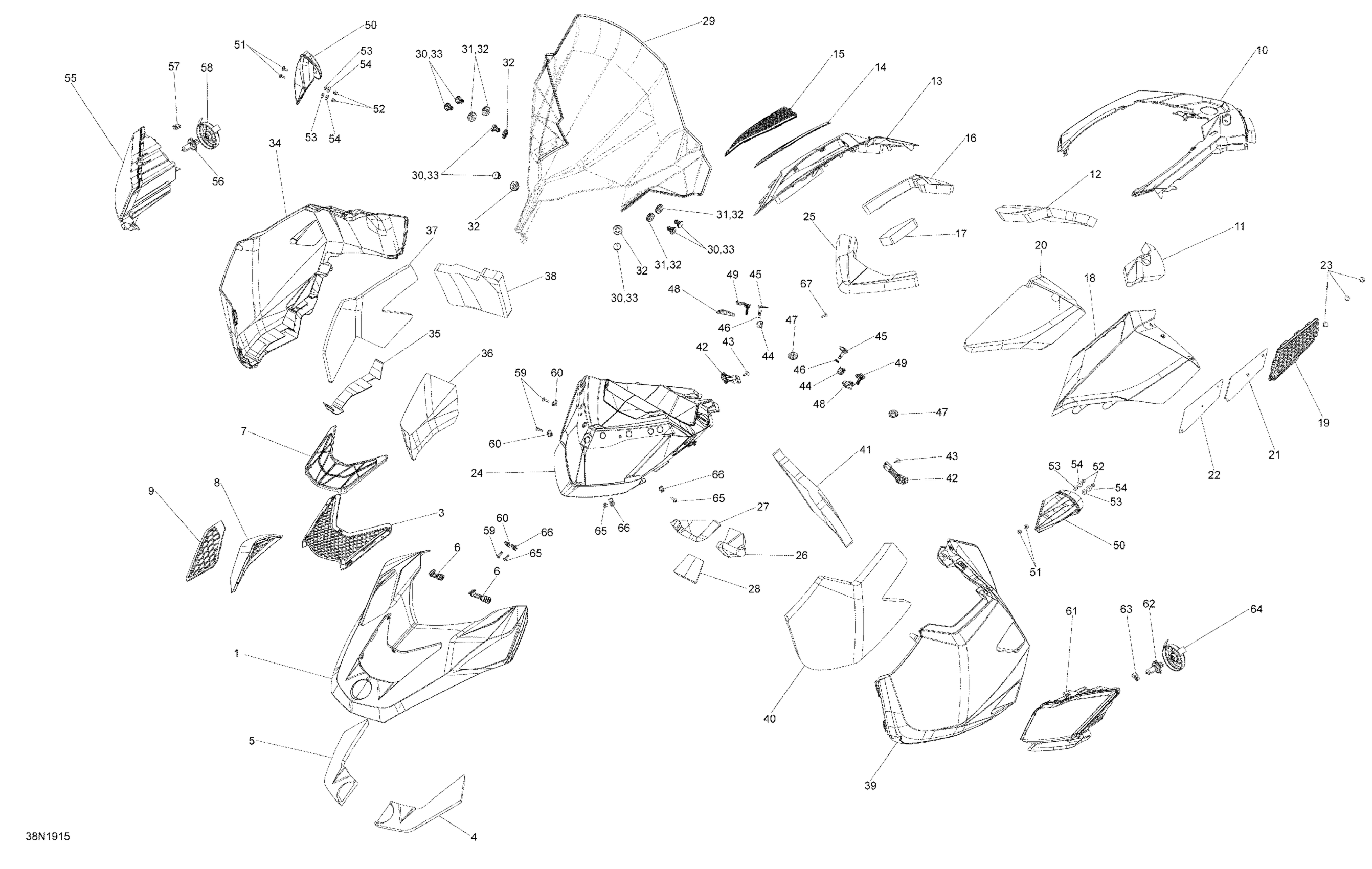

Ski-Doo 007 - EXPEDITION LE-SE 1200 4-TEC, 2019 09- Hood Diagram

#

Description
Price

1

Hood | Viper Red

517304810

$264.99

1

Hood | Squadron Green

517305846

$309.99

1

Hood | Sunburst Yellow

517306789

$309.99

3

Hood Grille

517304843

$88.99

4

Insulator

517304330

$36.99

5

Insulator

517304214

$31.99

6

Latch Pannel

517304289

$11.49

8

Scoop Grille

517306980

$37.99

10

Console | Package LE

517305611

$144.99

10

Console | Package SE

517305612

$144.99

11

Insulator

517305644

$38.99

12

Insulator

517304318

$48.99

13

RH Side Access Panel | Viper Red

517304831

$309.99

13

RH Side Access Panel | Squadron Green

517305848

$254.99

13

RH Side Access Panel | Sunburst Yellow

517306791

$309.99

14

RH Access Panel Grille

517304015

$36.99

15

RH Lower Acces Grille

517304016

$31.99

16

Insulator

517304311

$61.99

17

Insulator

517305987

$31.99

18

LH Side Access Panel | Viper Red

517304841

$309.99

18

LH Side Access Panel | Squadron Green

517305850

$254.99

18

LH Side Access Panel | Sunburst Yellow

517306793

$254.99

19

LH Access Panel Grille

517303893

$36.99

20

Insulator

517304313

$61.99

21

Insulator

517305311

$14.49

22

Grille plate

502007312

$31.99

23

Black, Dart

414644300

$0.98

24

Indicator Support

517304272

$179.99

25

Insulator

517304314

$62.99

26

Insulator

517304315

$31.99

27

Insulator

517304316

$31.99

28

Insulator

517304319

$31.99

29

Windshield Ass'y

860201000

$209.99

32

Grommet

517303756

$4.09

33

Button

517304744

$2.19

34

Black, RH Side Panel

517306970

$249.99

35

Aluminium Foil

517306504

$19.99

36

Aluminium Foil

517306505

$22.49

37

Aluminium Foil

517306506

$26.99

38

RH Rear Foam

517304310

$60.99

39

Black, LH Side Panel

517306973

$219.99

40

LH Foam

517303891

$52.99

41

LH Rear Foam

517304309

$60.99

42

Latch-Panel

517304572

$11.99

43

Pop Rivet 3/16”

293150108

$1.19

44

Handle Fastener Quarter-Turn

517304297

$16.99

45

Quarter-Turn Handle

517304296

$16.99

46

Locking Plate

517304538

$4.59

47

Side Panel Support | Except Package SWT

517304497

$19.99

48

End Piece Latch

517304075

$4.69

49

Latch-Panel

517306057

$24.49

50

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

51

Torx Truss Screw M6 X 16

250000721

$1.69

52

Domed Nut M6

232361493

$2.11

53

Rubber Washer 5 mm

250200024

$2.19

54

Washer

20117

$6.39

55

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

56

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

57

Cap

515176498

$12.99

58

Rubber Cap Protector

219800280

$19.49

59

Torx Screw M6 X 20

250000722

$1.68

60

Panel Nut M6 X 1.0

250100198

$2.11

61

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

62

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

63

Cap

515176498

$12.99

64

Rubber Cap Protector

219800280

$19.49

65

Torx Screw M6 X 20

250000722

$1.68

66

Panel Nut M6 X 1.0

250100198

$2.11

67

Rivet | Except Package SWT

293150211

$2.19
