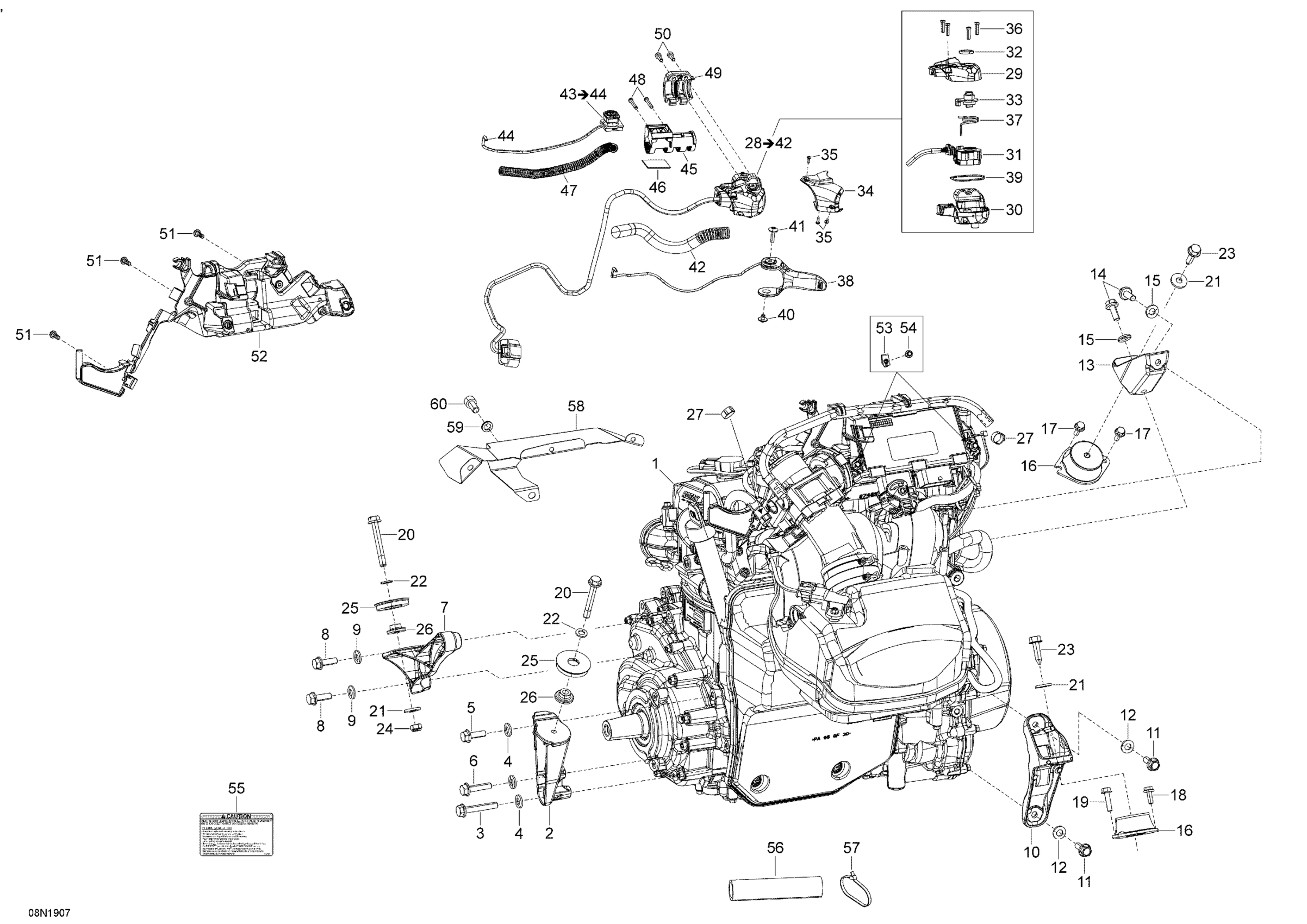

Ski-Doo EXPEDITION LE-SE 1200 4-TEC, 2019 Engine - 1200 4-TEC Diagram

#

Description
Price

2

Rear Support, PTO

512060591

$48.99

3

Hex. Flange Screw M8 X 50

250001030

Unavailable

4

Conical Spring Washer M8

250200146

$1.01

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

6

Hex. Flange Screw M8 X 35

250000986

$2.11

7

Front Support, PTO

512060593

$29.99

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

9

Conical Spring Washer M8

234281474

$1.48

10

Rear Support, MAG

512060594

$31.99

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

12

Conical Spring Washer M8

234281474

$1.48

13

Front Support, MAG

512060596

$31.99

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

15

Conical Spring Washer M8

234281474

$1.48

16

Rubber Mount

512060729

$65.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Hex. Flange Screw M6 X 25

207562544

$1.69

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

21

Yellow, Washer

503183200

$3.19

22

Flat Washer With Teflon 8 mm

250200008

$3.80

23

Cone Screw, M8 X 30

250000257

$1.89

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Stopper This part replaces 512060244.

512061202

$19.49

26

Spacer

512060285

$19.99

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

29

Handle Ass'y kit

415130047

$104.99

30

Cap

512060862

$13.49

31

Torx Screw M2.9 x 9.5

250000623

$3.17

32

Torx Screw

250000671

$1.01

33

Screw

512060961

$11.60

34

Torx Screw M5 X 20

250000528

$2.11

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

45

Switch Support

512061453

$9.28

46

Friction Tape

294000973

$11.49

47

Protector Tube

515177946

$4.59

48

Torx Screw #8-18

250000263

$1.04

49

Front Housing

512060987

$8.57

50

Torx Screw M5 X 14

250000632

$7.51

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

52

Module Support

512061012

$16.33

53

Panel Nut M5 X 0.8

250000958

$4.23

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

55

Caution Decal, Oil Level

516005521

Unavailable

56

Aluminium coated fiberglass tube - Call your local BRP dealership

39065

Unavailable
