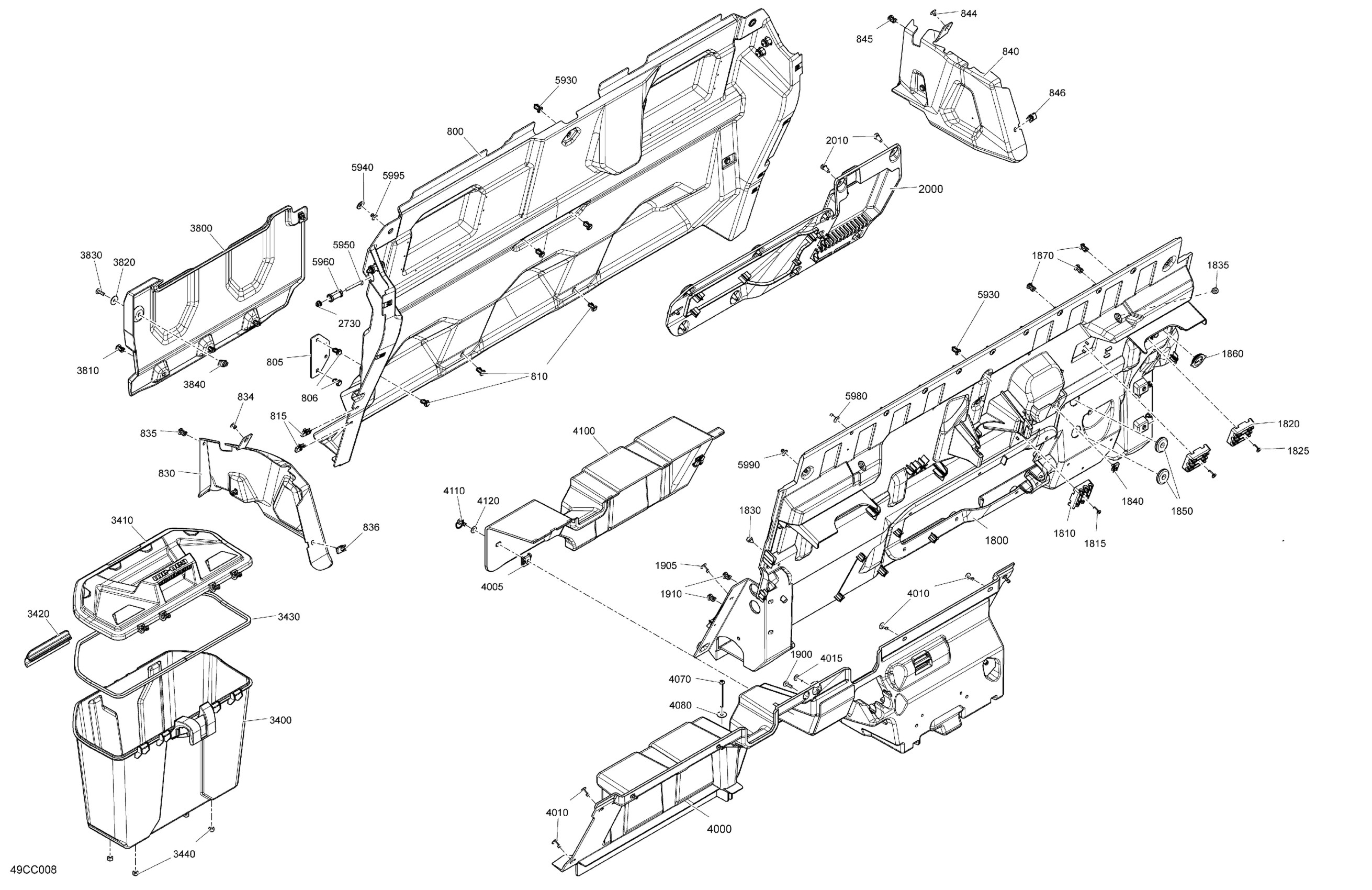

Can-Am Defender MAX HD10 - XMR - 2023 Cab Interior - Back Wall Diagram

#

Description
Price

800

Central Rear Body Panel Deflector Kit

715008394

$273.85

805

Plate

707900469

$27.58

806

Tuflok Plastic Rivet

293150230

$1.21

810

Tuflok Plastic Rivet

293150230

$1.21

811

Washer

503192494

$3.01

815

Panel Nut M6 X 1.0

250100198

$1.73

830

LH Lower Panel

707900994

$73.85

834

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

835

Tuflok Plastic Rivet

293150230

$1.21

836

Panel Nut M6 X 1.0

250100198

$1.73

840

RH Lower Panel

707900995

$73.85

844

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

845

Tuflok Plastic Rivet

293150230

$1.21

846

Panel Nut M6 X 1.0

250100198

$1.73

1800

Rear Upper Cab Panel Kit

715008401

$422.36

1800a1

Cage Warning Label

704908188

Unavailable

1800a2

Rear Upper Cab Panel

707900715

$374.60

1810

Hose Support

707900788

$0.82

1815

Torx Screw K50 X 16

250000720

$1.39

1820

Hose Support

707900788

$0.82

1825

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1835

Rubber Bumper

293830005

$5.33

1840

Panel Nut M6 X 1.0

250100198

$1.73

1850

Grommet

293720119

$4.04

1860

Plug

293000125

$1.03

1870

Tuflok Plastic Rivet

293150230

$1.21

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Pop Rivet 3/16"

293150100

$1.04

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Rear Access Cover

707900742

$75.34

2010

Torx Screw M6 X 20

250000712

$1.74

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.54

3400

Storage Box

715003314

$101.17

3410

Storage Box

715003314

$101.17

3420

Clip | Outlander Max

269501945

$14.90

3430

Neoprene Seal

293250453

$14.92

3440

Rubber Bumper

293830005

$5.33

3800

Rear Panel

707900996

$88.78

3810

Tuflok Plastic Rivet

293150230

$1.21

3820

Flat Washer M6.6 X 22

250200162

$1.91

3830

Torx Screw M6 X 20

250000722

$1.34

3840

Panel Nut M6 X 1.0

250100198

$1.73

4000

Rear Lower Cab Panel

707901074

$196.99

4005

Quarter Turn Nut

705002651

$3.84

4010

Pop Rivet 3/16"

293150100

$1.04

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$81.31

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$3.90

5930

Tuflok Plastic Rivet

293150230

$1.21

5940

Flat Washer 8 mm, Nylon

292001663

$1.18

5950

Torx Truss M6 X 50

250000868

$1.74

5960

Spacer

707900470

$2.06

5980

Pop Rivet 3/16"

293150100

$1.04

5990

Pop Rivet 3/16"

293150103

$0.52

5995

Pop Rivet 3/16" | DS 650 X

293150104

$0.86
