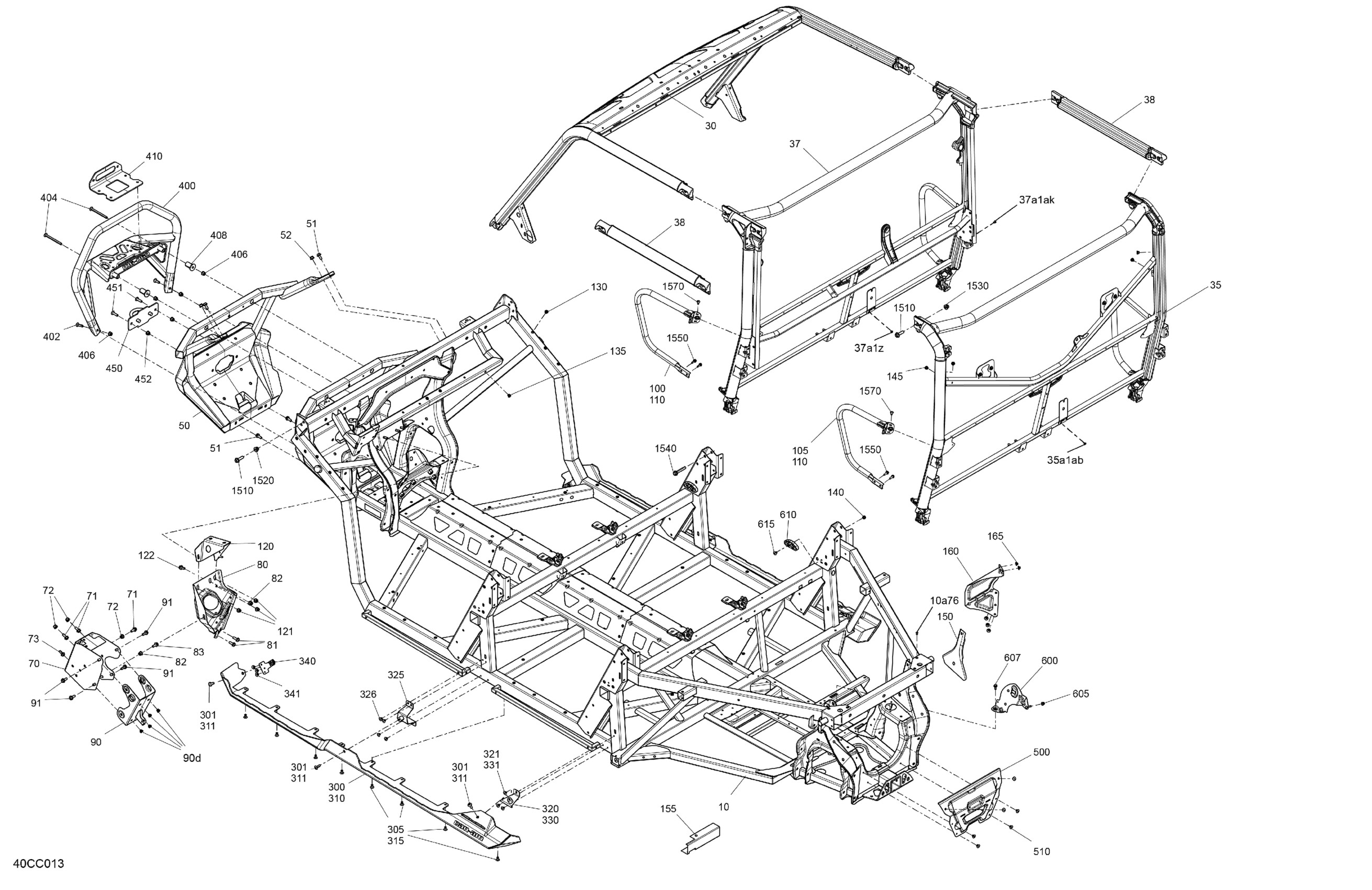

Can-Am Defender MAX HD10 - XMR - 2023 Frame - System Diagram

Deep Black, Chassis Kit

715009071

$2,589.99

Pop Rivet 3/16"

390402200

$0.26

Front Cage Service Kit

715008358

$649.99

Liquid Titan, Front Cage Service Kit | Model Liquid Titan

715008360

$649.99

Rear Cage Service Kit | Includes 35 to 35a1ab

715009063

$649.99

Rear Cage Service Kit | Model Liquid Titan

715009065

$649.99

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Central Cage | Includes 37 to 37a1ak

715009115

$649.99

Liquid Titan, Central Cage | Model Liquid Titan

715009116

$649.99

Pop Rivet 3/16"

390402200

$0.26

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Cage Extension

705209848

$41.99

Liquid Titan, Cage Extension | Model Liquid Titan

705210411

$42.99

Deep Black, Front Bumper

705207588

$493.25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Elastic Flange Nut M8

233281416

$1.25

Module Support

705209388

$50.72

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Power Steering Support

705208741

$63.40

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20

207682044

$0.92

Steering Column Support | Includes 90 to 90d

705209190

$33.55

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Deep Black, LH Guard

705210921

$40.27

Deep Black, LH Rear Guard

705210929

$40.27

Deep Black, RH Guard

705210930

$41.01

Support

705208742

$27.58

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20

207682044

$0.92

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Heat Shield

705014849

$2.59

Heat Shield

705015496

$2.59

Heat Shield

707002709

$46.24

Pop Rivet 3/16"

293150103

$0.52

Deep Black, LH Guard Panel

705208715

$274.60

Torx Truss M8 X 25

250000874

$1.74

Pop Rivet 3/16”

293150108

$1.19

Deep Black, RH Guard Panel

705208716

$274.60

Torx Truss M8 X 25

250000874

$1.74

Pop Rivet 3/16”

293150108

$1.19

LH Rock Slider Support

705206342

$41.01

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Support Guard

705207220

$18.63

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

RH Rock Slider Support

705206343

$40.27

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Front Guard Support

705208661

$4.81

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Magma Red, Front Bumper

705210151

$441.01

Deep Black, Front Bumper

715006143

$344.00

Torx Screw M8 X 30

250000886

$1.74

Torx Truss M/S M8 x X 100

250001106

$5.53

Hex. Elastic Flange Nut M8

233281416

$1.25

Spacer

705207754

$11.72

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$52.21

Can-Am Red, Front Tow Hook

705211623

$26.84

Torx Screw M8 X 30

250000886

$1.74

Hex. Elastic Flange Nut M8

233281416

$1.25

Rear Chassis Reinforcement

705207753

$30.57

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Voltage Regulator Support

710007522

$15.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Spacer

705208203

$17.13

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Hex. Flange Screw M10 X 35

250000855

$1.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M10 X 6

207606046

$3.38

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Torx Truss M6X14

250000789

$4.41
