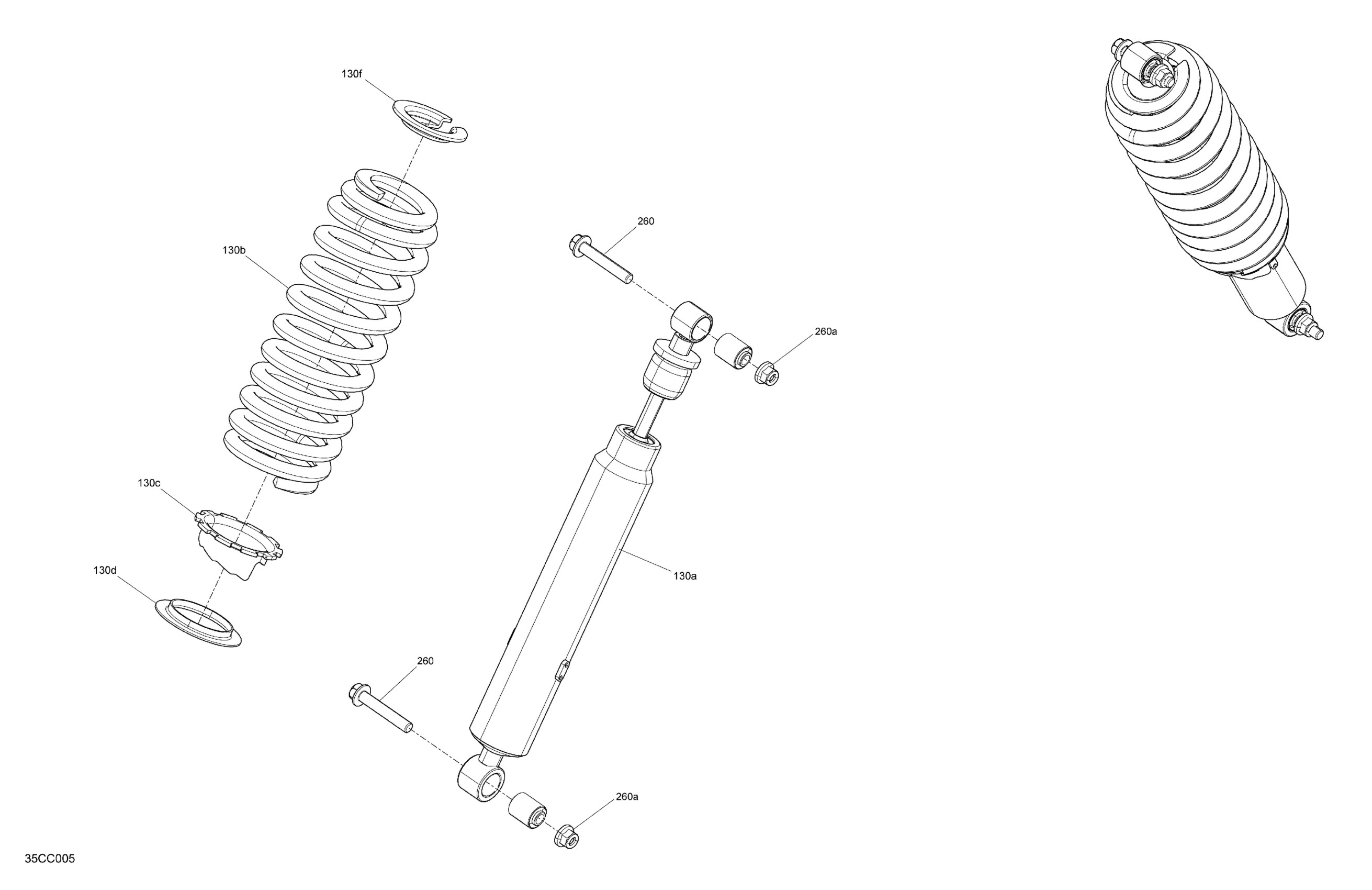

Can-Am Defender MAX HD10 - XMR - 2023 Suspension - Front Shocks Diagram

#

Description
Price

61

Hex. Flange Elastic Nut M10

233201436

$1.74

130a

Shock Absorber

706204863

$188.78

130b

Deep Black, Compression Spring

706205287

$132.81

130b

Magma Red, Compression Spring

706205294

$115.64

130c

Adjustment Ring

706000910

$13.45

130d

Protector Ring | STD, XT

706000911

$6.73

130f

Spring Cup

706001894

$13.78

260

Hex. Flange Screw M10 X 6

207606046

$3.38

260a

Hex. Flange Elastic Nut M10

233201436

$1.74
