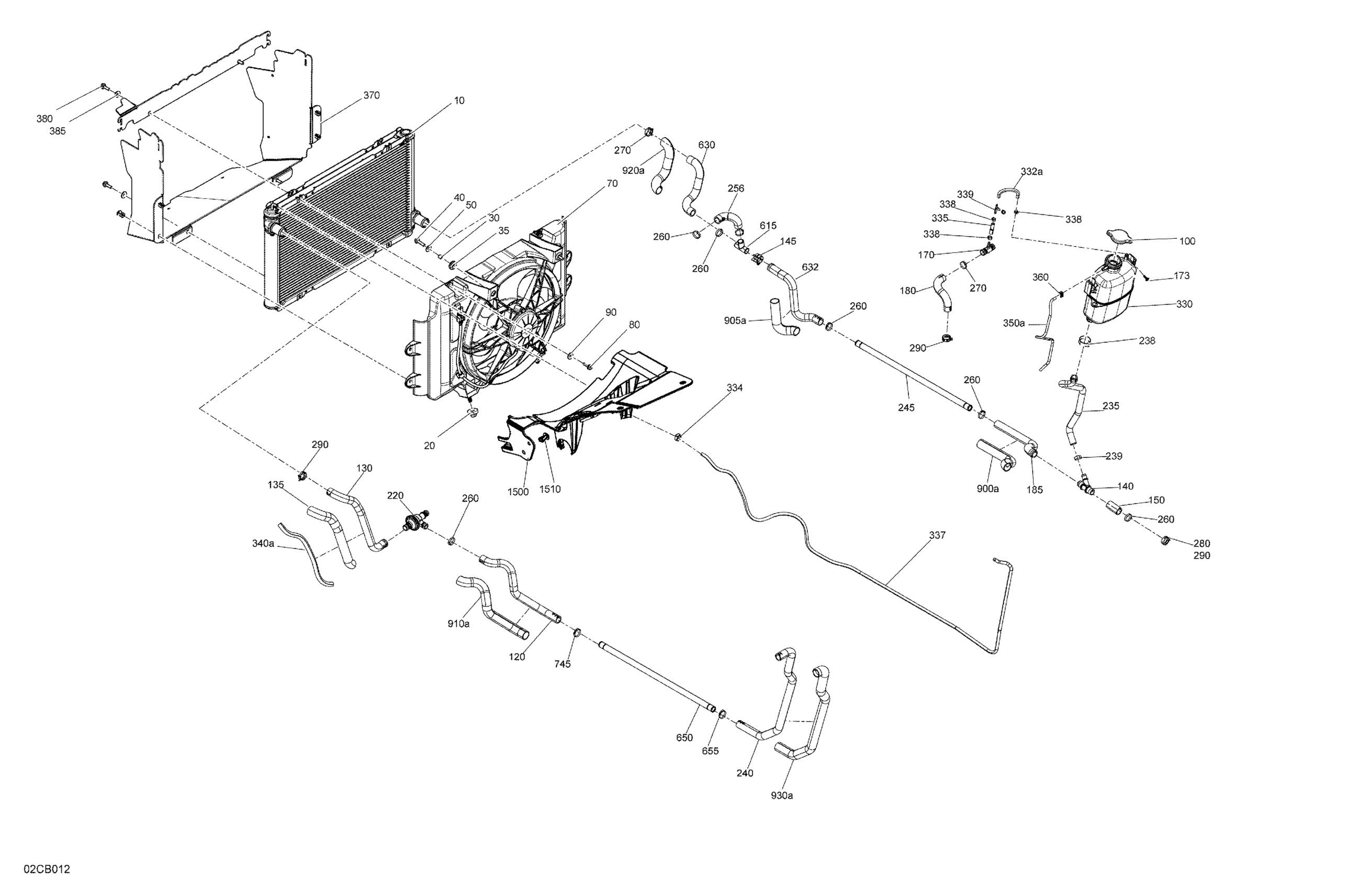

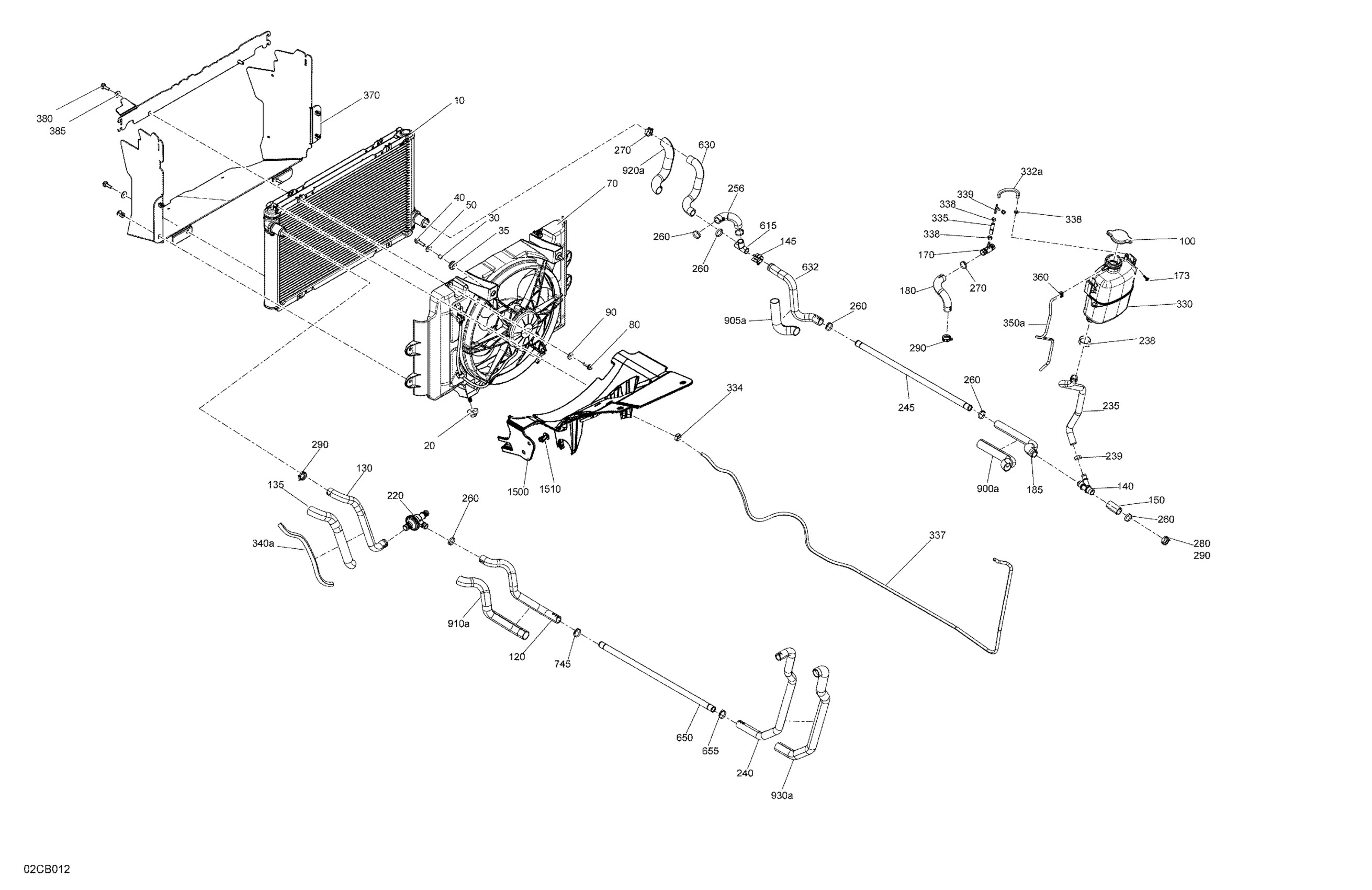

Can-Am Defender MAX HD10 - XMR (8PNA-B) - 2022 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$359.97

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$323.05

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

120

Hose

709201028

$23.05

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.52

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.92

170

T-Fitting

509000510

$11.52

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709200915

$41.51

185

Hose

709200971

$41.51

220

Thermostat Housing

709200986

$92.28

235

Hose Coolant Tank Out

709201103

$36.89

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Hose

709200969

$36.89

245

Heater Tubing

709200658

$13.98

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$7.37

270

Norma Spring Clamp

293650166

$4.28

280

Norma Spring Clamp

293650166

$4.28

290

Norma Spring Clamp

293650166

$4.28

330

Coolant Tank

709201323

$78.43

332a

Was 415129508 Bleeder Hose

219704416

$11.83

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.43

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340a

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350a

Polyurethane Hose

293830193

Unavailable

360

Spring Clamp

414554800

$0.83

370

Radiator Deflector Kit

715008385

$87.66

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

615

T-Fitting

509001313

$15.35

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Hose Radiator Out

709201029

$11.06

650

Heater Tubing

709200658

$13.98

655

Gear Clamp

509000162

$7.37

745

Gear Clamp

509000162

$7.37

900a

Tubing 35 mm

515176260

Unavailable

905a

Tubing 35 mm

515176260

Unavailable

910a

Tubing 35 mm

515176260

Unavailable

920a

Tubing 35 mm

515176260

Unavailable

930a

Tubing 35 mm

515176260

Unavailable

1500

Front Air Deflector

709201036

$99.97

1510

Tuflok Plastic Rivet

293150230

$1.21
