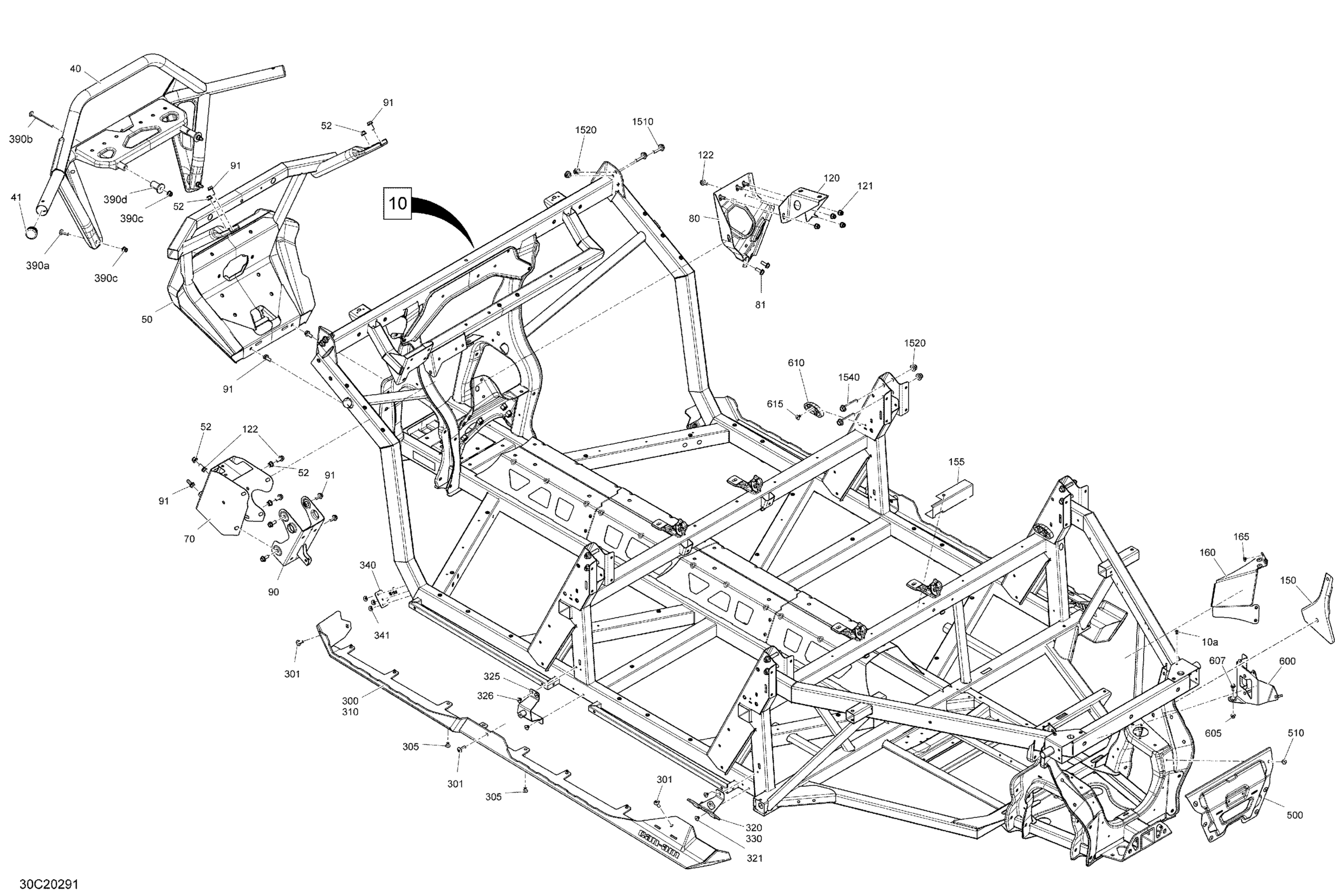

Can-Am Defender MAX HD10 - Except XMR - 2020 Frame Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

$2,589.99

10a

Pop Rivet 3/16"

390402200

$0.35

40

Deep Black, Front Bumper

715005754

$351.49

41

Cap

705202455

$5.69

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Module Support

705208747

$55.99

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

120

Support

705208742

$30.99

121

Hex. Flange Elastic Nut M8

233281414

$1.47

122

Hex. Flange Screw M8 X 20

207682044

$1.15

150

Heat Shield

705014849

$2.59

155

Heat Shield

705015496

$2.59

160

Heat Shield

707002717

$51.99

165

Pop Rivet 3/16”

293150092

$3.09

300

Deep Black, LH Guard Panel

705208715

$276.49

301

Torx Truss M8 X 25

250000874

$2.11

305

Pop Rivet 3/16”

293150108

$1.19

310

Deep Black, RH Guard Panel

705208716

$276.49

320

LH Rock Slider Support

705206342

$45.99

321

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

325

Support Guard

705207220

$22.99

326

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

330

RH Rock Slider Support

705206343

$45.99

340

Front Guard Support

705208661

$5.39

341

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

390a

Torx Screw M8 X 30

250000886

$2.11

390b

Torx Truss M/S M8 x X 100

250001106

$7.97

390c

Hex. Flange Elastic Nut M8

233281414

$1.47

390d

Spacer

705207754

$14.49

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support | Base

710006644

$18.99

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1540

Hex. Flange Screw M10 X 6

207606046

$4.12
