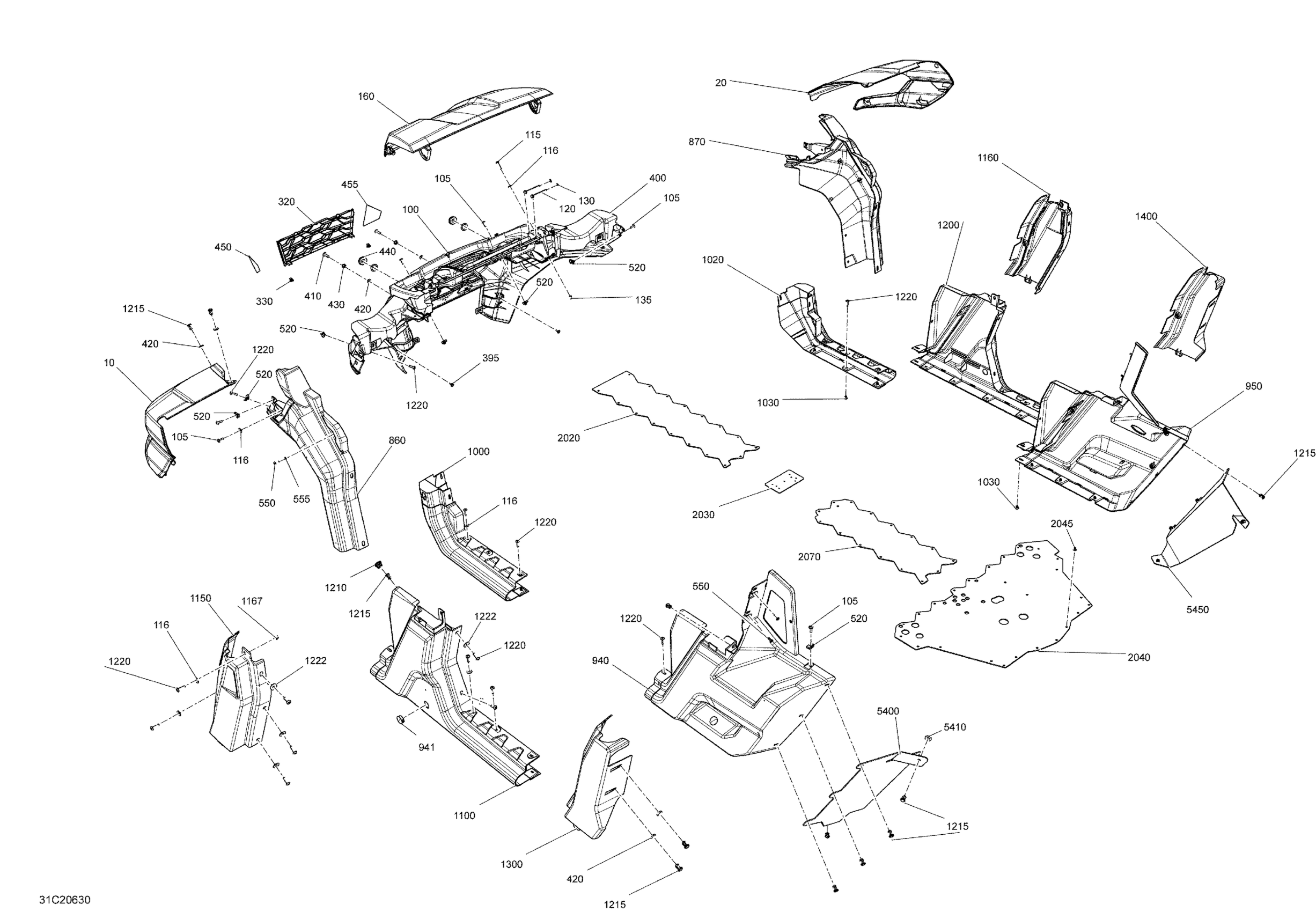

Can-Am Defender MAX HD10 - Except XMR - 2020 Body - Asphalt Grey - Lone Star Edition Diagram

#

Description
Price

10

Asphalt Grey, LH Front Fender

705016418

$184.30

20

Asphalt Grey, RH Front Fender

705016421

$184.30

100

Multi Purpose Support

705013766

$39.52

105

Torx Screw M6 X 20

250000722

$1.54

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

116

Stainless Steel Flat Washer

234062670

$2.00

120

Hex. Flange Screw M6 X 75

207667554

$4.15

130

Push Nut

732610072

$1.97

135

Bushing

293900125

$2.69

160

Asphalt Grey, Front Hood

705016424

$337.28

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$3.30

400

Deep Black, Front Fascia

705013591

$206.69

410

Torx Screw M8 X 30

250000886

$2.00

420

Washer

503192494

$3.01

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

520

Panel Nut M6 X 1.0

250100198

$1.99

550

Torx Screw K50 X 16

250000720

$1.60

555

Flat Washer M5

234051670

$2.00

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

940

Deep Black, LH Rear Body Panel

705013658

$99.22

941

Black, Nylon Cap

414916600

$4.19

950

Deep Black, RH Rear Body Panel

705013659

$99.22

1000

Deep Black, LH Central Panel

705019037

$64.15

1020

Deep Black, RH Central Panel

705019038

$67.13

1030

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705013660

$99.22

1150

LH Middle Cage Cover

705010601

$35.04

1160

RH Middle Cage Cover

705010602

$35.04

1167

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1200

RH Middle Side Panel

705013661

$99.22

1210

Insert

707900133

$2.89

1215

Tuflok Plastic Rivet

293150230

$1.39

1220

Torx Truss Screw M6 X 25

250000807

$2.00

1222

Flat Washer M6.6 X 22

250200162

$2.19

1300

LH Rear Cage Cover Kit

715003564

$73.85

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

2020

Central Skid Plate

705009151

$52.96

2030

Connection Plate

705010884

$28.33

2040

Rear Skid Panel

705017205

$139.52

2045

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2070

Rear Central Skid Plate

705010588

$57.43

5400

LH Rear Deflector

705016336

$46.24

5410

Flat Washer 8 mm, Nylon

292001663

$1.36

5450

RH Rear Deflector

705016337

$46.24
