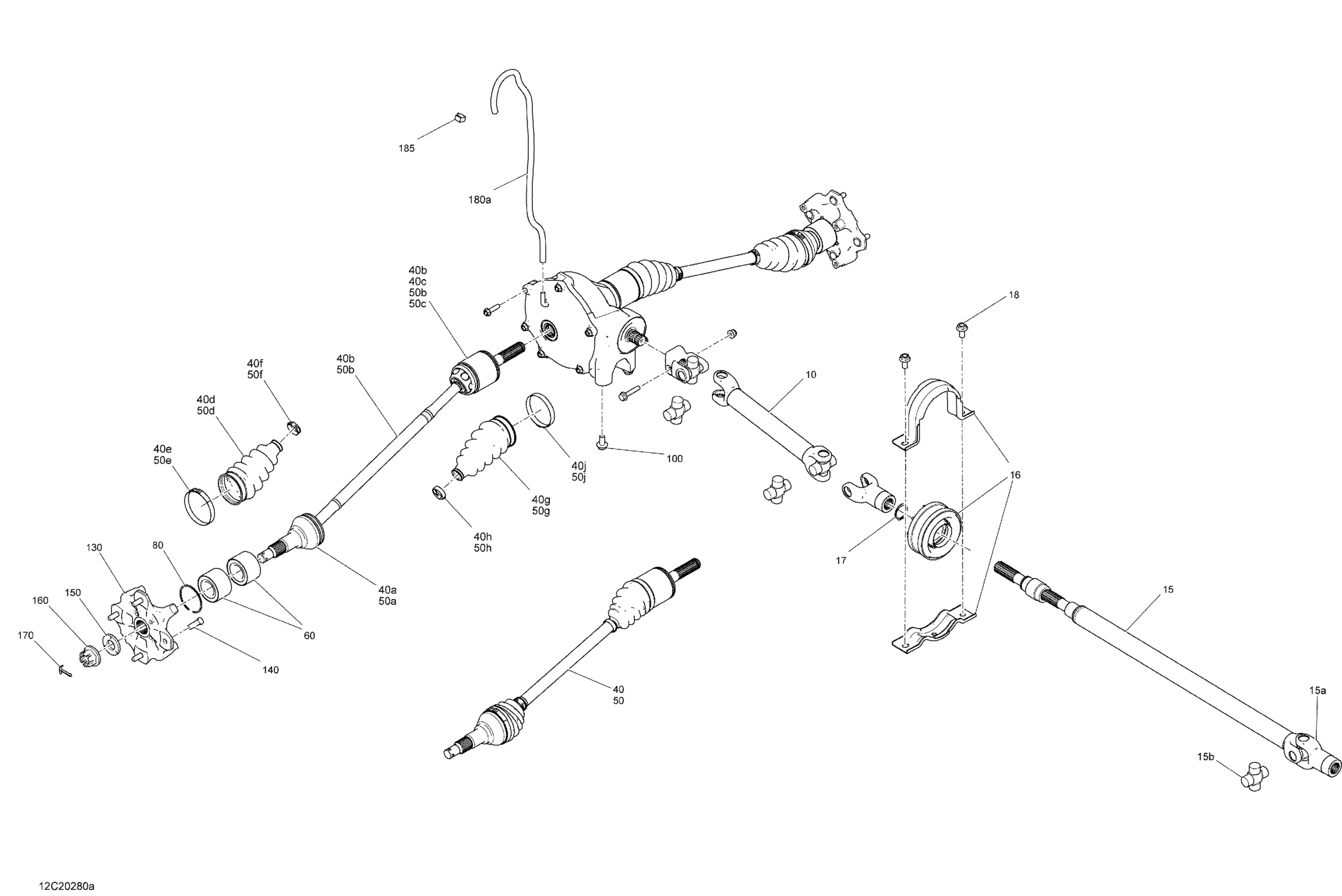

Can-Am Defender MAX HD10 - Except XMR - 2020 Front Drive - Common Parts - DPS - XT Diagram

#

Description
Price

10

Axle Ass'y

705402125

$243.49

15

Drive Axle Ass'y | Includes 15 to 15b

705403287

$328.49

15a

Yoke

715900401

$35.99

15b

J-Joint Cross Kit

715900402

$89.99

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

RH CV Joint | Includes 40 to 40f2

705402407

$243.99

40a

Exterior CV Joint

715900621

$259.49

40b

RH Plunging Joint

715900441

$275.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40e

Oetiker Clamp

715900282

$5.29

40f

Oetiker Clamp, Small

715900283

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

40h

Oetiker Clamp, Small

715900261

$5.29

40j

Oetiker Clamp, Large

715900262

$10.33

50

LH CV Joint | Includes 50 to 50f2

705402408

$243.99

50a

Exterior CV Joint

715900621

$259.49

50b

LH Plunging Joint

715900442

$275.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50e

Oetiker Clamp

715900282

$5.29

50f

Oetiker Clamp, Small

715900283

$5.29

50g

Boot Kit, Différential Side

705401355

$42.49

50h

Oetiker Clamp, Small

715900261

$5.29

50j

Oetiker Clamp, Large

715900262

$10.33

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.11

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Clip

414227300

$1.67
