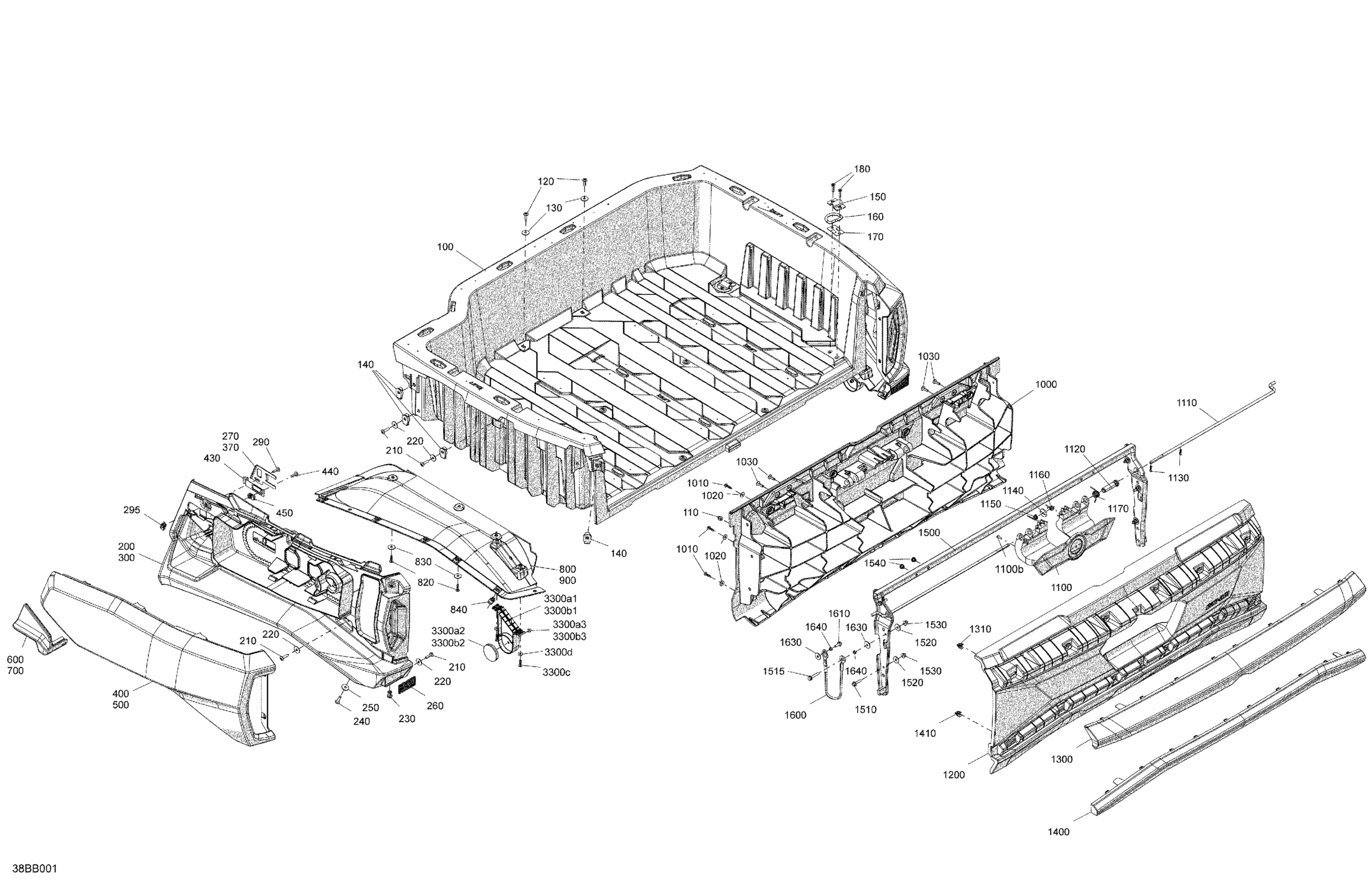

Can-Am Commander MAX 1000R EFI - DPS - 2022 Body - Cargo - Upper Section Diagram

#

Description
Price

100

Open Carrier Kit

715009860

$609.99

110

Rubber Bumper

293830005

$8.09

120

Torx Truss Screw M6 X 25

250000807

$2.11

130

Flat Washer M6.6 X 22

250200162

$2.32

140

Panel Nut M6 X 1.0

250100224

$2.11

150

Tie-Down Ring Bracket

708302992

$2.39

160

D-Ring

708302990

$4.29

170

Tie-Down Ring Spring

708302991

$2.39

180

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

200

LH Rear Mud Guard

705015041

$55.99

210

Torx Truss Screw M6 X 25

250000807

$2.11

220

Flat Washer M6.6 X 22

250200162

$2.32

230

Tuflok Plastic Rivet

293150230

$1.47

240

Torx Truss Screw M6 X 25

250000807

$2.11

250

Flat Washer M6.6 X 22

250200162

$2.32

260

Red Reflector

520001820

$20.99

270

LH Stop Plate

708303718

$4.19

290

Torx Screw M6 X 20

250000722

$1.68

295

Panel Nut M6 X 1.0

250100198

$2.11

300

RH Rear Mud Guard

705015042

$55.99

370

RH Stop Plate

708303719

$4.19

400

Tundra Green, LH Open Carrier Trim

708303382

$339.99

430

Latch

708303717

$8.39

440

Torx Screw M6 X 20

250000722

$1.68

450

Panel Nut M6 X 1.0

250100198

$2.11

500

Tundra Green, RH Open Carrier Trim

708303383

$339.99

600

LH Handle

708304070

$47.49

700

RH Handle

708304071

$47.49

800

LH Rear Wheel Arch Protector

705015482

$41.49

820

Torx Screw Truss Head K50X20 T20

250000760

$2.11

830

Flat Washer M6.6 X 22

250200162

$2.32

840

Panel Nut M6 X 1.0

250100198

$2.11

900

RH Rear Wheel Arch Protector

705015483

$44.49

1000

Tailgate Liner

708303573

$349.99

1010

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1020

Washer M5

250200025

$0.74

1030

Torx Screw M6 X 20

250000722

$1.68

1100

Tailgate Handle Ass'y | Includes 1100 to 1100b

708303703

$24.49

1100b

Torx-Truss Pt K40 X 16

250000759

$2.11

1110

Latch Rod

708303590

$14.49

1120

Bushing Hinge

708304564

$3.39

1130

Hairpin Cotter

269800431

$1.29

1140

Washer

708301653

$2.61

1150

Spring

705009470

$13.49

1160

Spring

705009471

$13.49

1170

Spring

705009468

$5.99

1200

Exterior Tailgate Panel

708303389

$129.99

1300

Tundra Green, Upper Tailgate Trim

708303390

$284.99

1310

Clip

517306478

$1.09

1400

Tundra Green, Lower Tailgate Trim

708303391

$284.99

1410

Clip

517306478

$1.09

1500

Male Panel Hinge

708303996

$139.99

1510

Hex. Flange Screw M6 X 25

207662554

$1.48

1515

Hex. Flange Screw M6 X 35

207663554

$2.11

1520

Flat Washer M6.6 X 22

250200162

$2.32

1530

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1540

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1600

Cable

708301491

$31.99

1610

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1630

Flat Washer M6.6 X 22

250200162

$2.32

1640

Bushing

708300737

$5.99

3300a1

reflector Support

708303716

$19.99

3300a2

Red, Reflector

705016982

$14.49

3300a3

Elastic Flange Nut M5

233251494

$2.11

3300b1

reflector Support

708303716

$19.99

3300b2

Red, Reflector

705016982

$14.49

3300b3

Elastic Flange Nut M5

233251494

$2.11

3300c

Torx Screw Truss Head K50X20 T20

250000760

$2.11

3300d

Flat Washer

234052450

$2.11
