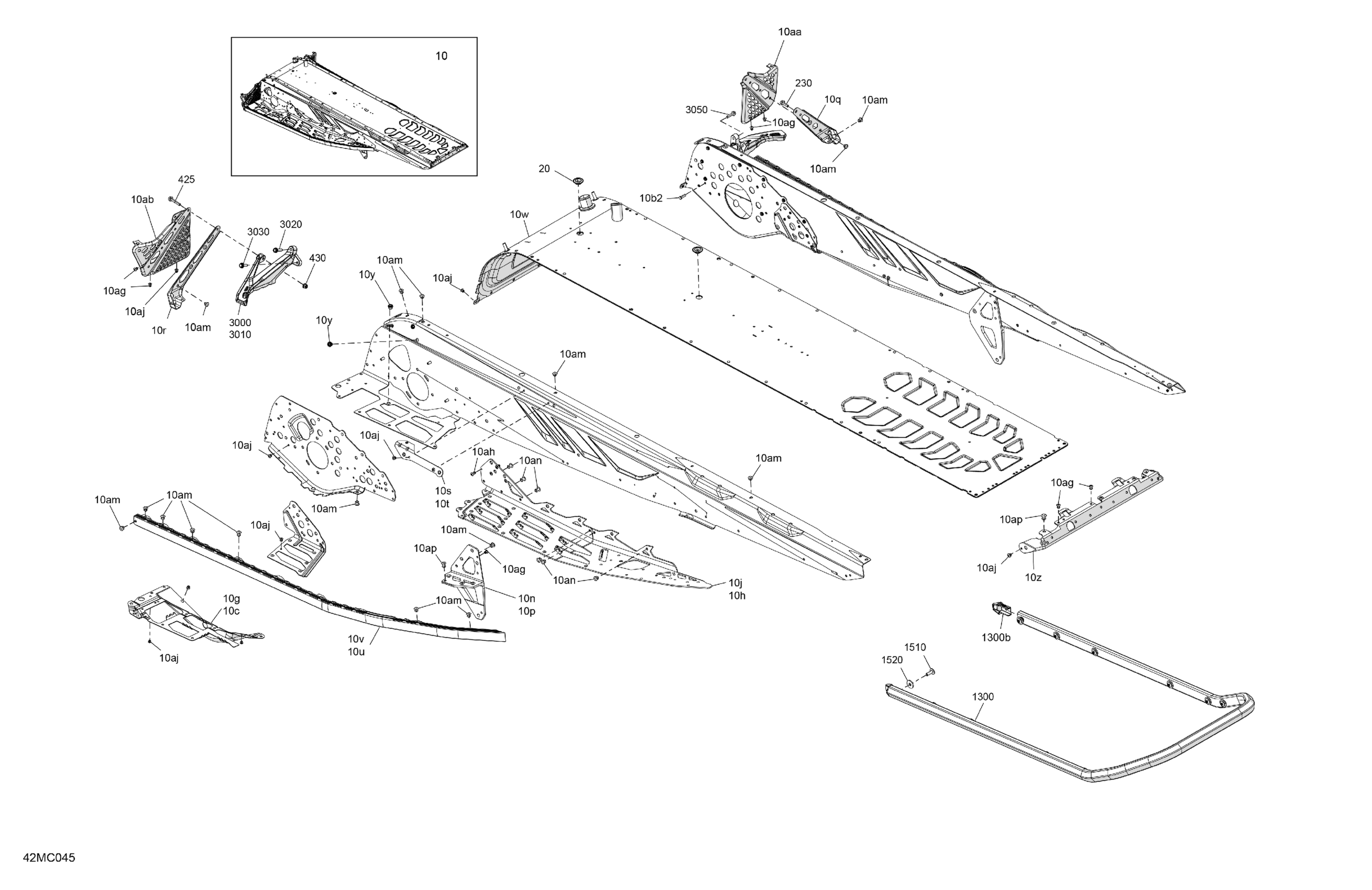

Ski-Doo BACKCOUNTRY 154 850 E-TEC - XRS - (UZPR) - 2023 Frame - System - Rear Section Diagram

Description

Price

Platinum Silver, Chassis Tunnel Module 154" | Includes 10 to 10ap

518334205

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

RH Footrest Reinforcement

518332578

$88.99

10g

LH Footrest Reinforcement

518332577

$88.99

10h

RH Footrest

518332922

$42.99

10j

LH Footrest

518332923

$42.99

10n

LH Rear Suspension Support

518334394

$45.99

10p

RH Rear Suspension Support

518334395

$94.99

10q

Stirrup Reinforcement

518334507

$21.99

10r

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10s

LH Under Chassis Reinforcement

518331744

$18.99

10t

RH Under Chassis Reinforcement

518331745

$19.99

10u

RH Roller

518329023

$194.99

10v

LH Roller

518329024

$194.99

10w

Radiator Tunnel 154 Ass'y

518334491

$709.99

10y

Clinch Nut M6 Hexsert

605636003

$4.23

10z

Rear Cap

518328990

$22.49

10aa

RH Footrest

518333006

$40.99

10ab

LH Footrest

518333007

$40.99

10ag

Avex Rivet

390909100

$0.30

10ah

Rivet Hucklok

293150163

$2.99

10aj

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
