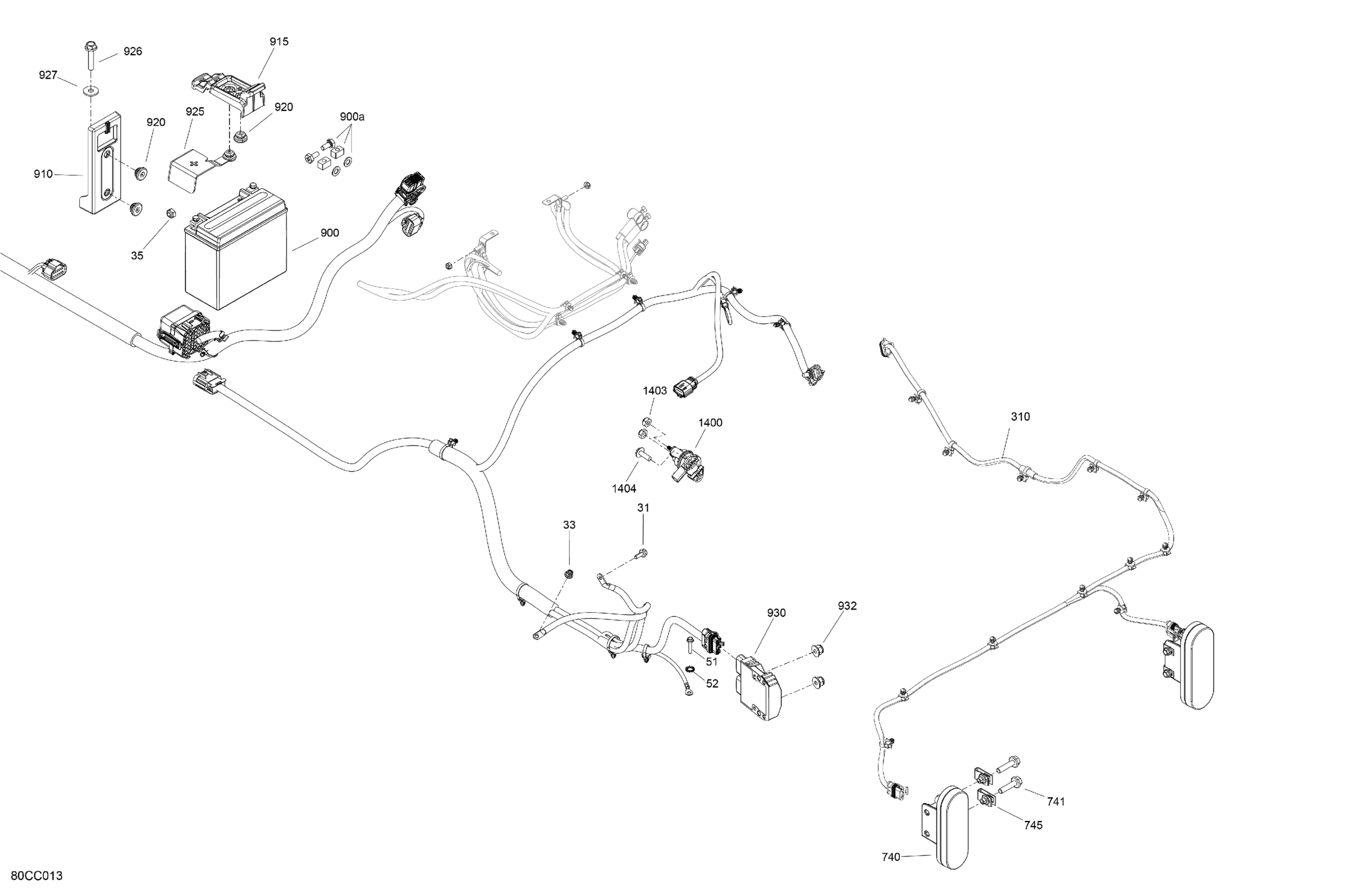

Can-Am 006 - Traxter 6X6 HD10 - DPS - CE, 2023 08- Electric - Rear Section Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Rear Wiring Harness

710006500

$119.99

Tail Light

710004497

$111.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$159.48

Battery Bolt Kit

250000282

$7.29

Washer | Not Shown

710009082

$1.29

Screw | Not Shown

710009084

$1.59

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Stopper Rubber

705014429

$5.95

Battery Cable Cap

710006471

$2.59

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

Flat Washer 6 mm

234062410

$0.77

Voltage Regulator

710005842

$189.99

Hex. Flange Elastic Nut M6

233261494

$1.58

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
