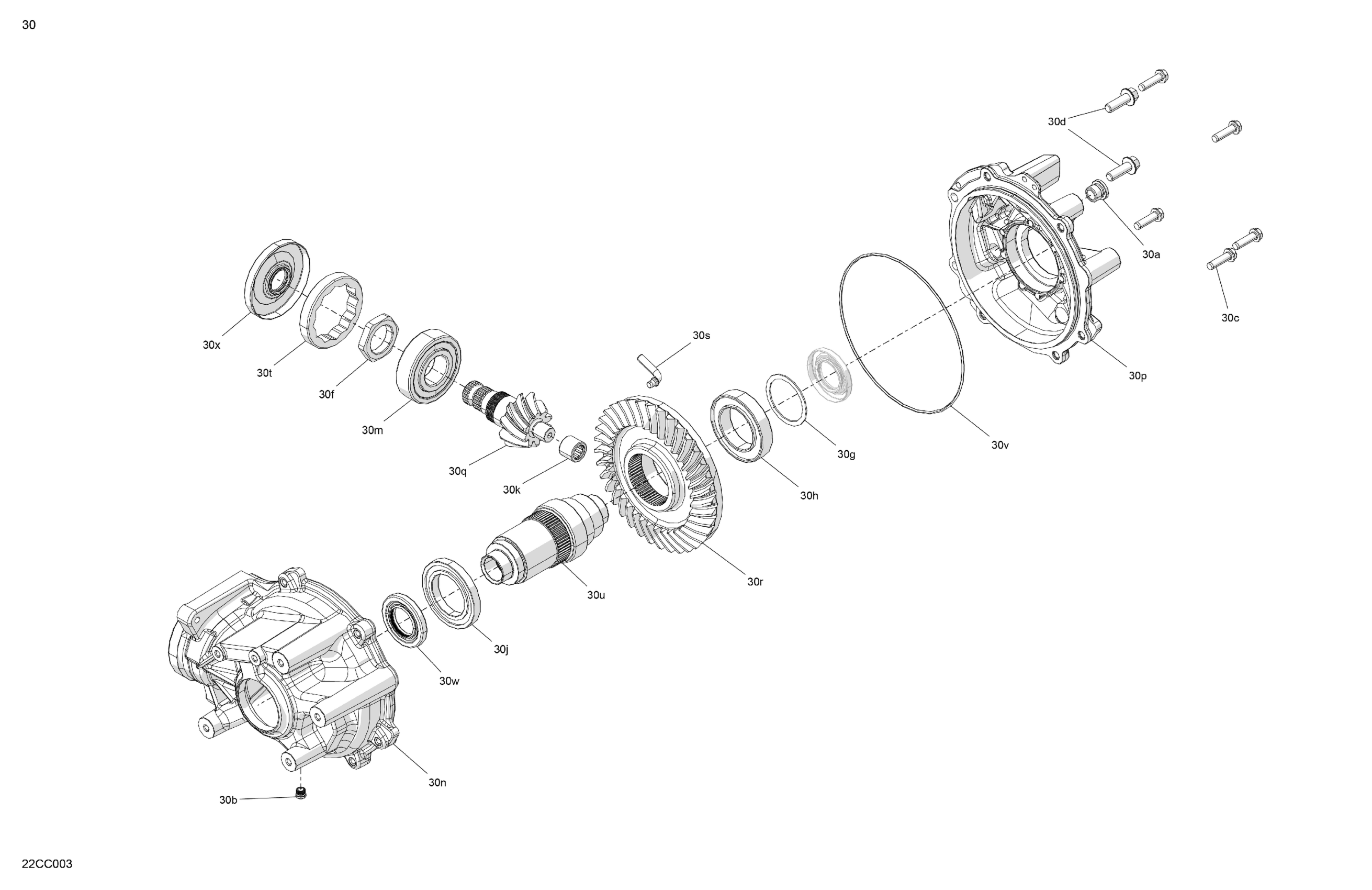

Can-Am Traxter 6X6 HD10 - DPS - CE, 2023 Drive - Final Drive Unit Diagram

Description

Price

Rear Differential Ass'y | Includes 30 to 30x

705503731

$1,568.49

30a

Fill Level Plug

705501889

$20.49

30b

Fill Level Plug M10

715900563

$27.49

30c

Bolt

705501886

$7.69

30d

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30f

Nut

715900737

$32.99

30g

Shim

715900740

$37.99

30h

Ball Bearing

715900741

$40.49

30j

Ball Bearing

715900742

$28.49

30k

Needle Bearing

705501874

$73.99

30m

Ball Bearing

715900782

$67.99

30n

Case

715900839

$312.49

30p

Cover

715900841

$204.99

30q

Pinion, 10T Spiral

715900746

$132.49

30r

Ring Gear 36T Spiral

715900747

$299.99

30s

Vent Valve

705401935

$16.49

30t

Nut

705501882

$36.99

30u

Hub

715900748

$132.49

30v

O-Ring

715900749

$12.11

30w

Oil Seal

715900531

$26.49

30x

Seal

715900751

$42.49
