Partiron

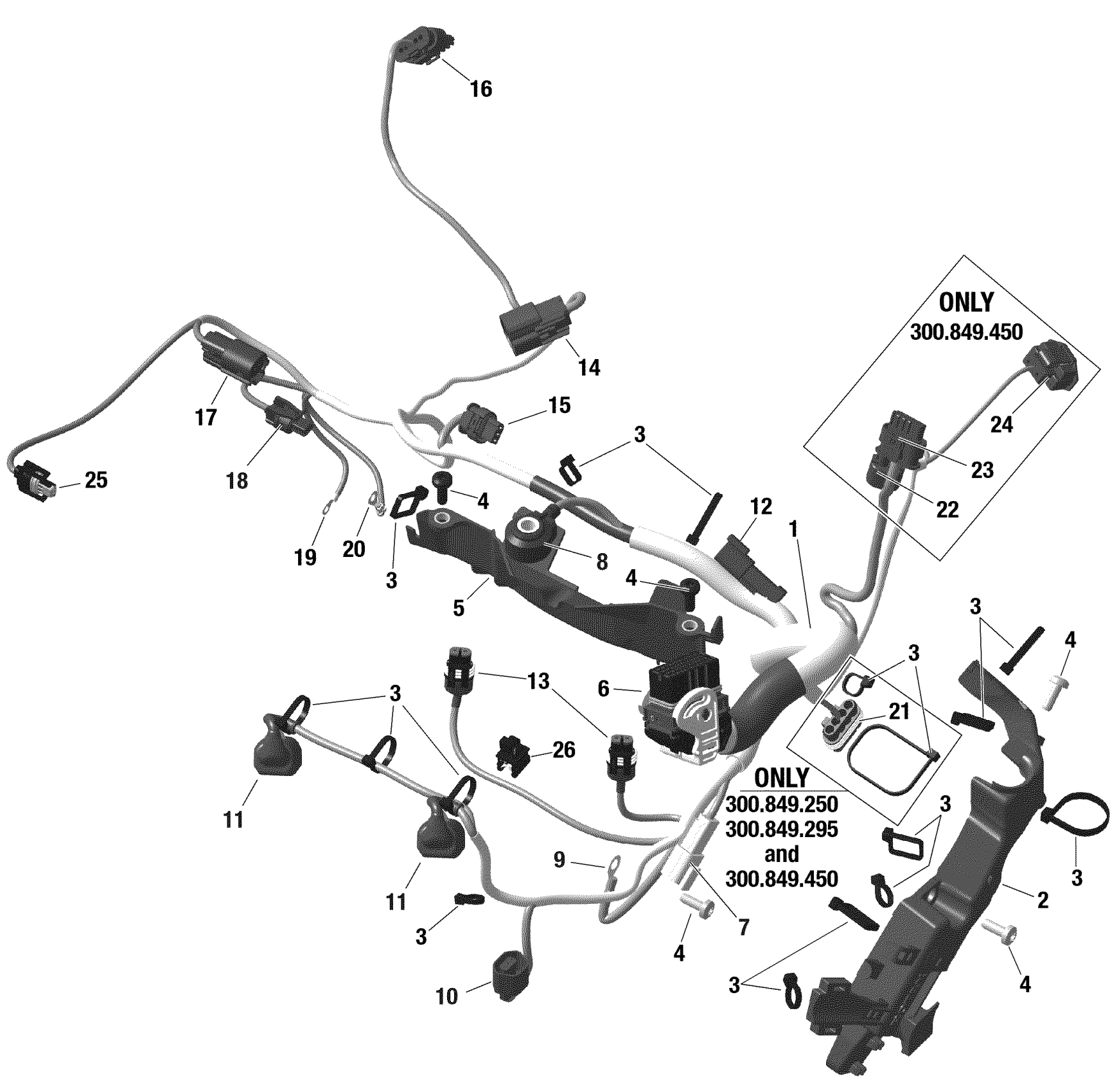

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Electric - Engine Harness - 849 Diagram

#

Description
Price

1

Engine Harness

420864459

$286.12

2

Harness Support

420260155

$16.89

3

Tie Rap

420651397

$0.98

4

Tie Wrap 142 mm

293750002

$0.88

5

Torx Screw M6 X 16

420640324

$2.06

6

Harness Support

420260159

$10.52

7

Male Housing, 2 Circuits

409206900

$8.98

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Connector | Except Latina America

415130195

$24.58

11

Female Housing

515176129

$28.43

12

Male Housing, 2 Circuits

409206900

$8.98

13

Female Housing, 2 Circuits

409209500

$13.48

14

Coil Connector

515178202

$12.88

15

Not Available As Spare Parts

XXX

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Connector 2 Pins with CPA

710005827

$23.05

18

Female Housing, 2 Circuits

515177192

$6.32

19

Not Available As Spare Parts

XXX

Unavailable

20

Ring Terminal

515175504

$7.48

21

Female Housing, 4 Circuits

409209700

$12.97

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Housing Connector, 3 Circuits

278001830

$34.58

25

Female Terminal Housing

515176890

$11.14

26

Tie-Rap With Mount

420651810

$5.92
