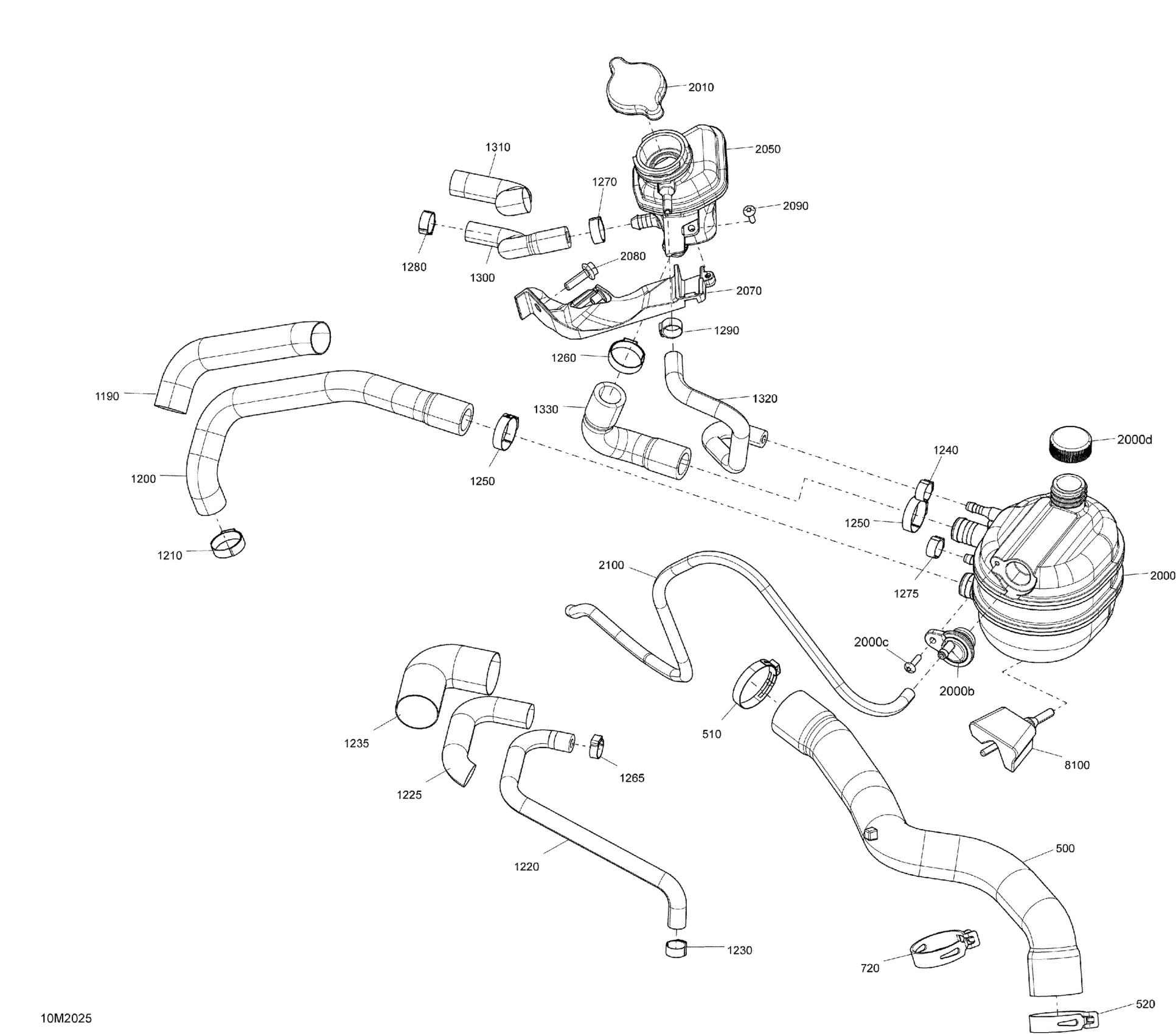

Ski-Doo 006 - SUMMIT 850 E-TEC Turbo - North America, 2020 02- Engine - Cooling - 850 ETEC Turbo Diagram

Description

Price

500

Cooling Hose

509001089

$24.99

510

Oetiker Gear Clamp

293650254

$3.79

520

Norma Spring Clamp

293650264

$4.44

720

Norma Spring Clamp

293650264

$4.44

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001141

$23.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Cooling Hose

509001098

$11.49

1225

Protector Tube

509001243

$13.22

1230

Oetiker Clamp

293650046

$2.89

1235

Protector Tube

707001349

$20.99

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1260

Oetiker Clamp

509001041

$2.09

1265

Crimp Clamp, 15.3-706R

293650047

$3.29

1270

Oetiker Clamp | Europe

293650030

$5.19

1275

Oetiker Clamp

293650046

$2.89

1280

Oetiker Clamp

293650140

$2.69

1290

Oetiker Clamp

293650046

$2.89

1300

Cooling Hose

509001266

$24.99

1310

Protector Tube

509001243

$13.22

1320

Hose

509001132

$19.99

1330

Cooling Hose

509001238

$11.60

2000

Coolant Tank Ass'y | Includes 2000 to 2000d

509001292

$92.99

2000b

Check Valve

513033849

$36.99

2000c

Truss Torx Screw K40 X 16

250000918

$2.11

2000d

Tank Cap

709200855

$5.50

2010

Radiator Pressure Cap

509000180

$20.49

2050

Filler Neck

509001131

$16.18

2070

Support

509001137

$6.39

2080

Hex. Flange Screw M6 X 20

207662046

$2.11

2090

Torx-Truss Pt K40 X 16

250000759

$2.11

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

8100

Rubber Support

509001171

$11.58
