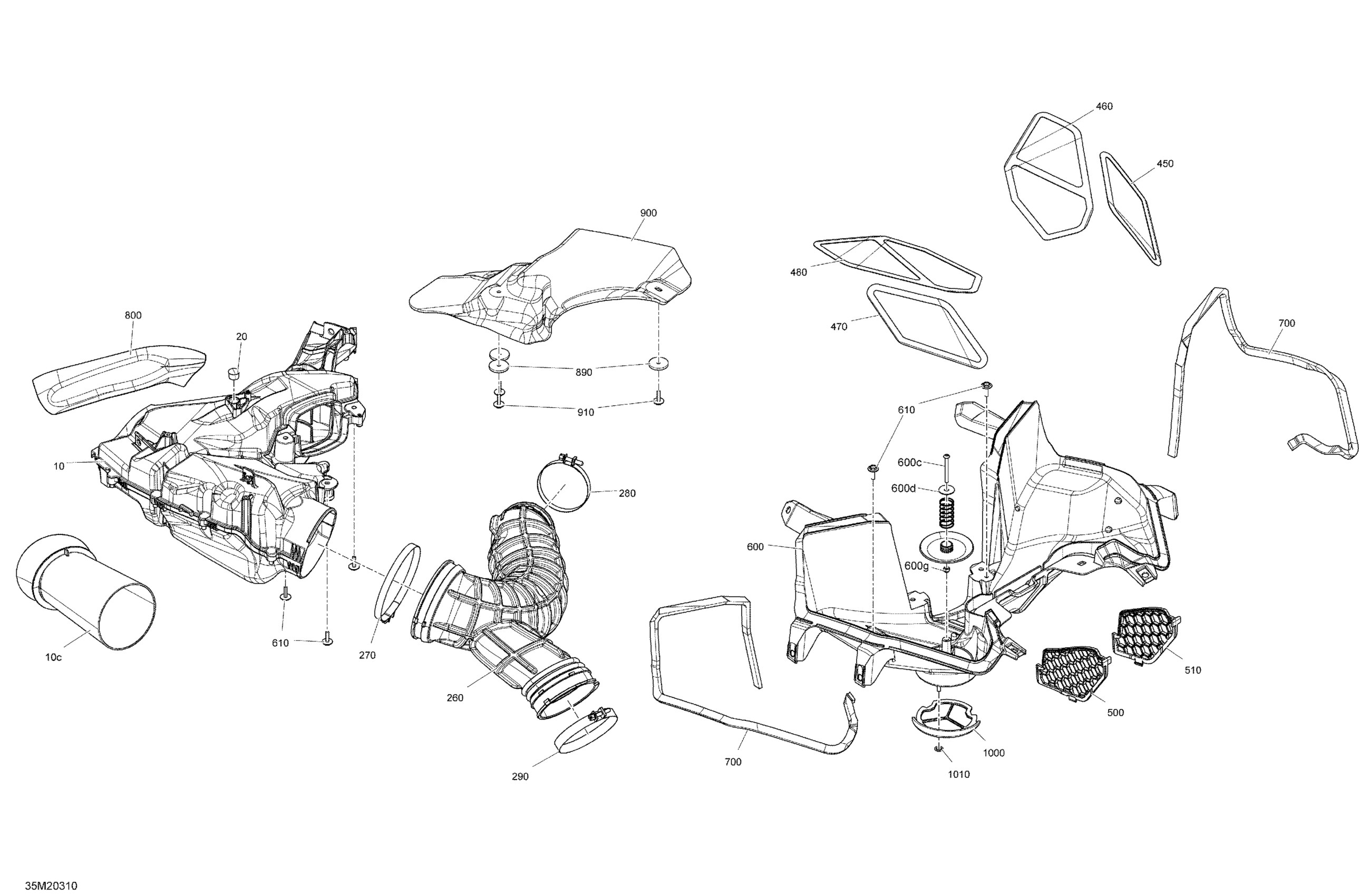

Ski-Doo 006 - SUMMIT 850 E-TEC Turbo - North America, 2020 02- Engine - Air Intake - Manifold Diagram

Description

Price

Secondary Intake Silencer Ass'y

508000948

$174.99

10c

Admission Tube

508000949

$14.99

Cap

572051500

$5.89

260

Intake Manifold Hose

508000954

$35.99

270

Gemi Clamp

293650247

$7.65

280

Gemi Clamp

508000369

$13.16

290

Gemi Clamp

293650152

$15.49

450

Air Filter

508001035

$39.99

460

Air Filter

508001040

$39.99

470

Air Filter

508001034

$39.99

480

Air Filter

508001038

$39.99

500

LH Protective Grille

508001049

$0.88

510

RH Protective Grille

508001050

$0.88

600

Air Duct Ass'y | Includes 600 to 600f

508000950

$81.99

600c

Socket Head Screw M4 X 40

205444056

$2.11

600d

Flat Washer

224060201

$1.26

600g

Elastic Stop Nut M4

232541414

$0.58

610

Screw M4 X 16

250000725

$3.49

700

Seal, 1PC = 3M

293830188

$39.99

800

Heat Shield

508001047

$2.19

890

Adhesive Patch

508001154

$2.09

900

RH Heat Shield

508000956

$52.99

910

Screw M4 X 16

250000725

$3.49

1000

Pop Off Filter

508000815

$6.99

1010

Push Nut

250100034

$1.29
