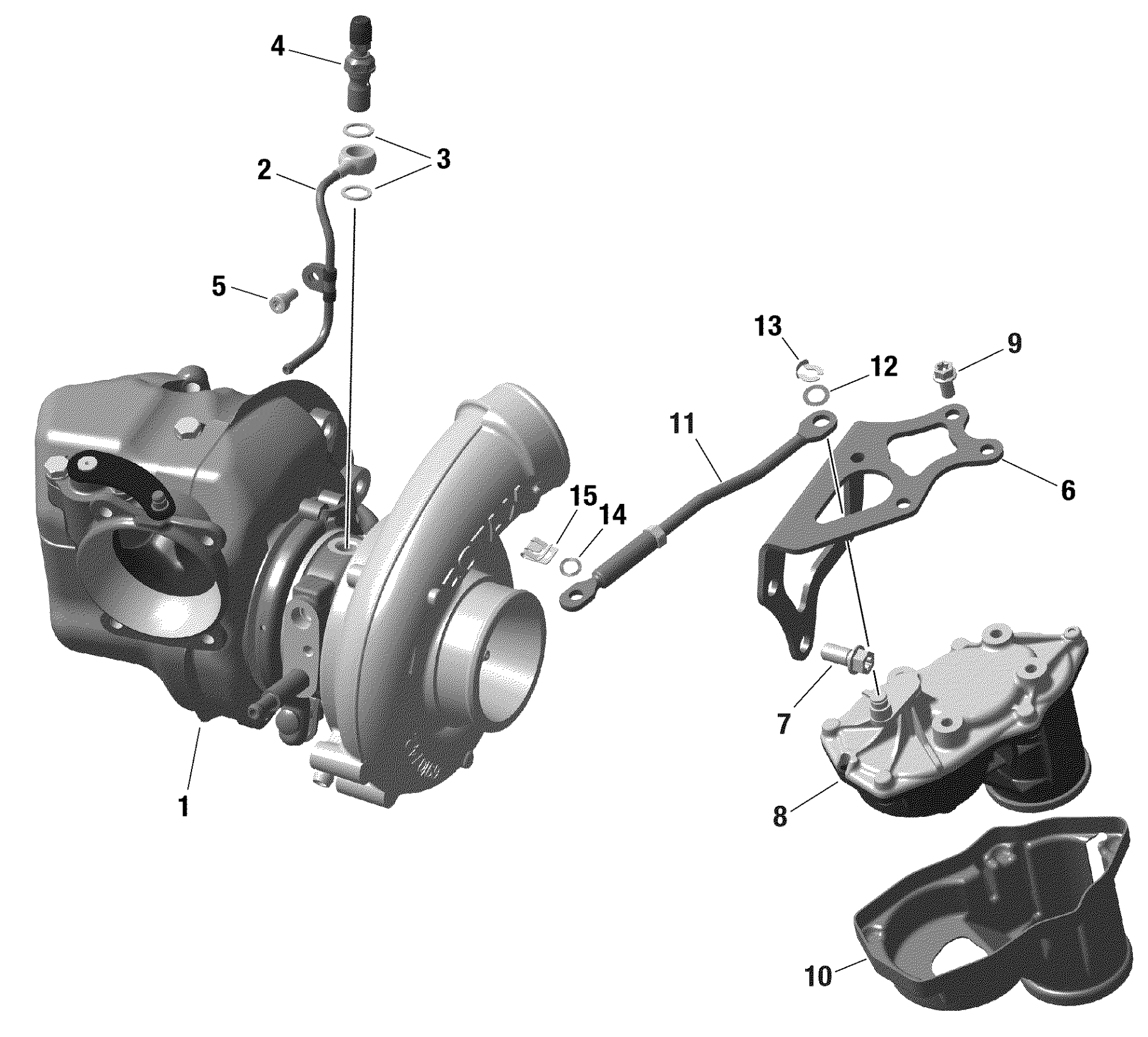

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Engine - Turbocharger - 849 Diagram

#

Description
Price

1

Turbocharger Ass'y

420893735

$1,814.15

2

Oil Line

420456452

$73.10

3

Oil Seal

420230154

$2.85

4

Bleeder Screw M10 X 1

420441630

$14.40

5

Allen Screw M5 X 10

420240692

$1.39

6

Support

420851735

$43.25

7

Torx Flange Screw M8 X 16

420440852

$3.88

8

Servo Motor Ass'y

420889432

$302.21

9

Hex. Flange Screw M6 X 12

420440149

$2.00

10

Heat Protection Mat

420975005

$13.76

11

Wastegate rod Ass'y

420971630

$23.85

12

Wave Shim 7.6/11.8/0.1

420945712

$3.01

13

Retaining Ring

420945710

$0.48

14

Wave Shim 6.4/9.8/0.1

420945713

$3.01

15

Circlip

420845000

$0.96
